A high-performance compact electric chain hoist that maximizes load ground clearance in confined spaces via its optimized body structure — built for monorail suspension, cantilever cranes and KBK systems that deliver dependable fixed-point lifting for assembly lines, single-station operations and wind power equipment maintenance.

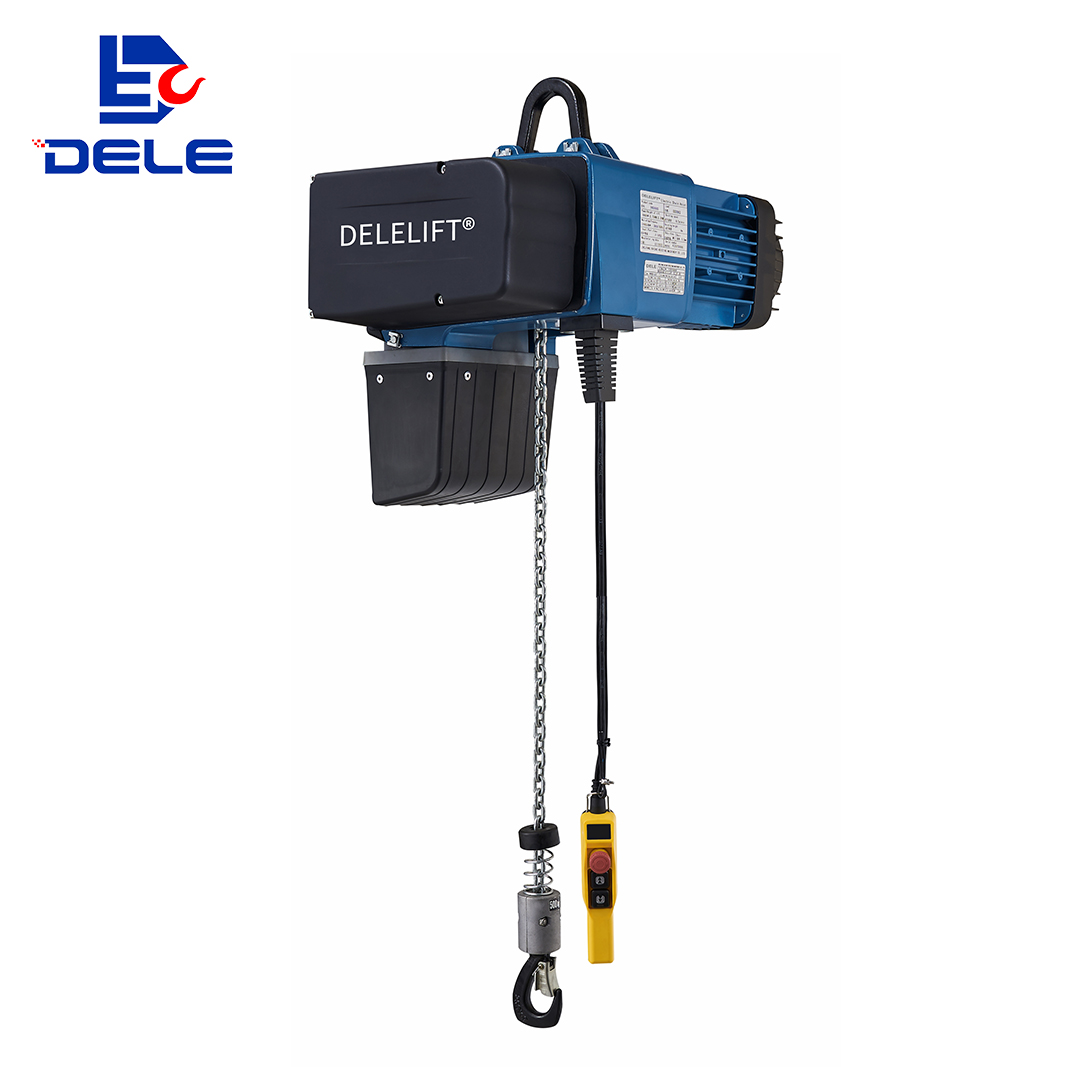

The DLDM series electric chain hoist features a compact optimized design, fitted with a high-performance motor, precision gear reducer and compact electronic control system, maximizing load ground clearance in confined spaces.
With rated capacities from 0.125t to 2t, standard lifting heights of 3m and 9m, and multiple speed options, it operates standalone or is compatible with monorail suspension, cantilever cranes and KBK systems, suitable for assembly lines, single-station handling and wind power equipment maintenance.
It supports a wide 220–460V 3-phase input voltage, with 36V standard safety control voltage (24V/48V optional), and can be configured with various intelligent control systems for customized operational requirements.
Equipped with a high-performance motor, precision reducer and compact electronic control system, the optimized body design achieves maximum load lifting height in limited installation space.
It can work independently or be integrated with monorail hanging, cantilever cranes, KBK rails and other lifting setups, covering scenarios from product assembly lines and single-station lifting to wind power equipment maintenance.
It supports a 220–460V optional 3-phase input voltage range, with 36V standard safety control voltage (24V/48V optional) to fit power specifications across different countries and regions.
Various intelligent control systems can be matched to different working scenarios, fully addressing the personalized operational needs of diverse users.
Not every lifting job requires horizontal travel or specialized low-headroom construction. Where a load is lifted and lowered at one fixed station — a workbench, a single assembly point, a wind power maintenance bay — a hook-suspended hoist does the job at lower cost and with less to maintain than a trolley-mounted or low-headroom unit. The DLDM fixed-type electric chain hoist is built for exactly that: dependable, fixed-point lifting.
Which model fits your job? If your ceiling clearance is limited, the DLDML low headroom hoist reclaims lift height in a compact body. If your load needs to travel along a beam or runway, the DLDM with push trolley adds manual horizontal movement, and the electric trolley model adds powered travel. If you just need straightforward fixed-point lifting, the DLDMH hook type is the simpler, more economical choice.
Compare: DLDM Electric Chain Hoist with Manual Trolley Compare: DLDMH Electric Chain Hoist Fixed Type
| Type | Capacity (Ton) | Lifting height(m) | Lifting speed (m/min) | Lifting Motor | ||||
| Power(kW) | Rotation speed(r/min) | Phases | Voltage (V) | Frequency (Hz) | ||||
| DLDMH0012501F | 0.125 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH002501F | 0.25 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH00301F | 0.3 | 3/9 | 13/3.2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH00501F | 0.5 | 3/9 | 8/2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH00502F | 0.5 | 3/9 | 4/1 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH00602F | 0.6 | 3/9 | 6.5/1.6 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH0102F | 1 | 3/9 | 4/1 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH0101F | 1 | 3/9 | 8/2 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 |
| DLDMH0202F | 2 | 3/9 | 4/1 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 |
All dimensions in mm
| Type | Capacity (Ton) | Unit(mm) | Chain Dia.x chain falls | |||||||||||
| H | H1 | A | B | D | D1 | E | I | K | L | M | N | |||
| DLDMH0012501F | 0.125 | 417 | 417 | 441 | 241 | 297 | 18 | 159 | Φ46 | Φ29 | 28 | 18.6 | 17 | Φ5.0x1 |
| DLDMH002501F | 0.25 | 417 | 417 | 441 | 241 | 297 | 18 | 159 | Φ46 | Φ29 | 28 | 18.6 | 17 | Φ5.0x1 |
| DLDMH00301F | 0.3 | 454 | 424 | 471 | 266 | 318 | 18 | 170 | Φ46 | Φ36 | 30 | 18.6 | 20 | Φ5.0x1 |
| DLDMH00501F | 0.5 | 454 | 432 | 471 | 266 | 318 | 18 | 170 | Φ46 | Φ36 | 30 | 18.6 | 20 | Φ5.0x1 |
| DLDMH00502F | 0.5 | 482 | 474 | 441 | 241 | 297 | 18 | 159 | Φ46 | Φ42 | 35 | 18.6 | 25 | Φ5.0x2 |
| DLDMH00602F | 0.6 | 505 | 481 | 471 | 266 | 318 | 18 | 170 | Φ46 | Φ42 | 35 | 18.6 | 25 | Φ5.0×2 |
| DLDMH0102F | 1 | 505 | 481 | 471 | 266 | 318 | 18 | 170 | Φ46 | Φ42 | 35 | 18.6 | 25 | Φ5.0x2 |
| DLDMH0101F | 1 | 542 | 547 | 569 | 308 | 348 | 27 | 183 | Φ60 | Φ42 | 35 | 24 | 25 | Φ7.1x1 |
| DLDMH0202F | 2 | 626 | 645 | 569 | 275 | 348 | 27 | 183 | Φ60 | Φ52 | 41 | 24 | 35 | Φ7.1×2 |
If the load only needs vertical lifting at a fixed station, the DLDM hook-suspended hoist is the simpler, more economical choice. For horizontal travel requirements, select a trolley-mounted model.
Choose from 0.125–2 ton capacities based on your heaviest rated load, plus an appropriate safety margin.
Select from standard 3 m and 9 m lifting heights, or specify a custom height to match your on-site working conditions.
Select from 220–460V power supply with 36V standard safety control voltage (24V/48V optional) to match your site's electrical standards.
Delivers stable vertical lifting with precise positioning, ideal for workbench assembly, equipment maintenance and stationary material handling.
No trolley mechanism ensures a compact structure with low failure rate, cutting both procurement and maintenance costs.
Hook-mounted design fits directly onto overhead hoists, jib cranes and fixed hangers without extra runways, enabling fast deployment.
Optimized structure minimizes footprint and maximizes effective lifting height in limited headroom and narrow workspaces.
Supports 220–460V 3-phase input with 36V standard safety control voltage (24V/48V optional), compatible with regional power standards.
Covers 0.125–2t capacities with multiple lifting heights and speeds, and can be equipped with intelligent control systems for custom demands.
What applications is it suitable for?
It is designed for fixed-point vertical lifting tasks, ideal for workbench assembly, equipment maintenance and single-station material handling scenarios.
What capacities does it come in?
The DLDMH series covers 0.125t, 0.25t, 0.3t, 0.5t, 0.6t, 1t and 2t per unit.
How does the safety mechanism work?
The hoist is fitted with overload protection, upper/lower lifting limit switches and emergency stop to prevent overloading and over-travel risks. It also adopts safety extra-low voltage control for operator safety.
What lifting heights are available?
Standard lifting heights are 3m and 9m, and customized lifting heights can be provided to match specific on-site working conditions.
What is it made of?
It is constructed with high-strength alloy steel lifting chain, heavy-duty cast aluminium body, and fitted with a robust top suspension hook.
