A high-performance hook-mounted electric chain hoist for stationary vertical lifting — built for assembly lines, equipment maintenance bays and workstation lifting systems that demand dependable fixed-point load handling, with rated capacities spanning 0.5 ton to 5 ton.

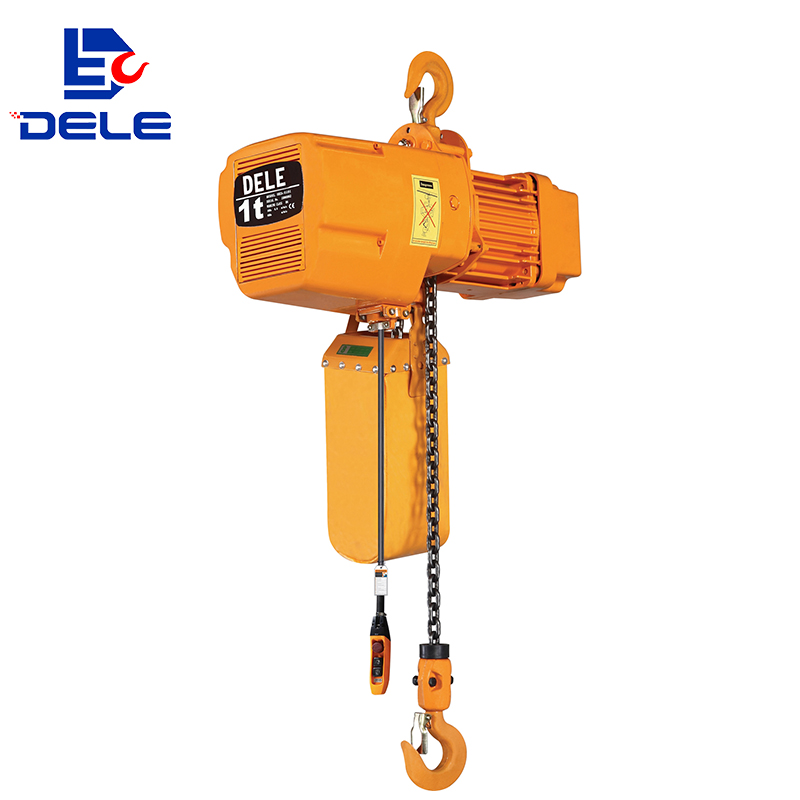

The DLED electric chain hoist features a compact integrated hoist body for vertical lifting. Available in capacities from 0.5 ton to 5 ton with a standard 3 m lifting height, it is widely used for workshops, warehouses and assembly lines where goods only need vertical lifting.
It has complete safety protection devices to guarantee stable and safe lifting operation.
Clutch, phase sequence protection, limit switch, magnetic brake and emergency stop ensure safer operation.
Japan FEC80 heat-treated alloy steel chain delivers high strength and durability.
24V, 36V, 48V and 110V control voltages are available for different applications.
Wireless remote control and overheat protection are available for convenient operation.
Not every lifting job needs low headroom design or powered trolley travel. Where a load is lifted and lowered at one fixed station — a workbench, a single assembly point, a maintenance bay — a hook-suspended hoist does the job at lower cost and with less maintenance than a trolley-mounted or low-headroom unit. The DLED is built for exactly that: dependable, fixed-point vertical lifting.
Which DLED model fits your job? If your ceiling clearance is limited, we can provide low headroom version to save headroom space in a compact body. If your load needs to travel along a beam or runway, DLED can be matched with manual or electric trolley to add powered horizontal movement. If you just need straightforward fixed-point lifting, the DLED hook type is the simpler, more economical choice.Compare: DLFP-N Low HeadroomCompare: DLFP with Trolley
| Model | Capacity load (t) | Hoisting height (m) | Hoisting speed - Single speed (m/min) | Hoisting speed - Double speed & freq. conv. (m/min) | Power (Kw) | Single speed (r/min) | Double speed (r/min) | Number of phase | Voltage (V) | Frequency (Hz/s) |
| DLED-00501-2 | 0.5 | 3 | 6.8 | 6.8&1.7 | 0.75 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-0101-2 | 1 | 3 | 6.6 | 6.6&1.65 | 1.5 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-0102-2 | 1 | 3 | 3.4 | 3.4&0.85 | 0.75 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-01501-2 | 1.5 | 3 | 8.8 | 8.8&2.2 | 3 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-0201-2 | 2 | 3 | 6.6 | 6.6&1.65 | 3 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-0202-2 | 2 | 3 | 3.3 | 3.3&0.82 | 1.5 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-0301-2 | 3 | 3 | 5.4 | 5.4&1.35 | 3 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-0302-2 | 3 | 3 | 4.4 | 4.4&1.1 | 3 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-0303-2 | 3 | 3 | 2.2 | 2.2&0.55 | 1.5 | 1440 | 1440&360 | 3 | 200-600 | 50 |
| DLED-0502-2 | 5 | 3 | 2.7 | 2.7&0.67 | 3 | 1440 | 1440&360 | 3 | 200-600 | 50 |
All dimensions in mm
| H | A | B | D | E | I (single) | I (double) | J | K (single) | K (double) | L | M | N | Diameter * number of chains |
| 455 | 566 | 266 | 285 | 165 | Φ35 | Φ35 | 27 | Φ34 | Φ34 | 25 | 17 | 17 | Φ6.3*1 |
| 520 | 627 | 302 | 300 | 176 | Φ42 | Φ42 | 32 | Φ41 | Φ41 | 32 | 24 | 24 | Φ7.1*1 |
| 490 | 566 | 266 | 285 | 165 | Φ42 | Φ35 | 32 | Φ41 | Φ35 | 32 | 24 | 24 | Φ6.3*2 |
| 640 | 733 | 343 | 430 | 265 | Φ48 | Φ48 | 38 | Φ49 | Φ49 | 40 | 28 | 28 | Φ10.0*1 |
| 640 | 733 | 343 | 430 | 265 | Φ48 | Φ48 | 38 | Φ49 | Φ49 | 40 | 28 | 28 | Φ10.0*1 |
| 705 | 627 | 302 | 300 | 236 | Φ48 | Φ48 | 38 | Φ49 | Φ49 | 40 | 28 | 28 | Φ7.1*2 |
| 685 | 733 | 343 | 430 | 265 | Φ59 | Φ59 | 48 | Φ59 | Φ59 | 48 | 34 | 34 | Φ11.2*1 |
| 790 | 733 | 343 | 430 | 320 | Φ59 | Φ59 | 48 | Φ59 | Φ59 | 48 | 34 | 34 | Φ10.0*2 |
| 820 | 627 | 302 | 350 | 205 | Φ59 | Φ59 | 48 | Φ59 | Φ59 | 48 | 34 | 34 | Φ7.1*3 |
| 870 | 733 | 343 | 430 | 325 | Φ60 | Φ59 | 48 | Φ60 | Φ60 | 48 | 42 | 42 | Φ11.2*2 |
If the load only needs vertical lifting at fixed stations, the DLED hook-suspended electric chain hoist is the simpler, more economical choice. It can also be paired with a trolley if horizontal travel is needed.
Choose from 500–5000 kg based on your heaviest rated load, plus safety margin.
Verify the hoist's overall dimensions and required headroom fit your working site before ordering.
Select from 200–600V supply and 24–110V control voltage to match your site's electrical standard.
Built-in clutch helps protect the motor under abnormal loads.
Phase sequence protection, limit switch and emergency stop ensure safer operation.
Magnetic brake provides instant braking when power is interrupted.
Japan FEC80 heat-treated alloy steel chain offers high strength and durability.
24V, 36V, 48V and 110V control voltages are available.
Wireless remote control and overheat protection are available for added convenience.
What's the difference between the DLED hook type and DLTD with trolley?
The DLTD with trolley travels along an I-beam for horizontal movement; the DLED hook-suspended hoist is a fixed-point unit built for stationary vertical lifting. Choose based on whether your load needs to travel or just lift.
What capacities does the DLED electric chain hoist come in?
The DLED series covers 500 kg to 5000 kg capacity, all with a standard 3 m lifting height.
How fast does the DLED hoist lift loads?
Single speed ranges from 2.2 to 8.8 m/min; double speed & frequency conversion models provide dual lifting speeds, such as 6.8&1.7 m/min, for flexible operation.
Can I get a trolley version for DLED?
Yes — pair the DLED chain hoist with a manual geared trolley or electric trolley if horizontal travel is required.
What voltage does the DLED support?
200–600V input power with a 36V standard safety control voltage; 24V, 48V and 110V control voltage are available on request.
Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
