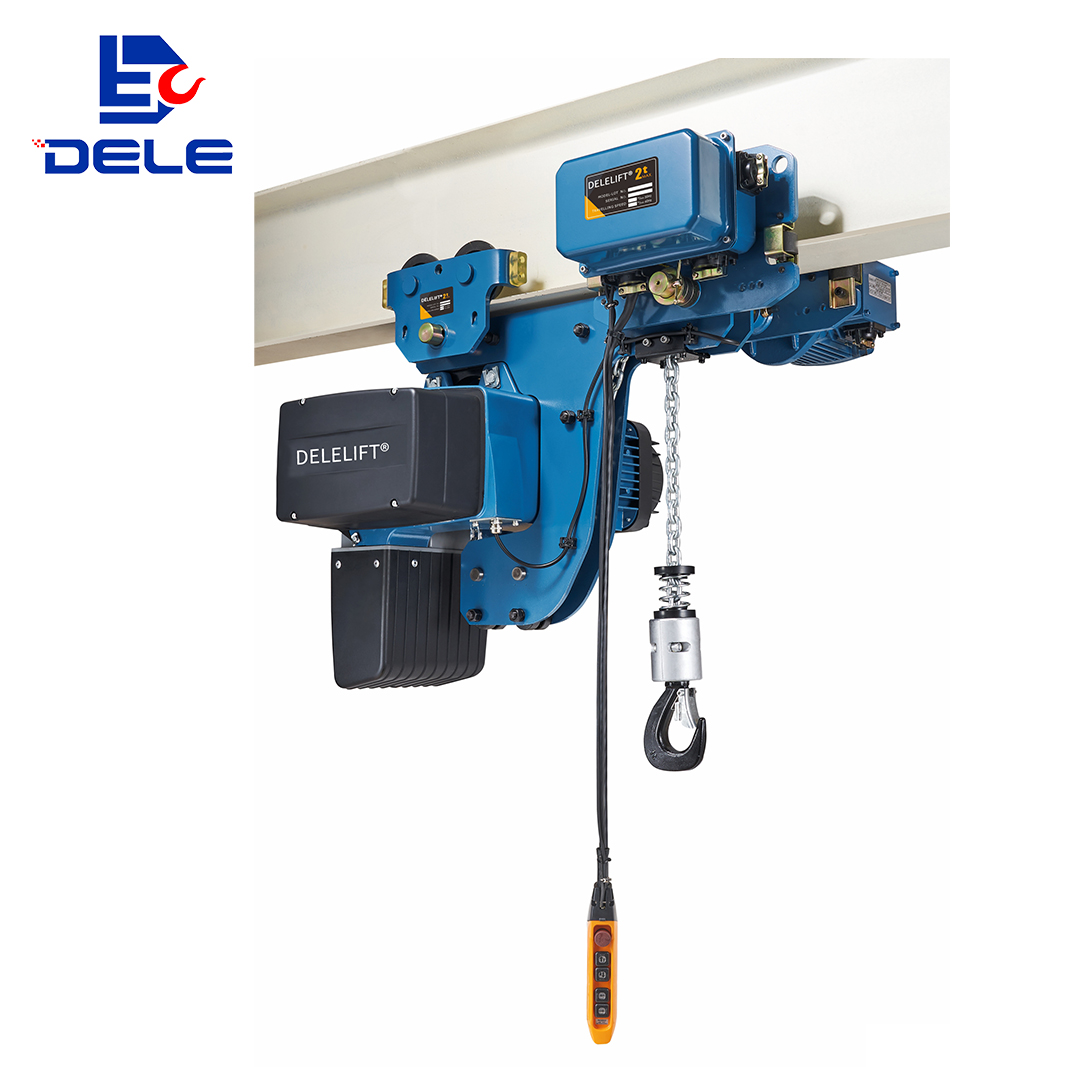

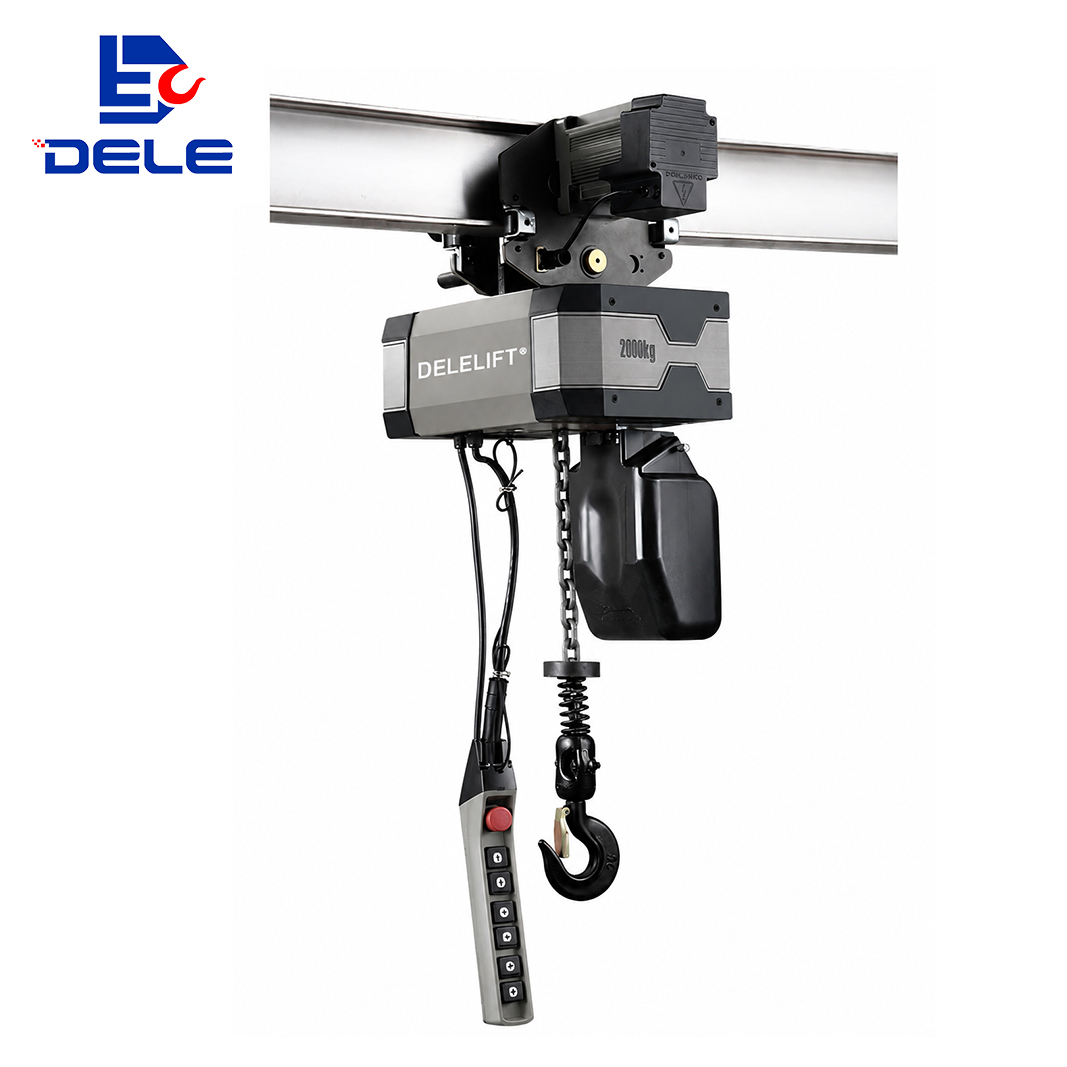

A low‑headroom electric chain hoist with electric trolley that runs on I‑beam profiles — built for single‑girder cranes and workstation lifting systems that require maximum usable lifting height under limited overhead space, not just standard‑height hoisting.
●The F‑series low‑headroom electric chain hoist features an optimised housing structure. Paired with high‑performance motor, gear reducer and compact electronic control system, it maximises the lifting height of loads within confined spaces.
●The F‑series low‑headroom electric chain hoist may be employed independently or integrated with monorail hangers, jib cranes, KBK systems and similar equipment for diverse applications, including production‑line assembly operations, single‑station lifting tasks, and wind‑power equipment maintenance.
●The F‑series low‑headroom electric chain hoist supports selectable input voltage ranging from 220V to 460V, coupled with standard 36V safety control voltage (24V / 48V configurations optional), delivering greater flexibility for global customers.
●The F‑series low‑headroom electric chain hoist is compatible with multiple intelligent control systems to suit diverse working scenarios, satisfying personalised requirements from different end‑users.
Optimised housing paired with high‑performance motor, reducer and compact control system delivers maximum lifting height in confined spaces.
Works independently or integrates with monorail hangers, jib cranes and KBK systems for assembly lines, single‑station lifting and wind‑power maintenance.
Selectable 220‑460V input voltage, standard 36V safety control voltage (24V/48V optional) for worldwide customers.
Compatible with multiple intelligent control systems to satisfy personalized requirements for various working scenarios.
The F‑SERIES low‑headroom electric chain hoist maximises lifting height in limited space, supports diverse application scenarios and global voltage adaptation, and allows custom intelligent control to meet your personalised lifting demands.
Which DLDML/DLDMH model fits your job? If your ceiling clearance is limited, the DLDML low headroom hoist reclaims lift height in a compact body. If your load needs to travel along a beam or runway, the DLDME with electric trolley adds powered horizontal movement. If you just need straightforward fixed-point lifting, the DLDMH hook type is the simpler, more economical choice.Compare: DLDML Low HeadroomCompare: DLDMH with Trolley
Capacity, lifting speed, power, voltage and travel speed by model
| Type | Capacity ( Ton) | Lifting height(m) | Lifting Speed (m/min) | Lifting Motor | Traveling Motor | I-Beam (mm) | ||||||
| Power (Kw) | Rotation speed(r/min) | Phases | Voltage (V) | Frequency (Hz) | Power )(kW | Rotation speed(r/min) | Traveling speed (r/min) | |||||
| DLDML0012501F | 0.125 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML002501F | 0.25 | 3/9 | 8/2 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML00301F | 0.3 | 3/9 | 13/3.2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML00501F | 0.5 | 3/9 | 8/2 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML00502F | 0.5 | 3/9 | 4/1 | 0.4/0.1 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML00602F | 0.6 | 3/9 | 6.5/1.6 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML0102F | 1 | 3/9 | 4/1 | 0.75/0.2 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 60-153 |
| DLDML0101F | 1 | 3/9 | 8/2 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 76-153 |
| DLDML0202F | 2 | 3/9 | 4/1 | 1.5/0.4 | 2880/720 | 3 | 220-460 | 50/60 | 0.4 | 1440 | 46346 | 100-178 |
| Type | Capacity (Ton) | Unit(mm) | Chain Dia.x chain falls | ||||||||||||||||
| H | H1 | H2 | H3 | H4 | A | B | D | D1 | E | K | L | N | R | T | U | W | |||
| DLDML0012501F | 0.125 | 315 | 453 | 15 | 206 | 384 | 441 | 241 | 696 | Φ95 | 380 | Φ29 | 28 | 17 | 169 | 252 | 354 | 648 | Φ5.0×1 |
| DLDML002501F | 0.25 | 315 | 453 | 15 | 206 | 384 | 441 | 241 | 696 | Φ95 | 380 | Φ29 | 28 | 17 | 169 | 252 | 354 | 648 | Φ5.0×1 |
| DLDML00301F | 0.3 | 335 | 464 | 15 | 221 | 399 | 471 | 266 | 727 | Φ95 | 400 | Φ36 | 30 | 20 | 169 | 252 | 371 | 668 | Φ5.0×1 |
| DLDML00501F | 0.5 | 335 | 464 | 15 | 221 | 399 | 471 | 266 | 727 | Φ95 | 400 | Φ36 | 30 | 20 | 169 | 252 | 371 | 668 | Φ5.0×1 |
| DLDML00502F | 0.5 | 385 | 453 | 15 | 206 | 384 | 441 | 241 | 696 | Φ95 | 380 | Φ42 | 35 | 25 | 169 | 252 | 354 | 648 | Φ5.0×2 |
| DLDML00602F | 0.6 | 385 | 513 | 15 | 271 | 399 | 471 | 266 | 727 | Φ95 | 400 | Φ42 | 35 | 25 | 169 | 252 | 371 | 668 | Φ5.0×2 |
| DLDML0102F | 1 | 385 | 472 | 15 | 271 | 399 | 471 | 266 | 727 | Φ95 | 400 | Φ42 | 35 | 25 | 169 | 252 | 371 | 668 | Φ5.0×2 |
| DLDML0101F | 1 | 360 | 567 | 19 | 241 | 488 | 569 | 306 | 779 | Φ95 | 440 | Φ42 | 35 | 25 | 169 | 252 | 412 | 740 | Φ7.1×1 |
| DLDML0202F | 2 | 453 | 677 | 20 | 325 | 493 | 569 | 306 | 784 | Φ110 | 440 | Φ52 | 41 | 35 | 174 | 257 | 412 | 745 | Φ7.1×2 |
Low‑headroom electric chain hoists shall be selected for conditions of insufficient workshop building height, limited overhead space above the track, requirements for greater effective lifting height, and impossibility of building modification.
Choose from 125–2000 kg based on your heaviest rated load, plus safety margin.
Confirm the trolley's flange width range matches your I-beam before ordering.
Select from 220–460V supply match your site's electrical standard.
Optimized housing for maximum lifting height in confined spaces
Flexible deployment: standalone operation or integrated with various lifting equipment
Wide range of applications for diverse industrial lifting operations
Wide‑range input voltage for global power grid compatibility
Compatible with multiple intelligent control systems for complex working conditions
Customizable configurations to meet personalized end‑user requirements
What's the difference between the DLDME and the DLDML?
The DLDME with electric trolley travels along an I-beam for horizontal movement; the DLDML low headroom hoist is a fixed-point unit built for confined vertical clearance. Choose based on whether your load needs to travel or just lift.
What capacities does the DLDML trolley hoist come in?
The DLDML series covers 125 kg to 2000 kg capacity, all with a standard 3 m lifting height.
How fast does the electric trolley travel?
The traveling speed of the electric trolley is 11 m/min (low speed) / 20 m/min (high speed) for all listed models.
Can I get a manual trolley version instead?
Yes — pair a standard chain hoist with a manual geared trolley or manual plain trolley if powered travel isn't required.
What voltage does the DLDML support?
110–480V input power with a 36V standard safety control voltage; 24V and 48V control voltage are available on request.
Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
