ModelCapacity(t)Test load(t)Protection levelClassification FEM/SOLifting speed (m/min)Motor (KW)Load chain(mm)Load chain fallsNet weight (KG)Chain/M (kg)DSH-T2-0.50.50.625IP661AM/M41-262φ6.3*191350.86DSH-T2-111.25IP661AM/M41-162φ7.1*211351.07

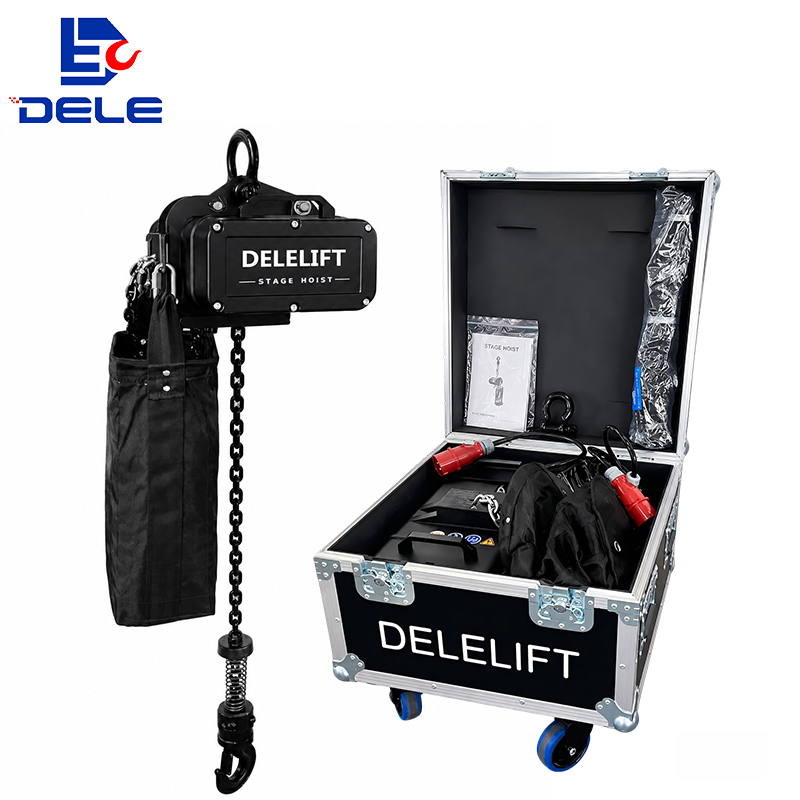

The electric stage hoist is a compact, lightweight chain hoist built for rigging in theaters, concerts and live events. It pairs an individual mechanical brake with an electromagnetic brake to keep the load safe during working, and offers overload protection that shuts down at 120% SWL (for option). The FEC DAT load chain is made according to EN818-7 standards, with minimum break testing meeting an 8 times safety factor, while the alloy steel forging hook rotates 360° and meets a 10 times safety factor with a protecting cover.
Its high strength aluminum body keeps the hoist light, strong and corrosion resistant, reaching IP 66 for demanding stage conditions. The 5-tooth load sprocket is finish-machined by a CNC machining center, and the suspension type design allows convenient maintenance. Up and down limit switches help protect the rigging point, and the folding handle makes the hoist easy to transport between venues.
Independent mechanical and electromagnetic brakes, with overload and upper/lower limit protection for safer operation.
Lightweight and corrosion-resistant aluminum housing with IP66 protection for demanding working environments.
FEC DAT load chain complies with EN818-7, while the 360° rotating forged hook provides a 10:1 safety factor.
CNC-machined 5-tooth load sprocket and suspension-type design ensure precise operation and easy maintenance. Folding handle facilitates transportation.

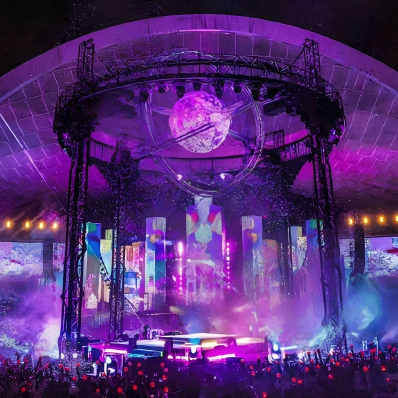

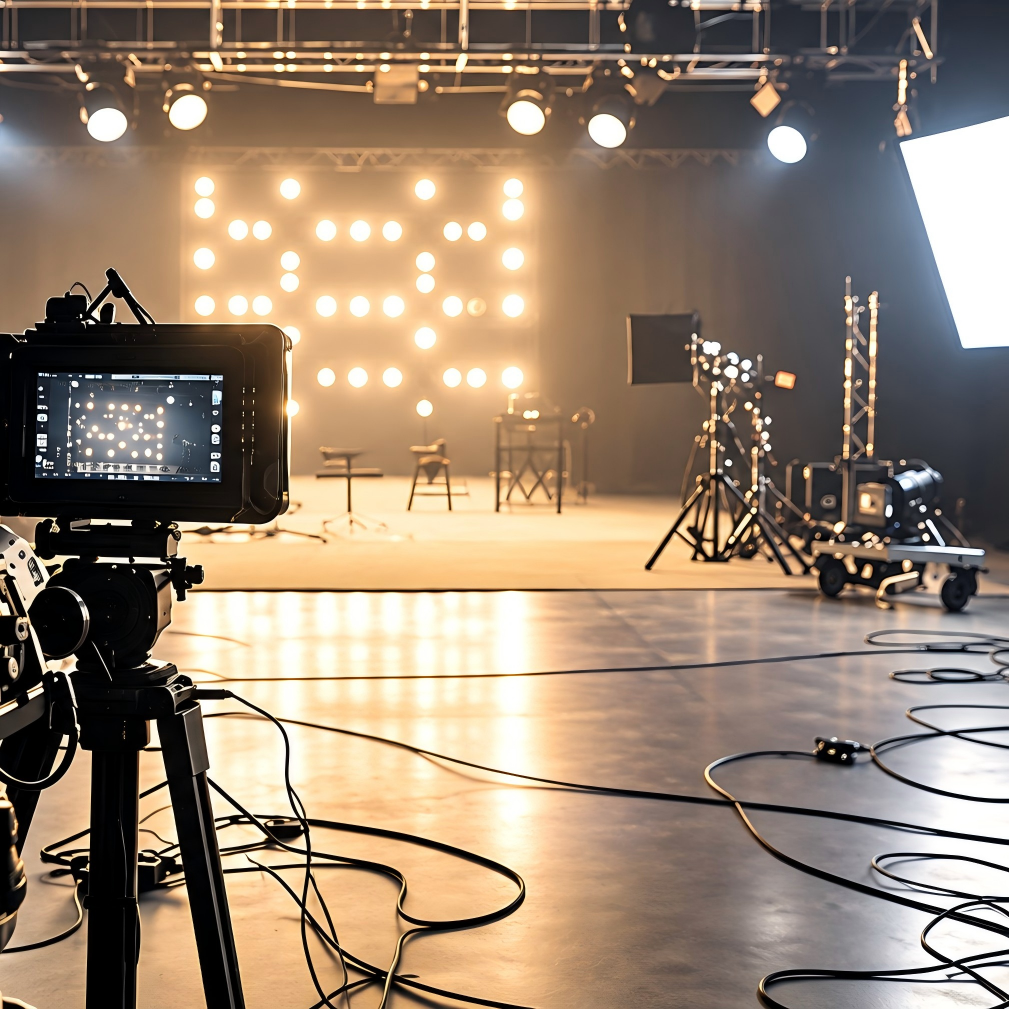

Rigging for theater, concerts and live events puts loads — lights, sound, scenery — directly above performers and audiences, so safety cannot be compromised. This electric stage hoist is built for exactly that: an individual mechanical brake and an electromagnetic brake keep the load safe during working, overload protection shuts down at 120% SWL (for option), and the FEC DAT load chain meets EN818-7 standards with minimum break testing at 8 times safety factor. The alloy steel forging hook rotates 360° and meets 10 times safety factor, with a protecting cover.
Which configuration fits your rig? If you work in dusty or outdoor venues, the high strength aluminum body stays light, strong and corrosion resistant, reaching IP 66. If you need extra load control, overload protection is available to shut down at 120% SWL. If you tour between venues, the folding handle makes the hoist easy to transport. The 5-tooth load sprocket is finish-machined by a CNC machining center, and the suspension type design keeps maintenance convenient, while up and down limit switches protect the rigging point.Compare: DSH-S3-H Compare: DSH-S3
| Model | DSH-S3-H-0.5 | DSH-S3-H-1 | DSH-S3-H-2 | DSH-S3-H-2.5 |
| Safety factor | 8:01 | 8:01 | 8:01 | 8:01 |
| Brake | 2 | 2 | 2 | 2 |
| Lifting speed | 4m/min | 4m/min | 4m/min | 4m/min |
| Noise | ≤55dB | ≤55dB | ≤65dB | ≤72dB |
| Chain | EN818-7 Φ7.1×21 mm | EN818-7 Φ7.1×21 mm | EN818-7 Φ10×30 mm | EN818-7 Φ11.2×34 mm |
| Limit switch | for option | for option | for option | for option |
| Overload protection | for option | for option | for option | for option |
| Load monitoring | for option | for option | for option | for option |
| Emergency Stopper | for option | for option | for option | for option |
| Hoist size | 426×262×217 mm | 426×262×217 mm | 519×352×325 mm | 519×352×325 mm |
| Flight case | 560×560×530 mm | 560×560×530 mm | — | — |
| Model | Capacity (t) | Test load (t) | Protection level | Classification FEM/SO | Lifting speed (m/min) | Motor (KW) | Load chain (mm) | Load chain falls | Net weight (KG) | Chain/M (kg) |
| DSH-S3-H-0.5 | 0.5 | 0.625 | IP 66 | 2M/M5 | 4 | 0.8 | Φ7.1*21 | 1 | 30 | 1.07 |
| DSH-S3-H-1 | 1 | 1.25 | IP 66 | 2M/M5 | 4 | 1 | Φ7.1*21 | 1 | 30.5 | 1.07 |
| DSH-S3-H-2 | 2 | 2.5 | IP 66 | 1AM/M4 | 4 | 2 | Φ10*30 | 1 | 71 | 2.15 |
| DSH-S3-H-2.5 | 2.5 | 3.2 | IP 66 | 1AM/M4 | 4 | 2 | Φ11.2*34 | 1 | 73 | 2.65 |
Choose from 0.5t, 1t, 2t or 2.5t based on your heaviest rigged load, plus safety margin.
The 0.5t and 1t models run at ≤55dB, the 2t at ≤65dB, and the 2.5t at ≤72dB — pick the quietest model your load allows for theater and broadcast use.
All models use EN818-7 load chain with an 8:1 safety factor; chain size scales with capacity, from Φ7.1×21 up to Φ11.2×34.
Overload protection, limit switch, load monitoring and emergency stopper are all available as options.
Mechanical + electromagnetic brakes for enhanced safety.
Overload and upper/lower limit protection.
FEC DAT chain with 8:1 safety factor.
Lightweight, high-strength and corrosion-resistant.
Alloy steel hook with 10:1 safety factor.
CNC sprocket, easy maintenance and folding handle.
What capacities does the DSH-S3-H stage hoist come in?
The DSH-S3-H series covers 0.5t, 1t, 2t and 2.5t, all with a standard lifting speed of 4 m/min.
How quiet is the hoist for theater and broadcast use?
The 0.5t and 1t models run at ≤55dB, the 2t at ≤65dB, and the 2.5t at ≤72dB — so the lighter models are preferred for quiet rehearsal and broadcast environments.
What load chain and safety factor does it use?
All models use EN818-7 load chain with an 8:1 safety factor; chain size scales from Φ7.1×21 (0.5t/1t) to Φ10×30 (2t) and Φ11.2×34 (2.5t).
What brake system keeps the load secure?
It combines an individual mechanical brake with an electromagnetic brake to keep the stage hoist safe during working.
What is the protection rating?
Overload protection (shuts down at 120% SWL), limit switch, load monitoring and emergency stopper are all available as options.
