ModelCapacity(t)Testload(t)ProtectionlevelClassificationFEM/SOLiftingspeed(m/min)Motor(KW)Loadchain(mm)LoadchainfallsNetweight(KG)Chain/M(kg)DSH-T3-0.50.50.625IP661AM/M440.8φ7.1*211301.07DSH-T3-111.25IP 661AM/M441.0φ7.1*

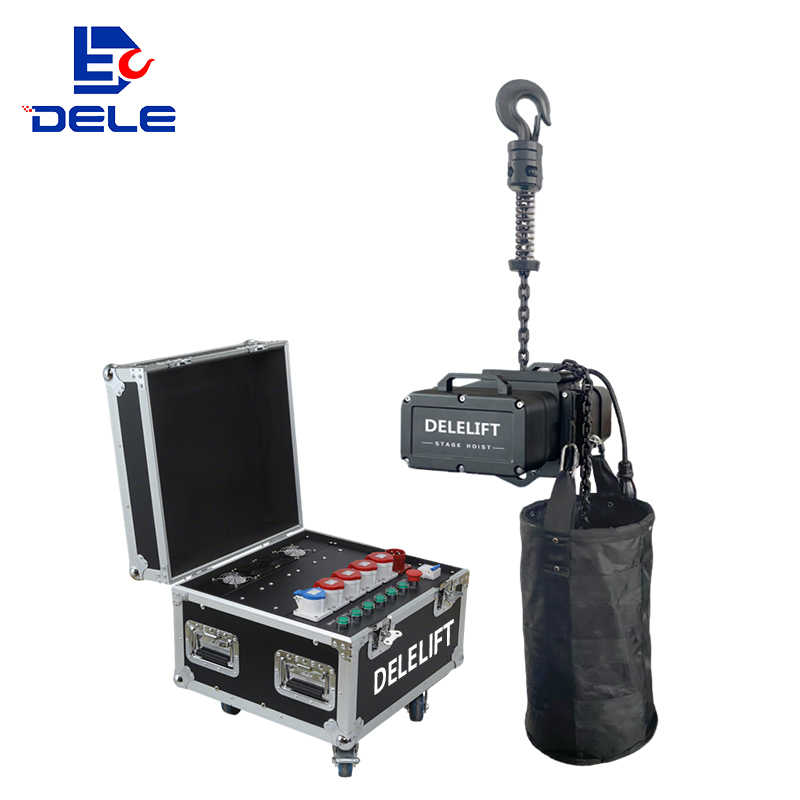

The DSH-S1 stage electric chain hoist pairs a compact, lightweight high-strength aluminum body with a single electromagnetic brake system, delivering reliable fixed-point vertical lifting for professional stage and event rigging. Available in capacities from 0.5 t to 1 t with ≤55dB low-noise operation and IP66 ingress protection, it is built for truss mounting, lighting battens, exhibition build-ups and studio installations where loads require smooth stationary lifting, not horizontal travel.
It shares its EN818-7 standard FEC DAT load chain and 360° rotatable forged alloy steel hook with the DSH-S2 variable-speed stage hoist, but features a fixed lifting speed and a cost-effective single-brake configuration — see the comparison below to confirm which fits your production setup.
Electromagnetic brake with stable braking performance; overload protection available as an option.
Lightweight high-strength aluminum alloy housing with excellent corrosion resistance and IP66 protection.
FEC DAT load chain meets EN818-7 standards with an 8:1 safety factor; forged alloy steel hook rotates 360° with a 10:1 safety factor.
CNC-machined 5-tooth load sprocket with suspension design for easy maintenance, plus optional limit switches and folding handle for convenient transport.
Not every stage rigging project requires variable speed control or premium functional safety certifications. Where a load is lifted and lowered at a fixed truss point — a lighting batten, a static scenic element, an exhibition booth frame — a standard fixed-speed stage hoist does the job at lower cost and with simpler operation than a high-end variable-speed unit. The DSH-S1 is built for exactly that: dependable, ultra-quiet fixed-point lifting for entertainment and event applications.
Which DSH stage hoist model fits your production? If you need precise positioning, stepless speed control and SIL3 functional safety for high-profile live performances, the DSH-S2 variable-speed stage hoist delivers premium performance with full safety features. If you just need straightforward fixed-speed lifting for standard rigging, exhibition build-outs and temporary installations, the DSH-S1 fixed-speed model is the simpler, more economical choice.Compare: DSH-S1Compare: DSH-S2
| Model | DSH-S1-0.5 | DSH-S1-1 |
| Safety factor | 6:01 | 6:01 |
| Brake | 1 | 1 |
| Lifting speed | 4 m/min | 4 m/min |
| Noise | ≤55 dB | ≤55 dB |
| Chain | EN818-7 Φ7.1 × 21 mm | EN818-7 Φ7.1 × 21 mm |
| Limit switch | for option | for option |
| Overload protection | for option | for option |
| Load monitoring | for option | for option |
| Emergency Stopper | for option | for option |
| Hoist size | 426 × 262 × 216 mm | 426 × 262 × 216 mm |
| Flight case | 560 × 560 × 530 mm | 560 × 560 × 530 mm |
| Model | Capacity (t) | Test load (t) | Protection level | Classification FEM/SO | Lifting speed (m/min) | Motor (KW) | Load chain (mm) | Load chain falls | Net weight (KG) | Chain/M (kg) |
| DSH-S1-0.5 | 0.5 | 0.625 | IP 66 | 2M/M5 | 4 | 1 | Φ7.1*21 | 1 | 28 | 1.07 |
| DSH-S1-1 | 1 | 1.25 | IP 66 | 2M/M5 | 4 | 1 | Φ7.1*21 | 1 | 29 | 1.07 |
If the load only needs fixed-point vertical lifting on trusses, stage battens or lighting grids, the DSH hook-suspended stage hoist is the compact, reliable choice optimized for stationary rigging.
Choose from 0.5 t to 1 t based on your heaviest rigged load, plus an appropriate safety margin.
Confirm the hoist's mounting dimensions fit your truss hanging points and verify available headroom before ordering.
Select compatible supply voltage and control voltage to match your site’s electrical standard, with variable speed control for precise positioning.
Single electromagnetic brake system delivers stable and reliable braking performance.
Automatically shuts down at 120% SWL to help prevent overload damage and enhance operational safety.

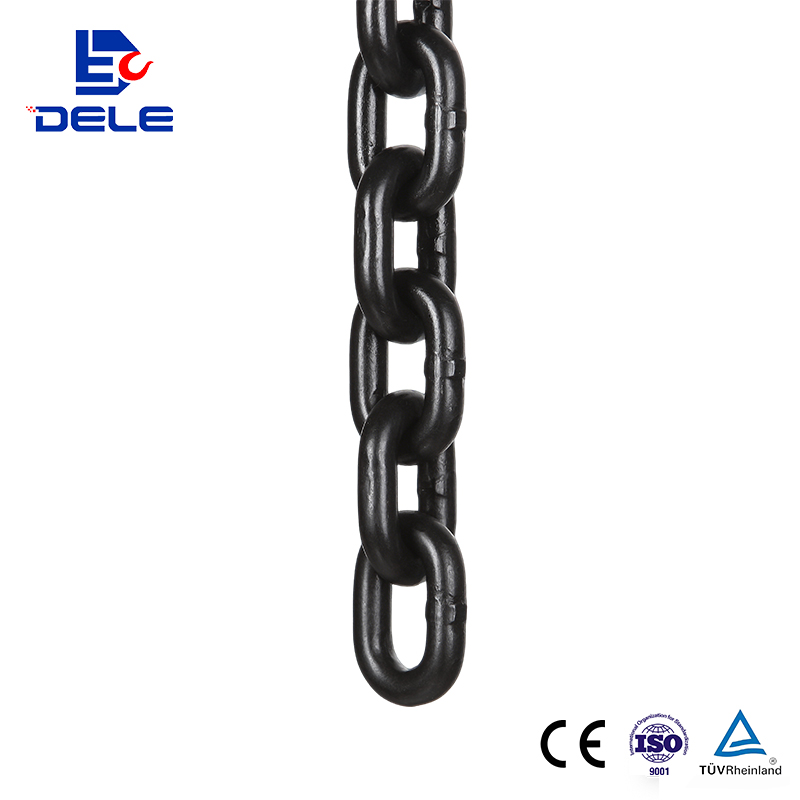

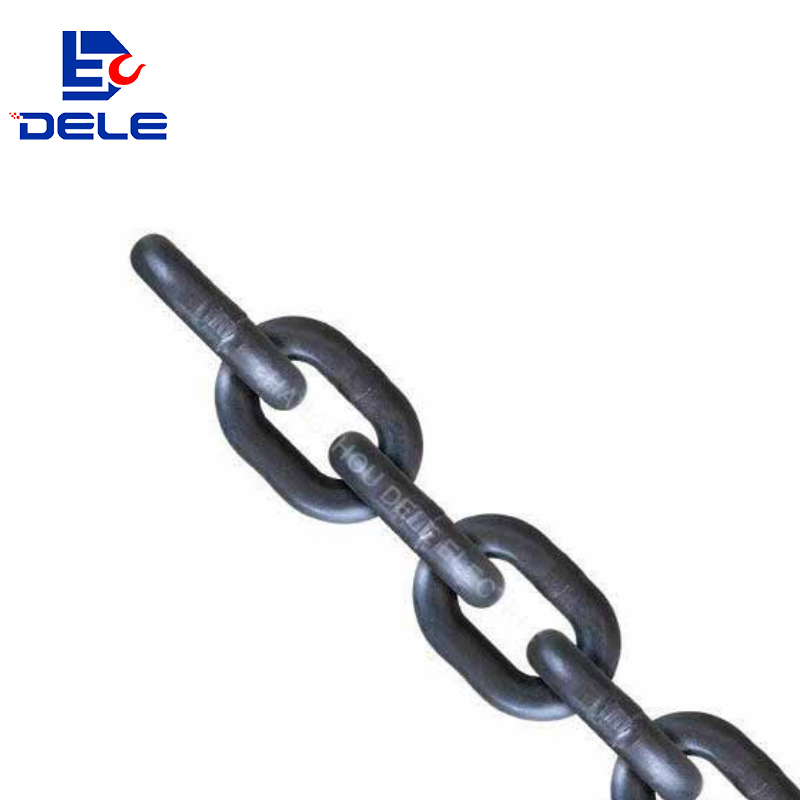

FEC DAT load chain complies with EN818-7 standards and passes minimum breaking load testing with an 8:1 safety factor.
High-strength aluminum alloy housing combines lightweight construction, high strength and corrosion resistance with IP66 protection.
Forged alloy steel hook rotates 360°, provides a 10:1 safety factor and features a protective cover for enhanced safety.
CNC-machined 5-tooth load sprocket with suspension design simplifies maintenance, while the folding handle makes transportation more convenient.
What’s the difference between the DSH-S1 and DSH-S2?
The DSH-S1 fixed-speed stage hoist is designed for general temporary truss rigging; the DSH-S2 variable-speed model supports stepless speed regulation and high-level safety protection for professional live events. Choose based on whether you need variable speed control or only basic vertical lifting.
What capacities does the DSH stage hoist come in?
The DSH-S1 series covers 0.5 t to 1 t capacity, all with customizable lifting height.
How fast does the DSH-S1 hoist lift?
Standard lifting speed is 4 m/min across the range, powered by 1.0kW motor.
Can I get a manual trolley version instead?
Yes — overload protection and upper/lower limit switches are available as optional extras for enhanced safety.
What voltage does the DLFP support?
Multiple input power options; standard control voltage can be customized according to your site’s electrical requirements.
Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
