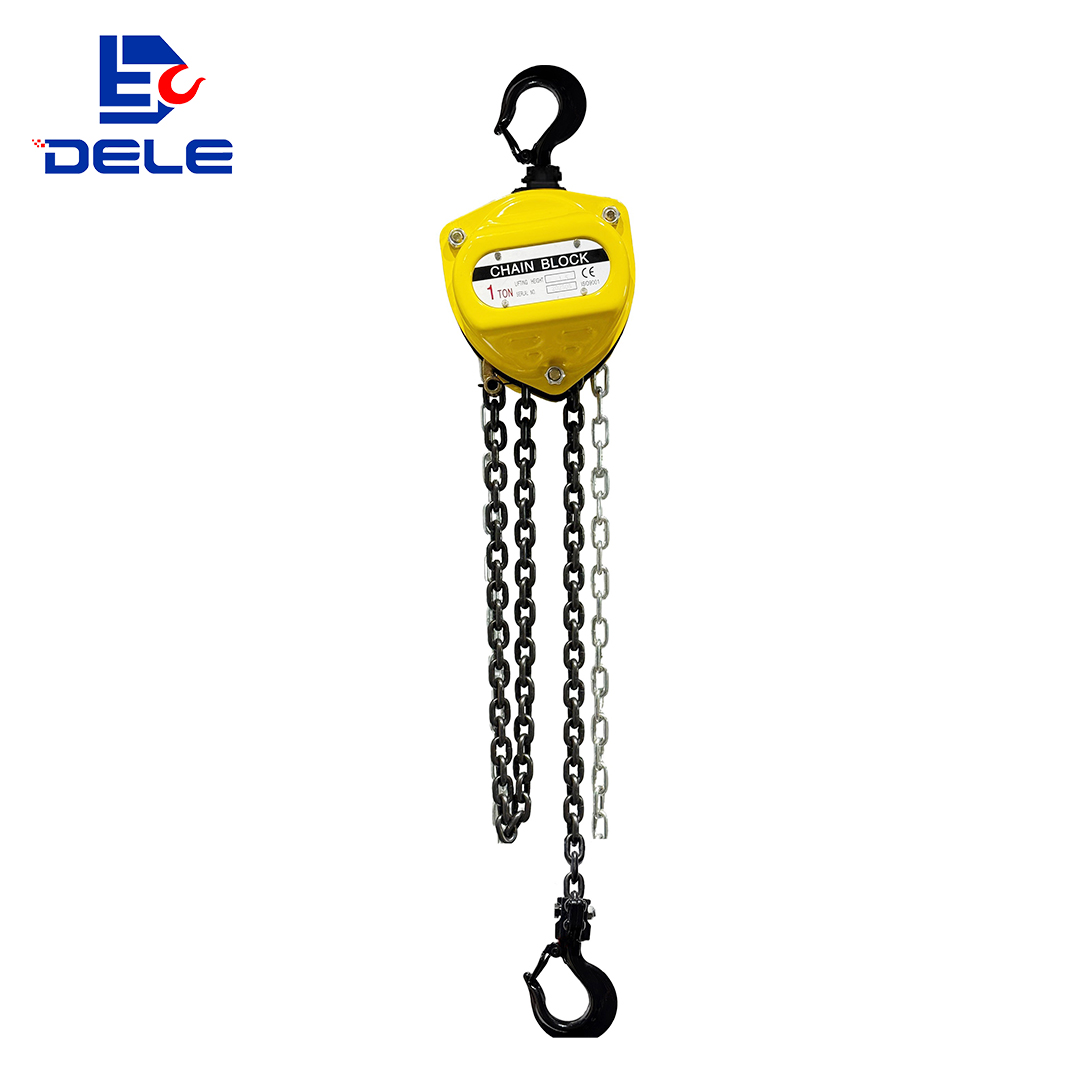

The VN manual chain hoist pairs a multi-support transmission structure with a double-pawl safety mechanism and Grade 80 galvanized load chain, delivering smooth rotation, light hand pull and a doubled safety factor. Available in capacities from 0.5 t to 100 t, it's built for warehouses, workshops, construction sites and heavy industrial lifting where reliability and load security count, not just light-duty occasional use.
Manufactured to EN 13157 with anti-slip nuts throughout and a special crimped hand wheel cover that prevents chain tilting and snapping, every model in the VN series uses a Grade 80 alloy steel load chain complying with EN 818-7 (safety factor 4). See the specification table below to select the right capacity for your application.
0.5–100 t capacity range, built to EN 13157 standard.
Multi-support structure for low failure rate; double pawls double the safety factor, anti-slip nuts included.
Smooth rotation, light hand pull; crimped hand wheel cover prevents chain tilting.
Grade 80 galvanized alloy steel chain, EN 818-7 compliant, safety factor 4.

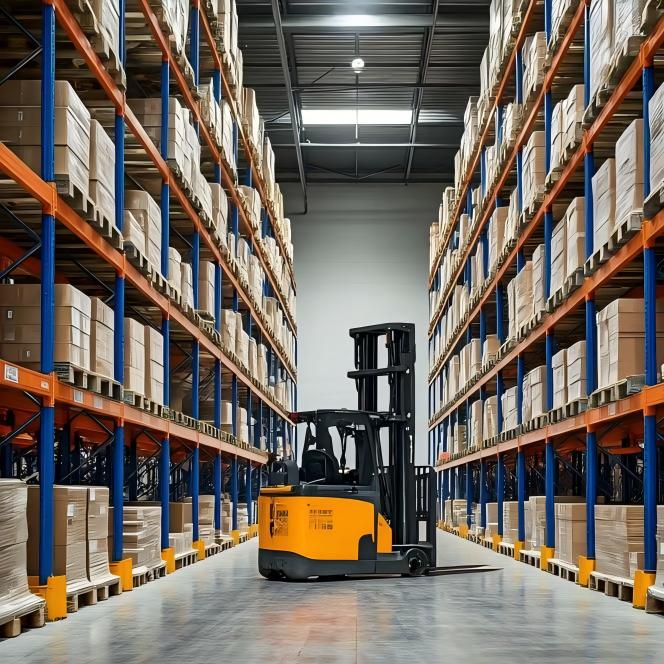

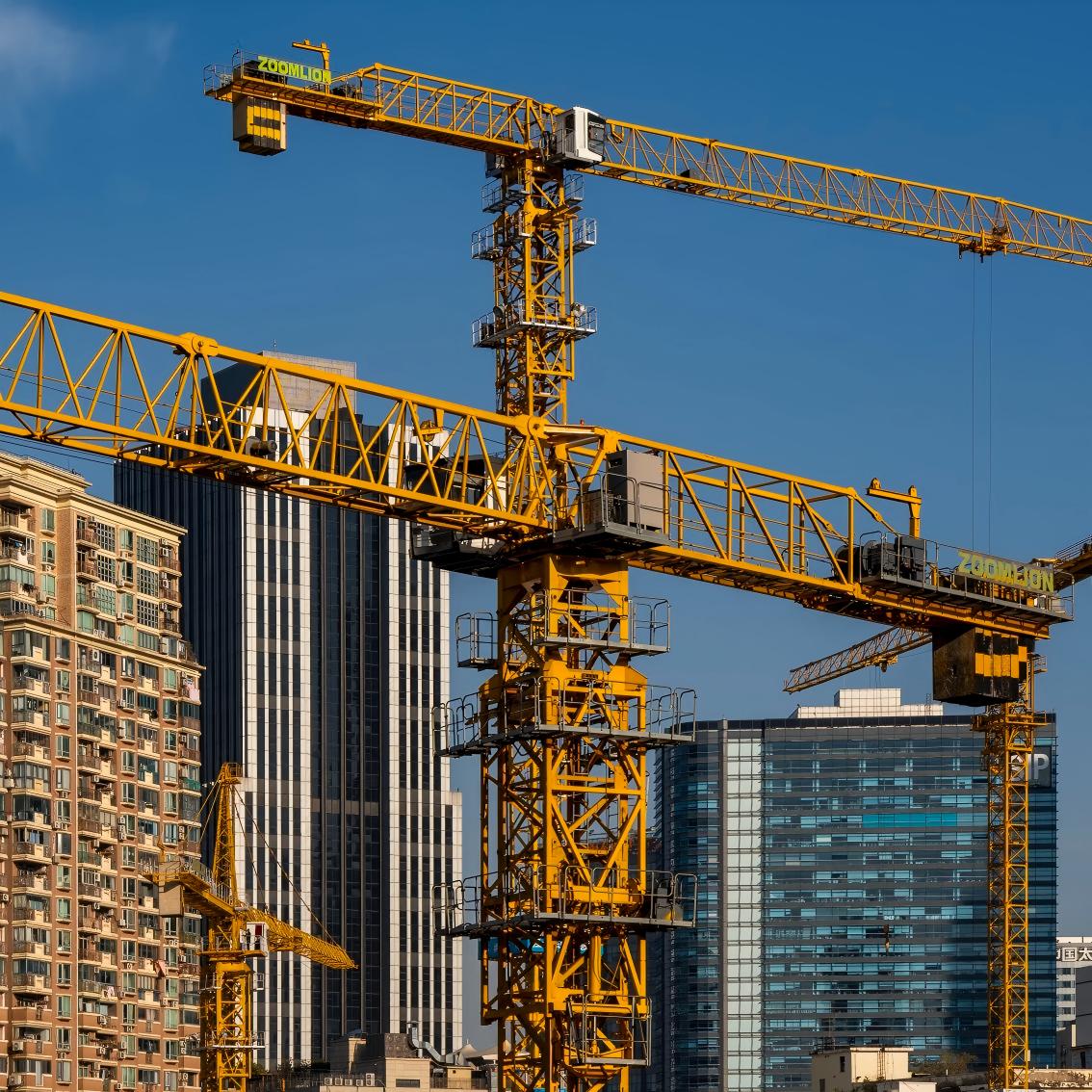

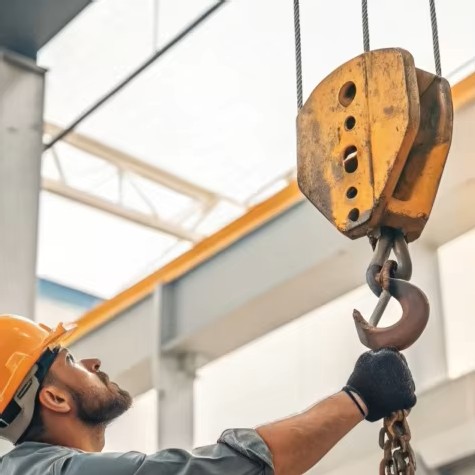

Not every lifting job requires powered equipment or specialized low-headroom design. Where loads need dependable manual lifting across warehouses, workshops, construction sites and heavy industrial facilities — from light rigging to 100-ton heavy lifts — a manual chain hoist does the job at lower cost, with no power supply and minimal maintenance. The VN series is built for exactly that: a 0.5–100 t capacity range, multi-support transmission and double-pawl safety for reliable, versatile manual lifting.

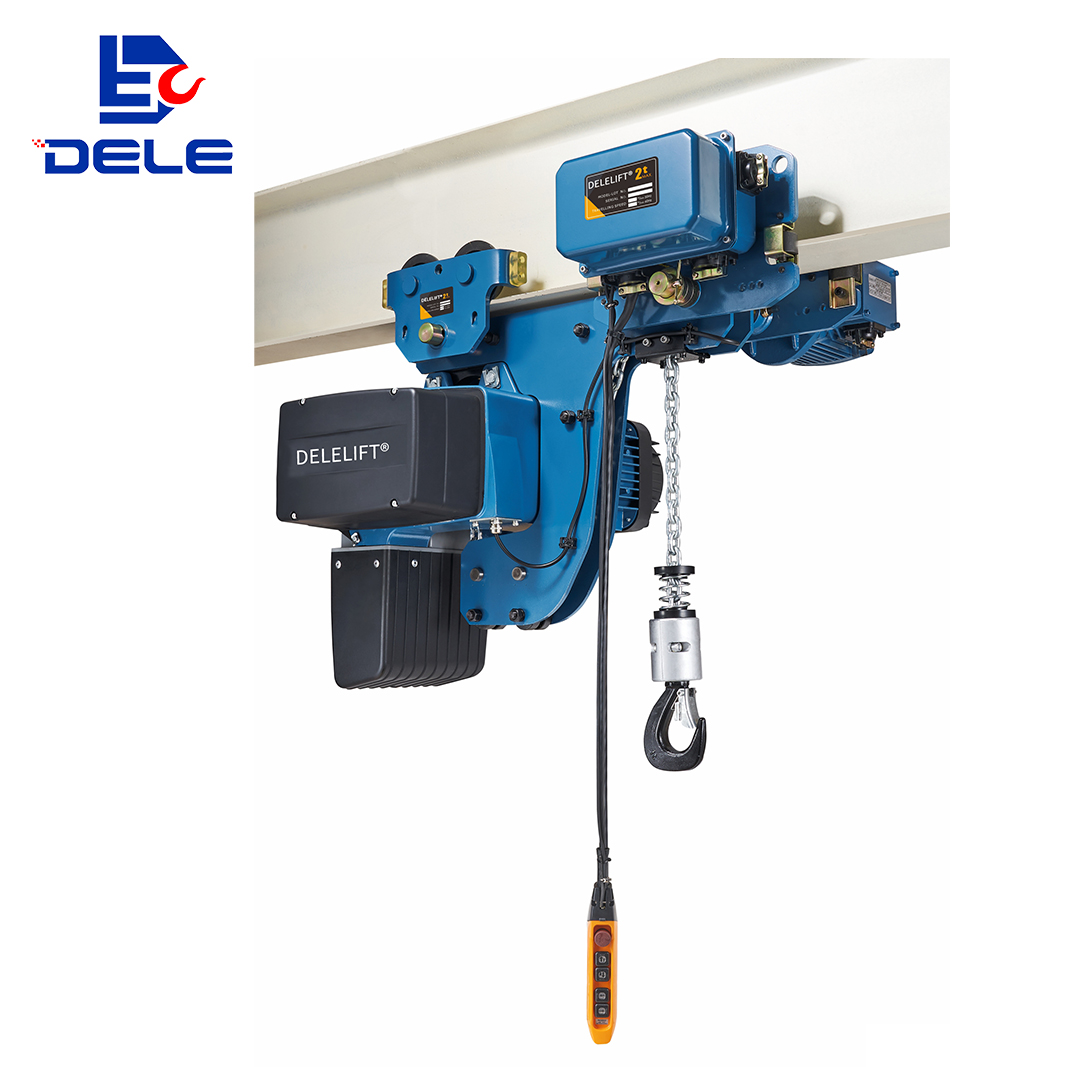

Which DLF/DLFP model fits your job? If your ceiling clearance is limited, the DLFP-N low headroom hoist reclaims lift height in a compact body. If your load needs to travel along a beam or runway, the DLFP with electric trolley adds powered horizontal movement. If you just need straightforward fixed-point lifting, the DLF hook type is the simpler, more economical choice.
Compare: DLFP-N Low HeadroomCompare: DLFP with Trolley
| Model | Capacity (T) | Standard lift(m) | Running Test (T) | Effort required to lift max load (N) | Load chain number of falls (mm) | Load chain Diameter (mm) | Net Weight (kg) | Packing (L*W"H) (cm) |
| VN-0.5T | 0.5 | 3 | 0.75 | 240 | 1 | 5 | 11 | 24*19*18 |
| VN-1T | 1 | 3 | 1.5 | 250 | 1 | 6 | 12.5 | 28*21*21 |
| VN-2D | 2 | 3 | 3 | 335 | 1 | 8 | 19.5 | 34*26*20 |
| VN-2S | 2 | 3 | 3 | 330 | 2 | 6 | 12 | 25*19*16 |
| VN-3D | 3 | 3 | 4.5 | 363 | 1 | 10 | 29 | 34*26*20 |
| VN-3S | 3 | 3 | 4.5 | 370 | 2 | 7/8 | 24 | 34.5*24*16 |
| VN-5T | 5 | 3 | 7.5 | 360 | 2 | 10 | 41.3 | 41*32*24 |
| VN-7.5T | 7.5 | 3 | 10 | 410 | 3 | 10 | 79 | 48*42*18.5 |
| VN-10T | 10 | 3 | 12.5 | 380 | 4 | 10 | 78.5 | 48*42*18.5 |
| VN-15T | 15 | 3 | 15 | 435 | 6 | 10 | 120 | 69*56*20 |
| VN-20T | 20 | 3 | 20 | 435*2 | 8 | 10 | 193 | 78*68*20 |
| VN-30T | 30 | 3 | 30 | 435*2 | 12 | 10 | 220 | 85*67*30 |
| VN-50T | 50 | 3 | 50 | 435*2 | 22 | 10 | 1092 | 110*100*130 |
| VN-100T | 100 | 3 | 100 | 435*4 | 20*2 | 10 | 1500 | 220*320*800 |
All dimensions in mm
| Model | A | B | C | H |
| VN-0.5T | 132 | 148 | 28 | 345 |
| VN-1T | 151 | 172 | 32 | 376 |
| VN-2D | 175 | 210 | 36 | 470 |
| VN-2S | 151 | 159 | 32 | 315 |
| VN-3D | 176 | 230 | 46 | 565 |
| VN-3S | 151 | 208 | 46 | 475 |
| VN-5T | 189 | 280 | 46 | 688 |
| VN-7.5T | 188 | 398 | 57 | 720 |
| VN-10T | 189 | 463 | 57 | 765 |
| VN-15T | 190 | 580 | 75 | 870 |
| VN-20T | 192 | 630 | 82 | 890 |
| VN-30T | 330 | 670 | 106 | 1000 |
| VN-50T | 410 | 900 | 130 | 1950 |
| VN-100T | 745 | 1140 | 170 | 2680 |
Choose from 0.5 t to 100 t across 15 models based on your heaviest rated load, plus a safety margin. Light-duty models (0.5–2 t) support single-user operation, while 15 t and above require multi-operator hand chains.
For 2 t and 3 t capacities, select the D version (single-chain, longer lift) or S version (double-chain, more compact body, lower headroom). Models 5 t and above use multi-chain falls as standard.
All models come with a standard 3 m lifting height — custom heights available on request. Check the Hmin dimension in the specification table to ensure the hoist fits your available headroom; choose the S version for tighter spaces.
Models up to 10 t require 240–410 N of hand effort for single-user operation. The 15 t requires 435 N, the 20–50 t require two operators (435×2 N), and the 100 t requires four operators (435×4 N). Every model is built to EN 13157 with Grade 80 galvanized load chain and 1.5× WLL factory testing.
Capacity from 0.5 t to 100 t, manufactured to European Standard EN 13157 for verified safety and quality.
Multi-support structure ensures reasonable force distribution, flexible operation and low failure rate of the transmission system.
Double pawls increase the safety factor by 2 times; all nuts are anti-slip for enhanced structural security.
Smooth rotation, high efficiency and light hand pull reduce operator fatigue during extended use.
The hand wheel cover uses a special crimping process to keep the hand chain from tilting or snapping.
High-strength Grade 80 alloy steel load chain with galvanized finish for corrosion resistance, complying with EN 818-7 (safety factor 4).
What's the difference between the D and S versions?
he VN-2D/3D use a single-chain fall for longer lift height; the VN-2S/3S use a double-chain configuration for a more compact body and lower headroom. Choose based on your available headroom and lift requirements.
What capacities does the VN manual chain hoist come in?
The VN series covers 0.5 t to 100 t across 15 models, all with a standard 3 m lifting height.
How much hand effort is needed to lift the maximum load?
Models up to 10 t require 240–410 N for single-user operation; the 15 t requires 435 N; the 20–50 t require two operators (435×2 N); the 100 t requires four operators (435×4 N).
What safety features and certifications are included?
Manufactured to EN 13157 with a double-pawl mechanism (2× safety factor), anti-slip nuts throughout, and Grade 80 galvanized load chain complying with EN 818-7 (safety factor 4). Every unit is factory-tested at 1.5 times the WLL.
Can I get a custom lifting height or chain configuration?
Yes — standard lift is 3 m across all models; custom lift heights and chain configurations are available on request. The hand chain size is standardized at 5×25 mm for all capacities.
