SpecificationModelHSHVA-B-050VA-B-075VA-B-150VA-B-300VA-B-600VA-B-900Capactytons0.50.751.5369Load Chainmm5*156*188*2410*3010*3010*30Strands of Load Chain111123Strands Liftmm1.51.51.51.51.51.5Effort Required To Lift Rated LoadN340140240320340360Dimensions&nbs

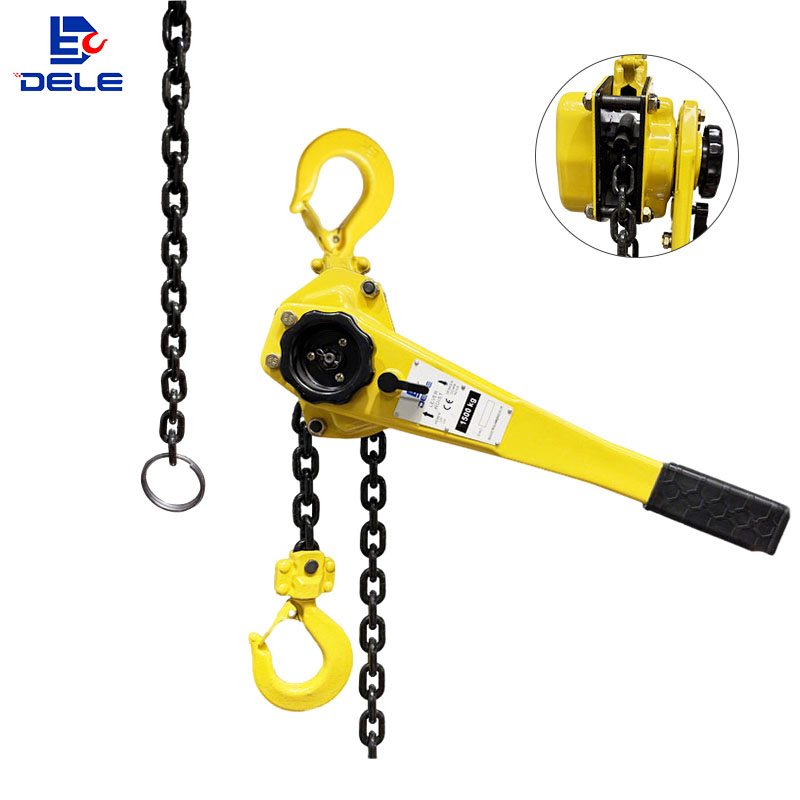

Designed in accordance with EN13157, meeting relevant international standards for reliable performance.
Built with a high-strength steel frame and gear case for durability in demanding construction, maintenance and rigging applications.
Features 360° handle rotation with short-stroke ratcheting, providing flexible and efficient load handling.
Equipped with Grade 80 alloy steel load chain in accordance with ISO 3077, with EN818-7 compliant chain available as an option for enhanced strength and durability.
Not every lifting job requires electricity or a fixed lifting point. When loads need to be lifted, pulled, positioned or secured in areas without power, a lever hoist provides a compact and reliable solution. Its manual operation, rugged construction and flexible installation make it ideal for construction, maintenance, machinery installation and general rigging applications.
Which lever hoist fits your job? If you need a compact tool for lifting and pulling in confined or remote locations, a lever hoist offers excellent flexibility without requiring a power supply. The 360° operating handle enables convenient ratcheting operation, while the high-strength Grade 80 alloy steel load chain provides reliable load handling. For demanding working environments, heavy-duty construction and optional safety components provide additional durability and performance.Compare: VA-BCompare: V
| Model | VA-B-0.5T | VA-B-0.75T | VA-B-1.5T | VA-B-3T | VA-B-6T | VA-B-9T | |
| Capacity load | (t) | 0.5 | 0.75 | 1.5 | 3 | 6 | 9 |
| Load chain specifications | (mm) | 5x15 | 6x18 | 8x24 | 10x30 | 10x30 | 10x30 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 2 | 3 | |
| Standard lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Effort required to lift max load | (N) | 340 | 140 | 240 | 320 | 340 | 360 |
| Add 1m weight | (kg) | 0.52 | 0.8 | 1.4 | 2.15 | 4.3 | 6.45 |
| Net weight | (kg) | 3.7 | 8 | 11.8 | 21 | 32 | 47 |
| Gross weight | (kg) | 4.7 | 9 | 12.8 | 23 | 34 | 49 |
| Packing size | (cm) | 38*14*17 | 38*14*17 | 51*14.5*20.3 | 55*18.5*22.5 | 55*18.5*22.5 | 61*46*30 |
All dimensions in mm
| Mode | A | B | C | D | Hmin | L | K |
| VA-B-0.5T | 105 | 78 | 80 | 35 | 270 | 300 | 30 |
| VA-B-0.75T | 148 | 55 | 135 | 37 | 320 | 290 | 26 |
| VA-B-1.5T | 176 | 102 | 162 | 45 | 380 | 420 | 32.5 |
| VA-B-3T | 195 | 109 | 211 | 50 | 480 | 420 | 37 |
| VA-B-6T | 195 | 109 | 254 | 65 | 620 | 420 | 46 |
| VA-B-9T | 195 | 109 | 319 | 85 | 700 | 420 | 50 |
If the load is lifted, pulled or tensioned at a fixed point with no power supply available, a lever hoist is the simpler, lighter and more economical choice.
Choose from 250 kg to 3000 kg based on your heaviest rated load, plus a safety margin.
Select the chain length to match your required lifting height and working range before ordering.
Choose standard or 360° swivel hooks to match your rigging and attachment points.
EN13157 Certified
High-strength steel frame and gear case, built to be durable for the rugged needs of construction and maintenance rigging.
360° handle rotation with short stroke to ratchet loads easily.
Wide-throat top and bottom drop forged hooks designed to bend slowly to warn of overloads.
Load chain in alloy steel grade 80, in accordance with ISO3077 standard.
Optional caged ball bearings, cast safety latches, thrust bearings, EN818-7 chain and special surface treatment for custom needs.
What's the difference between a lever hoist and a chain block?
A lever hoist lifts, pulls and tensions loads with a ratchet handle, making it ideal for horizontal work and confined spaces. A chain block lifts vertically only. Choose based on whether your job needs multi-directional control or just straight-up lifting.
What capacities does the DELELIFT lever hoist come in?
The lever hoist series covers 500 kg to 9000 kg capacity, all with a standard 1.5 m lifting height; longer chain lengths are available on request.
Can a lever hoist pull and tension loads, not just lift?
Yes — with the ratchet handle you can lift, pull, stretch and tension loads in any direction, which is why it's widely used for rigging, line tensioning and maintenance work.
What working conditions does the lever hoist support?
Operating temperature from -40°C to +60°C, humidity below 100% RH. Do not use in water; overloading is strictly prohibited.
Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
