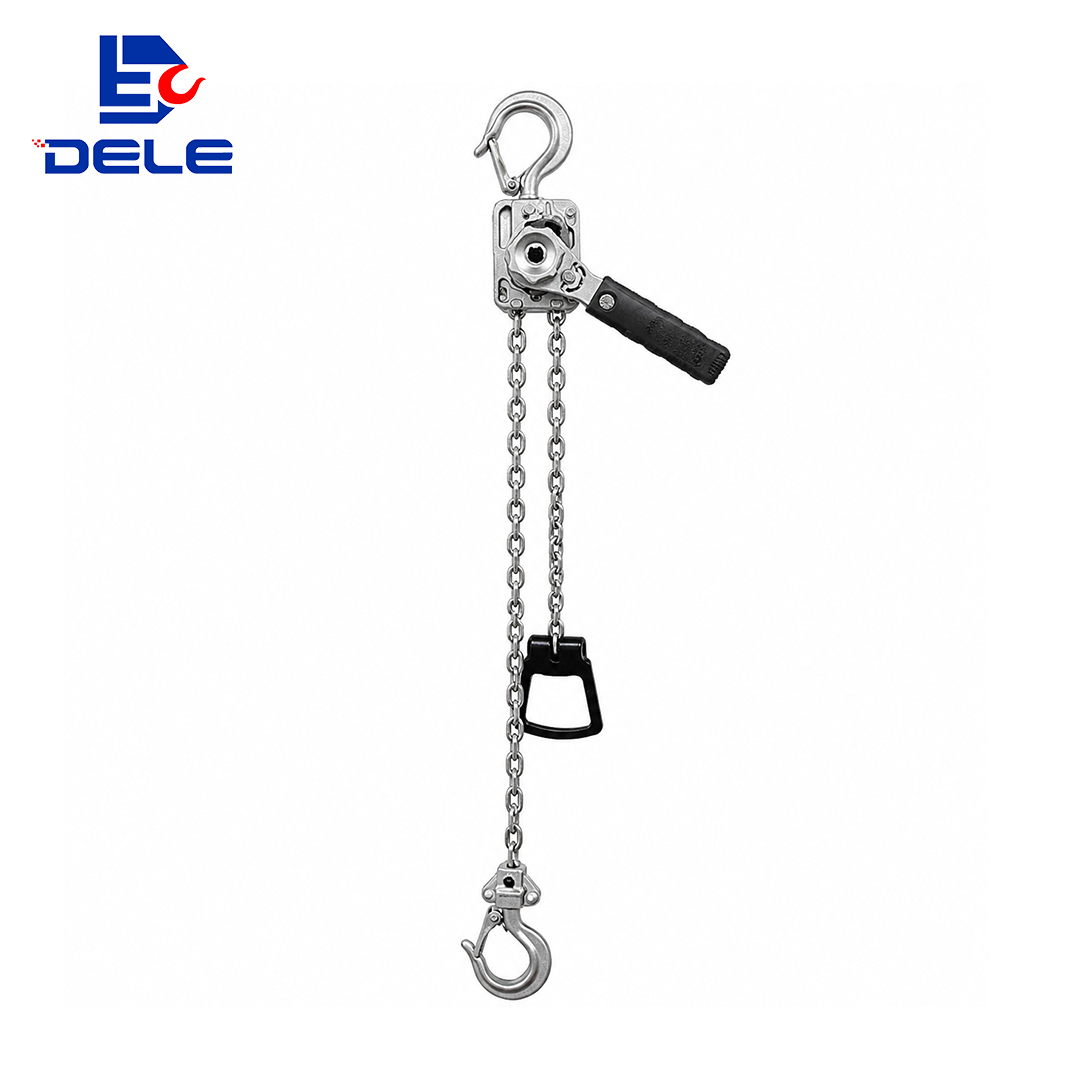

A high-strength aluminum alloy lever hoist that pairs a lightweight shell with a compact frame — built for maintenance, rigging and field operations that need portable lifting, pulling and tensioning without a power source.
The aluminum alloy lever hoist pairs a high-strength aluminum alloy shell with a compact frame design, delivering a lightweight yet durable unit for portable lifting, pulling and tensioning on site. Manufactured to EN13157, it is available in 100 kg and 150 kg capacities (supplied complete with operating kit) and is built for maintenance work, rigging, positioning and light construction — wherever a dependable, easy-to-carry tool has to go where you go.
Its 6-gear reduction system keeps the required wrench force small and shortens the lever length, while the double pawl braking system ensures smooth, reliable braking and safe load control. Thanks to its high-strength construction, the hoist passes over 1,500 EU-standard fatigue tests, so long service life is built in — see the model comparison below to confirm which capacity fits your job.
Manufactured to EN13157 standard; high-strength construction passes over ,EU-standard fatigue tests, ensuring long service life and reliability.
High-strength aluminum alloy shell with a compact frame design delivers light weight and high strength— easy to carry, store and operate on site.
The 6-gear reduction system keeps the required wrench force small and shortens the lever length, reducing operator fatigue during prolonged work.
The double pawl braking system ensures smooth, reliable braking and safe load control; available in 100 kg & 150 kg**, supplied with a complete operating kit.
Not every lifting job needs powered equipment. For portable lifting, pulling and tensioning on site — maintenance, rigging, positioning, light construction — a manual lever hoist is the lower-cost, low-maintenance answer. Certified to EN13157, the aluminum alloy lever hoist pairs a high-strength aluminum alloy shell with a compact frame: light to carry, strong for daily use. Its 6-gear reduction system cuts wrench force and shortens the lever; the double pawl braking system gives smooth, reliable braking; and the construction passes over 1,500 EU-standard fatigue tests for long service life.
Which capacity fits your job?For light maintenance and everyday positioning, choose the 100 kg unit — lighter and more compact. For heavier rigging and tensioning, the 150 kg unit adds capacity in the same lightweight body. Both come with a complete operating kit and meet EN13157.Compare: DZCompare: DA
| Model | DA-100 | DA-150 | |
| Rated Capacity(kg) | 100 | 150 | |
| Standard Lift(m) | 1.5 | 1.5 | |
| Pull to lift capacity(N) | 120 | 180 | |
| Load Chain Diameter(mm) | Φ4 | Φ4 | |
| No.of Falls | 1 | 1 | |
| Tested Load(kg) | 150 | 225 | |
| Net Weight(kg) | 1.4 | 1.5 | |
| Gross Weight(kg) | 1.5 | 1.6 | |
All dimensions in mm
| Model | A | B | C | D | E | F | H | K |
| DA-100 | 65 | 130 | 145 | 20 | 55 | 55 | 220 | 20 |
| DA-150 | 65 | 130 | 145 | 20 | 58 | 55 | 220 | 20 |
If the load only needs to move at a single point — lifting, pulling or tensioning without a power supply — the portable lever hoist is the simpler, lighter choice.
Choose 100 kg or 150 kg based on your heaviest rated load, plus a proper safety margin.
Confirm the standard chain length covers your required working height before ordering.
Ensure EN13157 compliance, and check that the supplied kit (hook, chain, handle) matches your site's needs.
Manufactured to the EN13157 standard for manual lifting, ensuring safety and market compliance.
High-strength aluminum alloy shell keeps the unit light and portable, reducing operator burden.
Compact frame design reduces weight while maintaining high strength, saving space on site.
6-Gear Reduction System — Less Operating Effort
Double Pawl Braking System — Smooth & Safe
Long Service Life — with Complete Kit
What's the difference between an aluminum alloy lever hoist and a standard lever hoist?
The aluminum alloy lever hoist uses a high-strength aluminum alloy shell and compact frame design, making it lightweight and easy to carry while keeping high strength. A standard lever hoist typically uses a heavier steel body — choose the aluminum version when portability matters.
What capacities does the aluminum alloy lever hoist come in?
It is available in 100 kg and 150 kg, both supplied with a complete operating kit.
What standard is the hoist manufactured to?
It is manufactured to EN13157, and its high-strength construction passes over 1,500 EU-standard fatigue tests for a long service life.
Can it be used for pulling and tensioning, not just lifting?
es — the lever design allows lifting, pulling and tensioning in one unit. The double pawl braking system keeps braking smooth and load control safe in every direction.
Why does the 6-gear reduction system matter?
It reduces the wrench force required and shortens the lever length, so operation is easier and less tiring, even during prolonged work.
