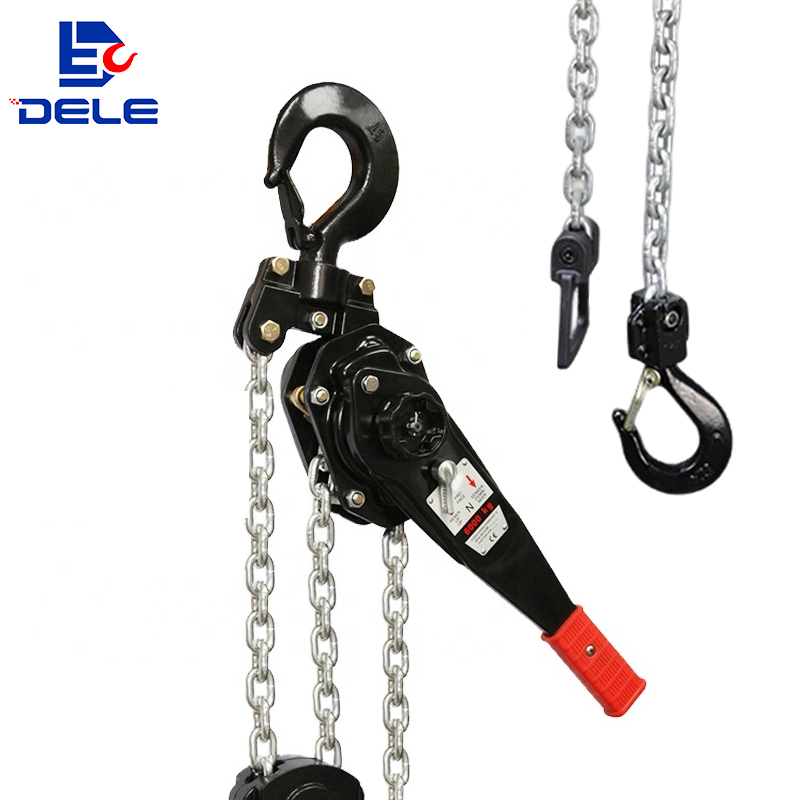

A manual lever hoist designed for lifting and pulling operations, complying with EN13157 standard, widely used for fixed-point lifting and tensioning work in various applications.
The lever hoist pairs an ergonomic handle with machined chain sprocket and gears, delivering smooth, efficient operation with easy handling for all applications. Available in 0.75–9 ton capacity and built to EN 13157, it's engineered for precise manual lifting, pulling and tensioning of loads.
It features heat-treated 35CrMo alloy steel hooks with heavy duty safety latches that rotate freely through 360°, tough 20CrMnTi gears, a galvanized grade 80 alloy steel load chain (EN 818-7, safety factor 4, T8 marked), heavy duty guide rollers to prevent chain slippage and a nylon pull ring. Every hoist is tested at 1.5 times WLL — see the specification below to confirm which model fits your application.
Heavy-duty Grade 80 alloy steel load chain with galvanized finish, complying with EN 818-7 for reliable and durable lifting performance.
35CrMo alloy steel hooks with heavy-duty safety latches, plus double pawls and heavy-duty guide rollers for enhanced lifting safety and load stability.
Machined chain sprocket and high-strength 20CrMnTi gears ensure smoother, more efficient operation and improved durability.
Ergonomic handle design and a 360° freely rotating hook provide easy operation and greater flexibility for various lifting applications.
Not every lifting job needs a powered hoist or a trolley. Where a load is lifted and lowered at one fixed station — a workshop, a warehouse, a construction site, or a maintenance bay — a hook-suspended hand chain block does the job at lower cost, with zero power supply and almost no maintenance. The DH series is built for exactly that: dependable, fixed-point manual lifting from 0.75 to 9 tons.
Which DH model fits your job? Pick by your required load. For light-duty workshop and maintenance work, the DH-0.75T and DH-1.5T keep pulling effort low. For general industrial lifting, the DH-3T is the all-rounder. For heavy loads, the DH-6T and DH-9T deliver stable, high-capacity lifting. Standard lift is 1.5 m; longer lift is available on request.
Compare: DH Lever HoistCompare: VA Lever Hoist
| Technical details | ||||||
| Model | DH-0.75T | DH-1.5T | DH-3T | DH-6T | DH-9T | |
| Capacity load | （t) | 0.75 | 1.5 | 3 | 6 | 9 |
| Standard lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Load chain Number of falls | 1 | 1 | 1 | 2 | 3 | |
| Effort required to lift max load | (N) | 220 | 240 | 330 | 360 | 380 |
| Test Load | (kg) | 1125 | 2250 | 4500 | 9000 | 13500 |
| Load chain specifications | (mm) | 6x18 | 7.1x21.2 | 9x27 | 9x27 | 9x27 |
| Net weight | (kg) | 5.3 | 8.6 | 15.2 | 23 | 43 |
| Gross weight | (kg) | 5.6 | 8.9 | 15.6 | 23.5 | 44.5 |
| Packing size | (cm) | 31.5*16*12 | 35*18*13 | 48*20*13.5 | 48*21.5*17 | 53*28*25 |
| Add 1m weight | (kg) | 0.77 | 1.1 | 1.8 | 3.6 | 5.4 |
All dimensions in mm
| Model | a | b | c | d | e | f | Hmin |
| DH-0.25T | 86 | 155 | 170 | 30 | 79 | 97 | 245 |
| DH-0.5T | 95 | 178 | 170 | 35 | 87 | 117 | 285 |
| DH-0.75T | 115 | 39 | 239 | 28 | 146 | 91 | 320 |
| DH-1.5T | 137 | 44 | 259 | 32 | 162 | 67 | 360 |
| DH-3T | 169 | 60 | 374 | 41 | 187 | 98 | 431 |
| DH-6T | 238 | 68 | 374 | 47 | 187 | 98 | 500 |
| DH-9T | 300 | 91 | 374 | 61 | 187 | 98 | 635 |
If the load only needs vertical lifting, horizontal pulling, or rope tensioning on site, the hand lever hoist handles all three with one portable unit — no power required.
Choose from 0.5–9 t based on your heaviest rated load, plus a safety margin.
Confirm the chain length covers your required lift height or pulling distance before ordering.
Select standard, explosion-proof, or stainless-steel versions and the hook type to match your site — electric power, construction, petrochemical, or mining.
Heavy-Duty Lifting Capacity
High-Strength G80 Load Chain
Robust & Durable Construction
Smooth & Efficient Operation
Enhanced Safety Design
Ergonomic & Easy Operation
What's the difference between a hand lever hoist and a manual chain block?
The hand lever hoist is operated by a ratchet lever and works at any angle for lifting, pulling, and tensioning; the manual chain block is pull-chain operated and is mainly for vertical lifting at a fixed point.
What capacities does the hand lever hoist come in?
The series covers 0.5 t to 9 t, all with a standard 1.5–3 m chain length; longer chains are available on request.
Can one hoist handle lifting, pulling, and tensioning?
Yes — a single unit covers all three working modes: vertical lifting, horizontal pulling, and rope/chain tensioning, with no power required.
What does it need to run?
Nothing but manpower — the lever-driven design needs no electricity, making it ideal for outdoor, high-altitude, and remote field work in the electric power, construction, petrochemical, and mining industries.
Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
