Technical detailsMODELSL-A-0.5TSL-A-1TSL-A-1.5TSL-A-2TSL-A-3TSL-A-5TSL-A-10TSL-A-15TSL-A-20TSL-A-30Tcapacity load（T）0.511.523510152030Lifting height（m）2.52.52.52.53333383Load chain Number of falls（mm)111112463812load chain Diameter x Pitch（mm)5X156X187X218X2410X3010X3010X3010X3010X3010X30Force

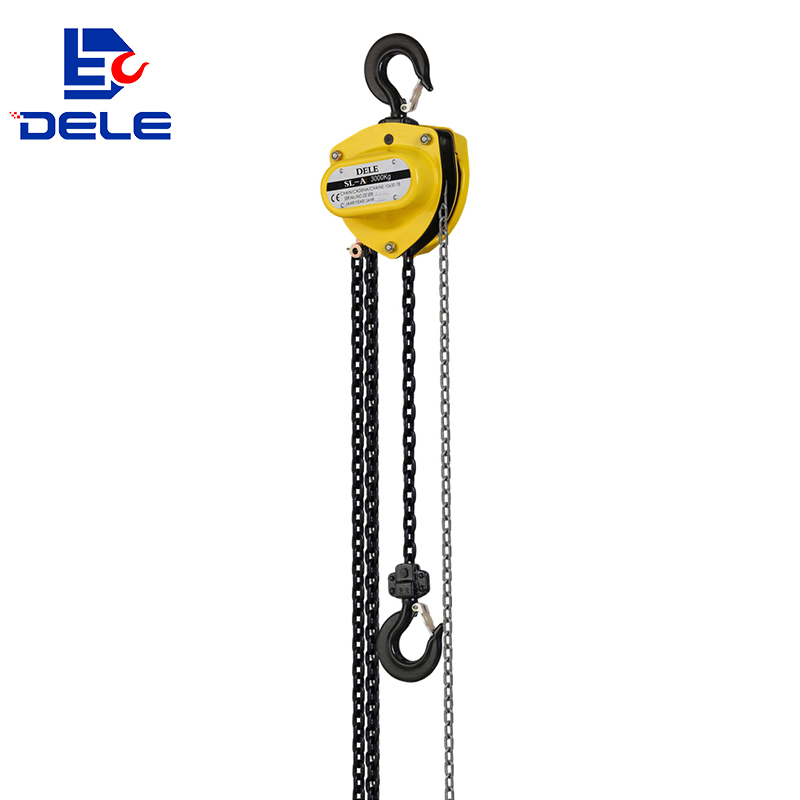

The SLA hand chain hoist adopts a multi‑support structure with optimized force distribution, delivering flexible operation and low‑failure‑rate transmission performance. Available in capacities from 0.5 ton to 30 ton, it is built for workshops, maintenance sites and construction‑site lifting tasks requiring reliable manual hoisting.
It complies with EN13157 standard and shares proven lifting‑chain technology with conventional hand chain hoists, while adding double‑pawl safety design and anti‑slip nuts — refer to below content for full‑feature details.
Reasonable force distribution ensures flexible operation and low‑failure‑rate transmission system.
Double‑pawl mechanism doubles safety factor; all nuts adopt anti‑slip lock‑nut design.
Smooth rotation with high working efficiency, requires little pulling force on hand chain.
Special crimped hand‑chain cover avoids chain tilting and snapping. Fitted with Grade‑80 galvanized load chain complying with EN 818 & EN13157, safety factor 4, capacity 0.5‑30 ton.
Not every lifting job requires electric power or trolley travelling. Where loads are lifted and lowered at fixed‑point positions — workshops, equipment maintenance sites, construction sites — a manual hand chain hoist delivers reliable performance at lower cost and with simpler maintenance than electric hoist units. The SLA hand chain hoist is built for exactly that: dependable manual fixed‑point lifting.

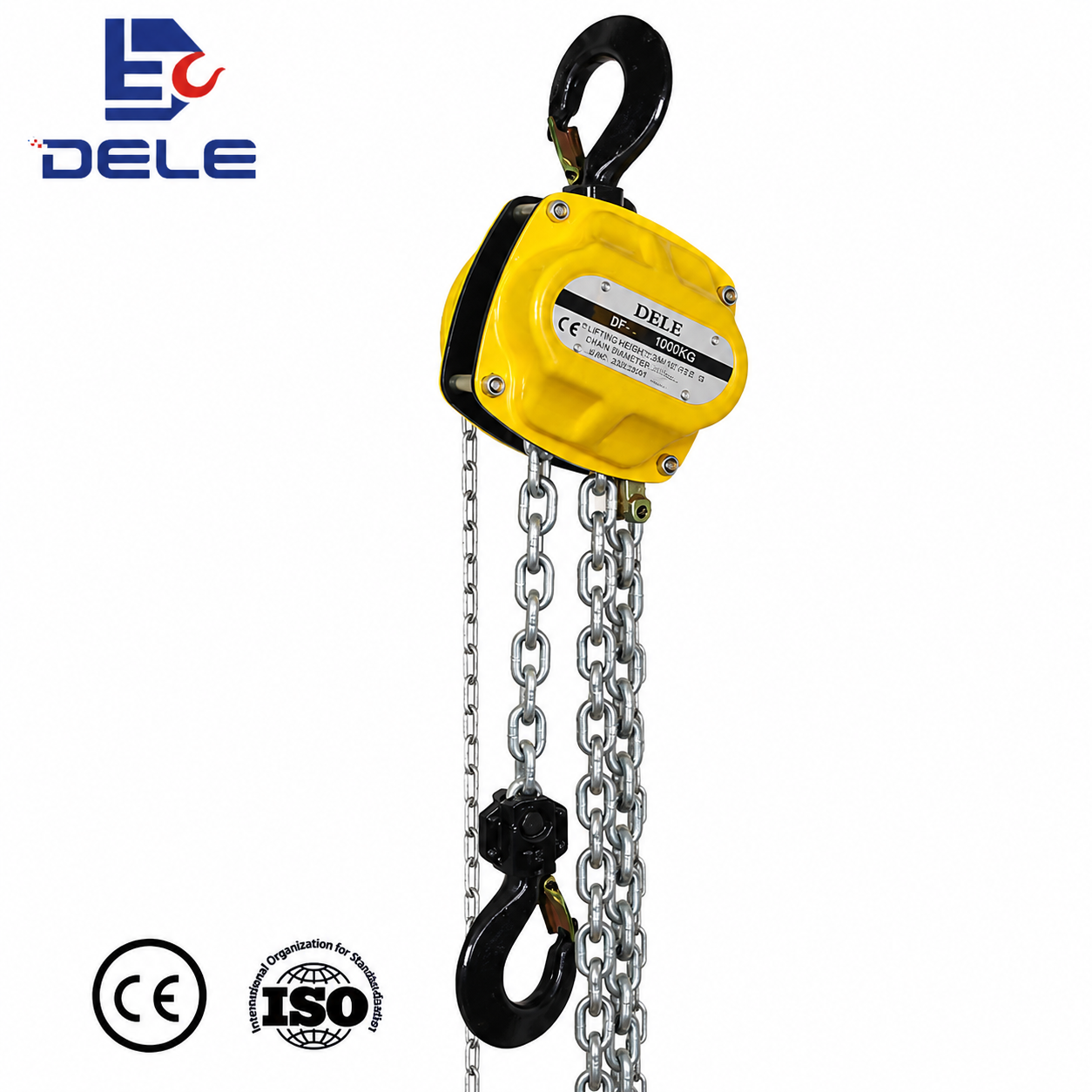

Which SLA model fits your job? If you need enhanced safety performance, select the double‑pawl SLA version for doubled safety factor. For general‑purpose stationary lifting without power supply, the standard SLA hand chain hoist is the simpler, more economical choice.Compare: DF Manual Chain HoistCompare: SLA Manual Chain Hoist
| Model | SLA-0.5T | SLA-1T | SLA-1.5T | SLA-2T | SLA-3T | SLA-5T | SLA-10T | SLA-15T | SLA-20T | SLA-30T | |
| Capacity load | （t） | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | 30 |
| Standard lfit | （m） | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 3 |
| Load chain Number of falls | （mm) | 1 | 1 | 1 | 1 | 1 | 2 | 4 | 6 | 8 | 12 |
| Load chain specifications | （mm) | 5X15 | 6X18 | 7X21 | 8X24 | 10X30 | 10X30 | 10X30 | 10X30 | 10X30 | 10X30 |
| Effort required to lift max load | （N) | 240 | 250 | 265 | 335 | 372 | 360 | 380 | 378 | 382 | 395 |
| Gross weight | (kg) | 9.8 | 12.7 | 17.0 | 20.0 | 33.0 | 42.1 | 76.7 | 136.0 | 194.0 | 322.0 |
| Net weight | （kg） | 9.3 | 12.2 | 16.5 | 19.5 | 32 | 41.1 | 75.7 | 135 | 192 | 320 |
| Packing size | (cm) | 30*19*22 | 30*19*22 | 35.5*23.5*23 | 35.5*23.5*23 | 33.5*27.5*24.5 | 44*29.5*24.5 | - | - | - | - |
All dimensions in mm
| Model | A | B | C | D | Hmin |
| SLA-0.5T | 148 | 132 | 23 | 35 | 345 |
| SLA-1T | 172 | 151 | 27 | 40 | 367 |
| SLA-1.5T | 196 | 173 | 33 | 45 | 442 |
| SLA-2T | 210 | 175 | 35 | 50 | 470 |
| SLA-3T | 255 | 205 | 39 | 55 | 548 |
| SLA-5T | 280 | 189 | 45 | 65 | 688 |
| SLA-10T | 463 | 189 | 54 | 75 | 765 |
| SLA-15T | 718 | 200 | 71 | 95 | 900 |
| SLA-20T | 840 | 200 | 82 | 106 | 950 |
| SLA-30T | 670 | 510 | 81 | 110 | 1800 |
Select SLA manual chain hoist for worksites without power supply. If electricity is available, electric hoists will deliver higher working efficiency.
Choose from 0.5‑30 ton models based on your real working load. Always reserve sufficient safety margin, never overload the hoist.
Check your actual lifting travel. Standard lift is 2.5 m / 3 m; customized load‑chain length is supported upon request.
Refer to the max‑load pulling‑force data in technical sheet. Confirm the pulling effort fits your on‑site operator’s physical condition.
Capacity ranges from 0.5 ton to 30 ton, manufactured to EN13157 standard for reliable general‑purpose lifting.
Well‑distributed force, flexible operation and low‑failure‑rate transmission system.
Double‑pawl design doubles the safety factor for safer load holding.
All locking‑proof nuts prevent loose connections during heavy‑load operation.
Smooth rotation, high working efficiency with low hand‑pull effort.
Crimped hand‑chain cover prevents chain offset and jamming, fitted with EN 818 Grade‑80 galvanized load chain, safety factor 4.
What standard does the SLA manual chain hoist comply with?
The SLA series is manufactured to EN13157, fitted with Grade‑80 load chain complying with EN 818, safety factor 4.
What capacities are available for the SLA manual chain hoist?
SLA series ranges from 0.5 ton up to 30 ton.
What is the standard lifting height?
Standard lift is 2.5 m for 0.5‑2 ton models and 3 m for 3‑30 ton models; custom lifting height is supported.
How much pulling force is required at maximum load?
Max‑load hand‑pull effort ranges from 240 N to 395 N, depending on different tonnage.
