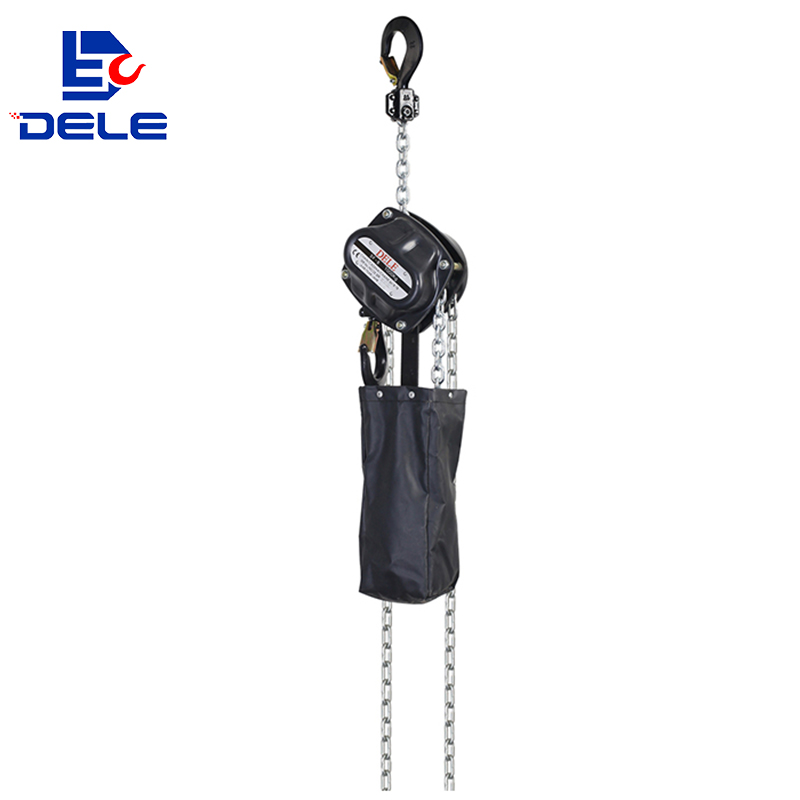

DE CHAIN HOIST

A rugged low-headroom hand chain hoist with full-metal enclosed housing, galvanized steel load chain and high-tenacity alloy steel hooks, built with anti-corrosion coating process for enhanced durability — built for confined-space lifting, industrial maintenance and harsh working environments that demand space efficiency, reliable performance and long service life, not just basic open-area fixed-point hoisting.

ModelDE
Rated capacity500-3000 kg
Standard Lifting height3 m
Warranty1 year
Minimum Order Quantity5 pieces
StandardEN13157

Product Overview

The DE series hand chain hoist pairs a compact low-headroom hoist body with a precision gear transmission mechanism, giving the unit reliable vertical lifting performance with smooth operation and low hand pull force. Available in capacities ranging from 500 kg to 3000 kg with a 3-metre standard lifting height, it is engineered for workshop assembly, equipment maintenance, construction sites and open-air working environments where dependable manual load handling is essential.

It is built with high-quality materials and enhanced by additional coating and painting for superior corrosion resistance. Its robust full metal enclosure and sealed protection for the chain guide and gear train effectively protect internal components from damage in harsh conditions. Fitted with a precision-finished galvanized steel load chain and a high-tenacity alloy steel hook, it ensures smooth running, accurate operation and ultimate safety — the hook will deform gradually under overload rather than breaking suddenly.


Key Features

01

Full-Metal Sealed Construction for Harsh Conditions

Robust full-metal enclosure with fully protected chain guide and gear train, shielding internal components from damage and harsh working conditions.

02

Enhanced Corrosion Resistance

All components use premium materials with extra coating and painting. The galvanized steel load chain is precision-matched to the hoist body for smooth, long-lasting operation.

03

Low-Headroom Compact Design

Optimized low-headroom profile maximizes vertical space utilization and increases effective lifting distance, ideal for low-ceiling workshops and confined sites.

04

High-Safety Overload Protection

Precision-finished hard load chain ensures smooth running. High-tenacity alloy steel hooks deform gradually under overload instead of sudden fracture, prioritizing operator safety.

Why Choose a Hand Chain Hoist?

Not every lifting job requires electric power or motorized travel. Where a load is lifted and lowered at one fixed station — workshop assembly lines, maintenance bays, remote construction sites — a hand chain hoist does the job at lower upfront cost and with far less maintenance than an electric hoist unit. The DE series is built for exactly that: dependable, compact fixed-point lifting with low-headroom performance.


Which DE model fits your job? If your ceiling clearance is limited, the full DE series features a low-headroom profile that maximizes effective lifting distance in tight vertical spaces. If you need lightweight, highly portable lifting for light-duty precision tasks, the HSH and DE-500 offer compact dimensions and easy one-person handling. If you require medium to heavy load capacity for routine industrial and construction lifting, the DE-2000 and DE-3000 deliver robust build quality and stable performance for daily heavy use.
Compare: DE Manual Chain Hoist Compare: DF Manual Chain Hoist





DE Technical Specifications

ModelHSHDE-500DE-1000DE-2000DE-3000
Capacity load(kg)500kg500kg2000kg3000kg
Standard lift(m)3333
Load chain Number of falls1111
Effort required to lift max load(N)240305340370
Running testload(kg)750150030004500
Load chain diameter*Number of falls(mm)5*156*188*2410*30
Hang chain diameter*Number of falls(mm)5*255*255*255*25
Net weight(kg)6.7121827
Packing weight(kg)712.519.628
Add 1m  load chain N.W(kg/m)0.5410.771.361.36
Add 1m  hand chain N.W(kg/m)0.90.90.90.9
Dimensions(mm)a152182206246
b34405262
c118145170204
d31354045
e119145157107
f65798183
Hmin311361413510





Applications

Factory Workshops
Factory Workshops
Construction Site
Construction Site
Warehousing & Logistics
Warehousing & Logistics
Mining & Outdoor Utility Operations
Mining & Outdoor Utility Operations

How to Select the Right DE Model

01

Confirm your application type, not just lift

If the load only needs vertical lifting at a fixed point, the standard hook-suspended DE hand chain hoist is the simpler, more cost-effective choice. It can also be paired with a manual trolley for horizontal travel.

02

Match capacity to your load

Choose from 500 kg to 3000 kg based on your heaviest working load, plus an appropriate safety margin.

03

Check your available headroom clearance

Confirm the minimum headroom dimension (Hmin) of the selected model fits your site’s vertical space to maximize effective lifting distance.

04

Confirm lifting height & chain configuration

Standard lifting height is 3 m for all models; custom extended load chain and hand chain lengths are available on request.

Product Advantages

  • Robust full metal housing effectively shields internal gears and chain mechanism from impact, dust and harsh conditions for extended service life.

  • All components adopt premium materials with additional coating and painting process, significantly improving anti-corrosion and weather resistance.

  • Optimized low headroom dimension maximizes vertical space utilization and increases effective lifting distance, ideal for low-ceiling workplaces.

  • Precision-machined gear transmission mechanism delivers smooth rotation, high mechanical efficiency and low hand pull effort for effortless operation.

  • Hardened galvanized steel load chain with precision finishing ensures smooth engagement, accurate movement and excellent wear resistance.

  • High-tenacity anti-aging alloy steel hook deforms gradually under overload instead of sudden fracture, prioritizing operator safety at all times.



Frequently Asked Questions

From what lifting scenarios can the DE hoist work?

It is used for vertical lifting and load holding in various working scenarios — workshop assembly, equipment maintenance, low-ceiling warehouses and outdoor jobsites without power access.


What capacities does it come in?

The DE series covers 500 kg, 1000 kg, 2000 kg and 3000 kg per unit, with the lightweight HSH model available for light-duty precision lifting.


How does the safety mechanism work?

It adopts a fully enclosed structure to protect internal gears and chain parts from external damage. The high-tenacity alloy steel hook deforms gradually under overload rather than breaking suddenly, prioritizing operator safety.


What lifting heights are available?

Standard lifting height is 3 m for all models; customized extended lengths for both load chain and hand chain are available upon request.


What material and protection features does it have?

All components are made of premium materials with additional coating and painting for enhanced corrosion resistance. It is fitted with a hardened galvanized steel load chain and a robust full metal enclosure for reliable performance in harsh conditions.





Request a Quote for your Lifting Equipment

Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
