A heavy-duty 360° rotatable hand chain guide hand chain hoist manufactured in strict compliance with EN13157 standard, equipped with fully enclosed stamped steel housing, 35CrMo heat-treated alloy steel hooks and high-strength Grade 80 galvanized load chain, with a capacity range from 0.25 ton to 50 ton — built for confined-space lifting, side operation, horizontal pulling & tensioning and harsh industrial scenarios that demand flexible operation and enhanced operator safety, not just standard vertical fixed-point hoisting.

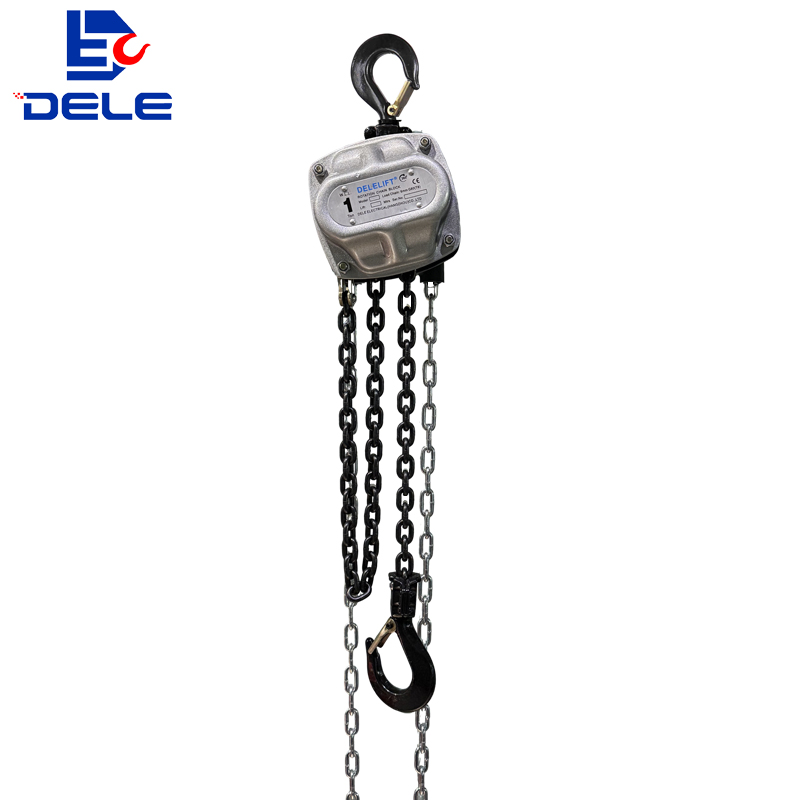

The DF‑series 360° rotatable hand chain hoist combines a compact hoist body with a revolutionary 360‑degree rotating hand‑chain guide, giving the unit flexible multi‑position operation including horizontal pulling in addition to vertical lifting. Available in capacities from 0.25 t to 50 t with a standard 3 m lifting height, it’s built for workshops, warehouses, construction sites and assembly lines where loads need lifting, pulling or tensioning in confined or harsh working conditions.
It shares core lifting‑component design across the whole DF product range, but features 360° multi‑angle operation — see the specification table below to confirm which model fits your application.
Revolutionary 360° rotating hand‑chain guide enables operation from virtually any position, supporting vertical lifting as well as horizontal pulling & tensioning; operators can stay away from hazardous load zones.
Heat‑treated 35CrMo hooks & 20CrMnTi gears, matched with EN818‑7 Grade‑80 galvanized load chain for great toughness and corrosion resistance.
Overload protection, hook safety latches and anti‑slip guide rollers; each hoist is 1.5×WLL load‑tested for safe operation.
Compact enclosed stamped‑steel housing shields inner parts from harsh site conditions, ergonomic design for easy operation.
Not every lifting task only requires simple vertical hoisting. For jobs involving pulling, tensioning or operation in narrow‑space work‑sites — workshops, maintenance bays, construction sites — the DF‑series 360° rotatable hand chain hoist delivers flexible multi‑position operation at competitive cost with reliable durability. The DF is engineered for exactly that: versatile lifting & pulling performance.
Which DF model fits your job? If you need multi‑angle operation for vertical lifting plus horizontal pulling, select the 360° rotatable DF hand chain hoist. If you require basic fixed‑point vertical hoisting only, choose the standard DF hand chain hoist as a more economical option.Compare:360° DF Manual Chain Hoist Compare: DF Manual Chain Hoist
| Model | 360° DF-0.25T | 360° DF-0.5T | 360° DF-1T | 360° DF-1.5T | 360° DF-2T | 360° DF-3T | 360° DF-5T | 360° DF-10T | 360° DF-15T | 360° DF-20T | 360° DF-30T | 360° DF-50T | |
| Capacity load | (t) | 0.25 | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 50 |
| Standard lift | (m) | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 3 | 6 | 8 | 12 | 16 | |
| Effort required to lift max load | (N) | 220 | 240 | 305 | 340 | 360 | 370 | 370 | 380 | 360 | 380 | 400 | 400 |
| Test load | (kg) | 375 | 750 | 1500 | 2250 | 3000 | 4500 | 7500 | 15000 | 22500 | 30000 | 45000 | 75000 |
| Load chain specifications | (mm) | 4x12 | 5x15 | 6x18 | 8x24 | 8x24 | 10x30 | 10x30 | 10x30 | 10x30 | 10x30 | 10x30 | 11.2x31 |
| Hand chain specifications | (mm) | 3x16.5 | 5x25 | 5×25 | 5x25 | 5x25 | 5×25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 | 5x25 |
| Net weight | (kg) | 4 | 6 | 11 | 17 | 17 | 26 | 40 | 73 | 160 | 176 | 258 | 620 |
| Grossweight | (kg) | 4 | 6 | 12 | 18 | 18 | 27 | 41 | 74 | 180 | 200 | 285 | 670 |
| Packing size | (cm) | 24*12.5*12.5 | 27.5*14.5*15.5 | 28*17*18.5 | 31*17.5*22 | 31*17.5*22 | 39*19*26 | 44*24*16 | 58*46.5*24.5 | 47*42*70 | 47*42*70 | 58*44*73 | 102*60*100 |
| Add 1m load chain weight | (kg) | 0 | 1 | 1 | 1 | 1 | 2 | 4 | 7 | 13 | 18 | 26 | 32 |
| Add 1m hand chain weight | (kg) | 0 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
All dimensions in mm
| Model | a | b | c | d | e | f | Hmin |
| 360° DF-0.5T | 122 | 35 | 118 | 22 | 119 | 65 | 311 |
| 360° DF-1T | 152 | 44 | 145 | 30 | 145 | 79 | 361 |
| 360° DF-1.5T | 176 | 46 | 170 | 32 | 157 | 81 | 413 |
| 360° DF-2T | 176 | 49 | 170 | 34 | 157 | 81 | 413 |
| 360° DF-3T | 216 | 60 | 204 | 41 | 167 | 83 | 431 |
| 360° DF-5T | 216 | 68 | 204 | 47 | 167 | 83 | 660 |
| 360° DF-10T | 244 | 91 | 204 | 61 | 167 | 83 | 705 |
| 360° DF-15T | 441 | 120 | 78 | 400 | 222 | 110 | 1094 |
| 360° DF-20T | 429 | 125 | 105 | 376 | 222 | 113 | 1100 |
| 360° DF-30T | 533 | 150 | 105 | 373 | 220 | 109 | 1139 |
| 360° DF-50T | 770 | 660 | 130 | 373 | 279 | 109 | 1652 |
If you need horizontal pulling & tensioning besides vertical lifting, choose the 360° rotatable model; for basic vertical lifting only, the standard hand chain hoist will suffice.
Select capacity from 0.25‑50 ton according to your maximum working load, reserve proper safety margin.
Define required lifting height, extra chain length can be customized upon request.
Check working environment, select galvanized load chain for corrosion‑prone outdoor or humid applications.
360° rotating hand‑chain guide supports vertical lifting and horizontal pulling, keeping operators out of load danger zones.
Heat‑treated 35CrMo hooks and 20CrMnTi gears, equipped with heavy‑duty safety latches for high strength.
Grade‑80 T8 galvanized load chain complying with EN 818‑7, safety factor 4, good corrosion resistance.
Built‑in overload protection, anti‑slip guide rollers; each hoist is 1.5×WLL load‑tested.
Precision‑machined sprocket & gears plus ergonomic design for smooth and easy handling.
Enclosed stamped‑steel housing and steel gear case, compact size adapts to various working conditions.
From what positions can the DF 360° hoist lift?
It can lift and move loads from virtually any position — operators can work above the load, in confined spaces or from the side of the load. The 360° rotating hand chain guide also allows horizontal pulling and tensioning.
What capacities does it come in?
The DF 360° series covers 0.25t, 0.5t, 1t, 1.5t, 2t, 3t, 5t, 10t, 15t, 20t, 30t and 50t per unit.
How does the safety mechanism work?
The hoist is fitted with an overload protection system. Suspension and load hooks are made of 35CrMo alloy steel with heavy-duty safety latches, and can rotate freely 360°. All hoists are tested at 1.5 times of WLL.
What lifting chain specifications are available?
Grade 80 alloy steel load chain with galvanized finish for corrosion resistance (complies with EN 818, safety factor 4), marked with T8 marks as per EN 818-7. Chain sizes range from 4×12 mm up to 11.2×31 mm with multiple falls options.
What is it made of?
It is manufactured to EN13157 standard. Gears are made of 20CrMnTi for excellent toughness and strength. The enclosed robust stamped steel housing protects all internal components even in the toughest conditions. Machined chain sprocket and gears deliver smooth and efficient operation.
Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
