The parameter of performanceModel0.5t1t2t3tS.W.L.KN0.5123Test Load KN6.12512.2524.536.75Cable dia.(mm)x L.(m)Φ6.3X40Φ8X40Φ9x40Φ12.5X40Speed ratio4.33:112.19:122.68:129.16:1The max,handle length mm350350350350Hang pressure load N120120120120Overall dimension mmAΦ60Φ76Φ90Φ100BΦ140Φ175Φ

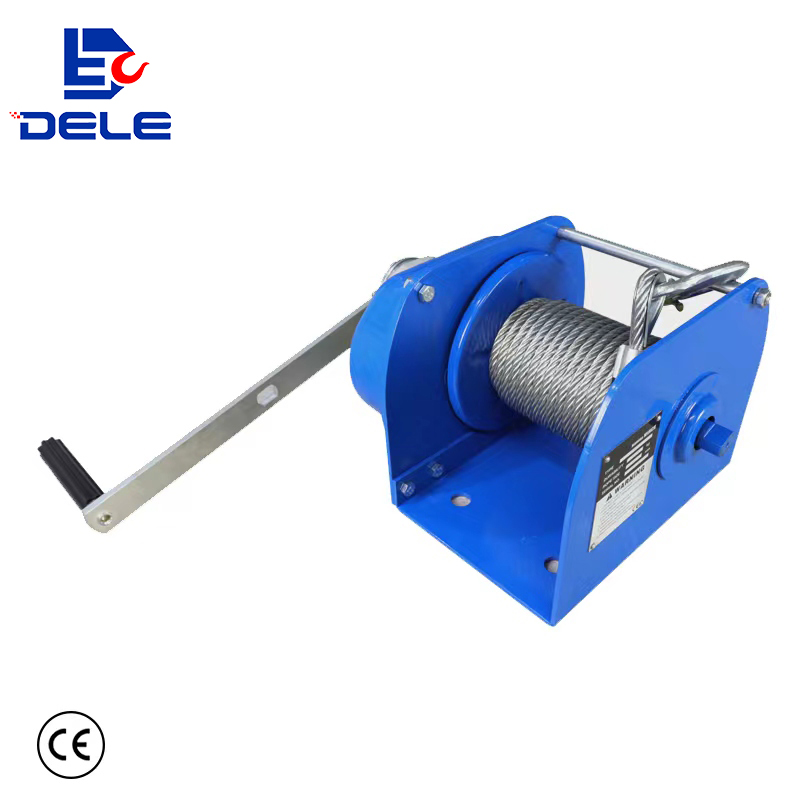

The DL-VW manual heavy-duty winch combines a compact and firm structure with high-quality alloy-steel gears and other core components, given special heat treatment for durability. Its fully automatic brake holds the load in position anytime the handle is released. The lever handle may be operated in a full circle or swung at any angle in any position of the circle — a unique advantage in narrow spaces. Available in 0.5t, 1t, 2t and 3t models, it is built for reliable manual pulling where power is unavailable.
The sealed gear box and braking mechanism keep foreign matter out, protecting normal operation. The handle uses a free-adjustable structure to set its length as needed. The large ratchet holds more wire rope — from Φ6.3 to Φ12.5 mm in 40 m lengths — making the winch well suited to deep-well operation and long-distance drawing. Speed ratios range from 4.33:1 to 29.16:1, with a 350 mm maximum handle length and a hand pressure of only 120 N.
High-quality alloy steel components with special heat treatment ensure strength and durability.
The brake automatically holds the load in position when the handle is released.
360° lever operation and free-angle swinging provide excellent maneuverability in narrow spaces.
Sealed gear and brake mechanisms prevent contamination, while the large ratchet accommodates more wire rope for deep-well and long-distance pulling.
Not every pulling job has power on site. Where a load must be held and pulled by hand — in a narrow space, on a deep-well job, or where no electricity is available — a manual winch keeps the load under your direct control. The DL-VW is built for exactly that: a compact, firm alloy-steel body with a fully automatic brake that holds the load the moment the handle is released.
Which DL-VW model fits your job? For light pulling, the 0.5t and 1t models offer lower speed ratios (4.33:1 / 12.19:1) and lighter wire rope (Φ6.3 / Φ8 mm). For heavier loads, the 2t and 3t models use higher ratios (22.68:1 / 29.16:1) with Φ9 / Φ12.5 mm rope — all at only 120 N hand pressure and a 350 mm handle. The lever handle works in a full circle or at any angle, the sealed gear box keeps dirt out, the handle length is freely adjustable, and the large ratchet holds 40 m of rope for deep-well and long-distance drawing. Compare: DL-VWCompare: DL-W
| Model | Unit | DL-VW-0.5T | DL-VW-1T | DL-VW-2T | DL-VW-3T | |
| Rated capacity | (t) | 0.5 | 1 | 2 | 3 | |
| Test load | (kN) | 6.125 | 12.25 | 24.5 | 36.75 | |
| Cable dia. × L | (mm×m) | Φ6.3×40 | Φ8×40 | Φ9×40 | Φ12.5×40 | |
| Speed ratio | — | 4.33:1 | 12.19:1 | 22.68:1 | 29.16:1 | |
| Max. handle length | (mm) | 350 | 350 | 350 | 350 | |
| Hand pressure load | (N) | 120 | 120 | 120 | 120 | |
| Net weight | (kg) | 14.4 | 19.7 | 25.1 | 44.3 | |
All dimensions in m
| Dimensions(mm) | A | (mm) | Φ60 | Φ76 | Φ90 | Φ100 |
| B | (mm) | Φ140 | Φ175 | Φ190 | Φ230 | |
| C | (mm) | 150 | 154 | 195 | 205 | |
| D | (mm) | 100 | 110 | 155 | 155 | |
| E | (mm) | Φ15 | Φ18 | Φ18 | Φ18 | |
| F | (mm) | 403 | 443 | 490 | 549 | |
| H | (mm) | 182 | 214 | 230 | 296 | |
| I | (mm) | 130 | 170 | 170 | 170 | |
| J | (mm) | 245 | 266 | 300 | 365 | |
| M | (mm) | 178 | 191 | 302 | 356 | |
| N | (mm) | 57.5 | 48 | 44 | 77 | |
| P | (mm) | 39 | 38.5 | 43 | 68.5 |
If no power is available or the job must stay under direct hand control, the DL-VW manual winch is the right choice — its fully automatic brake holds the load the moment the handle is released.
Choose from 0.5t, 1t, 2t and 3t based on your heaviest rated load, plus safety margin.
Confirm the required pull against wire rope of Φ6.3, Φ8, Φ9 or Φ12.5 mm, all supplied in 40 m lengths for deep-well and long-distance drawing.
Pick the ratio that fits your force: 4.33:1 / 12.19:1 for the lighter models, 22.68:1 / 29.16:1 for the 2–3t units — all at only 120 N hand pressure and a 350 mm handle.
High-quality alloy steel components with special heat treatment ensure strength and durability.
The brake automatically holds the load when the handle is released.
The lever supports full-circle and multi-angle operation, ideal for narrow spaces.
Sealed mechanisms prevent foreign matter from entering and ensure reliable operation.
The handle length can be freely adjusted for greater operating flexibility.
The large ratchet accommodates more wire rope, suitable for deep-well and long-distance pulling.
What's special about the DL-VW brake?
It uses a fully automatic brake — the load remains in position anytime the handle is released, so the load stays held even if you let go.
What capacities does the DL-VW come in?
The range covers 0.5t, 1t, 2t and 3t, with test loads of 6.125, 12.25, 24.5 and 36.75 kN respectively.
Can it work in narrow spaces?
Yes — the lever handle may be operated in a full circle or swung at any angle in any position of the circle, which is a unique advantage in narrow space.
How much hand pressure is needed?
Only 120 N across the whole range, with a 350 mm maximum handle length. Speed ratios rise from 4.33:1 on the 0.5t model to 29.16:1 on the 3t model.
What wire rope does it use?
Rope diameter is Φ6.3, Φ8, Φ9 or Φ12.5 mm, all in 40 m lengths. The large ratchet holds more rope, making the winch suitable for deep-well operation and long-distance drawing.
