Part No.Capacity(kg)B/S (kg)Gear RatioWay/SpeedCableN.W.(kg)DL-W62724083.2:11 way or 2 wayφ4mmx8m2.5DL-W83625443.2:11 way or 2 wayφ4mmx8m2.5DL-W104546754.1:12 way/1 speedφ4mmx10m3.67DL-W125448254.1:12 way/1 speedφ4mmx10m3.67DL-W146409004：12 way/1 speedφ5mmx10m4.3DL-W1670010804：12 way/1 speedφ

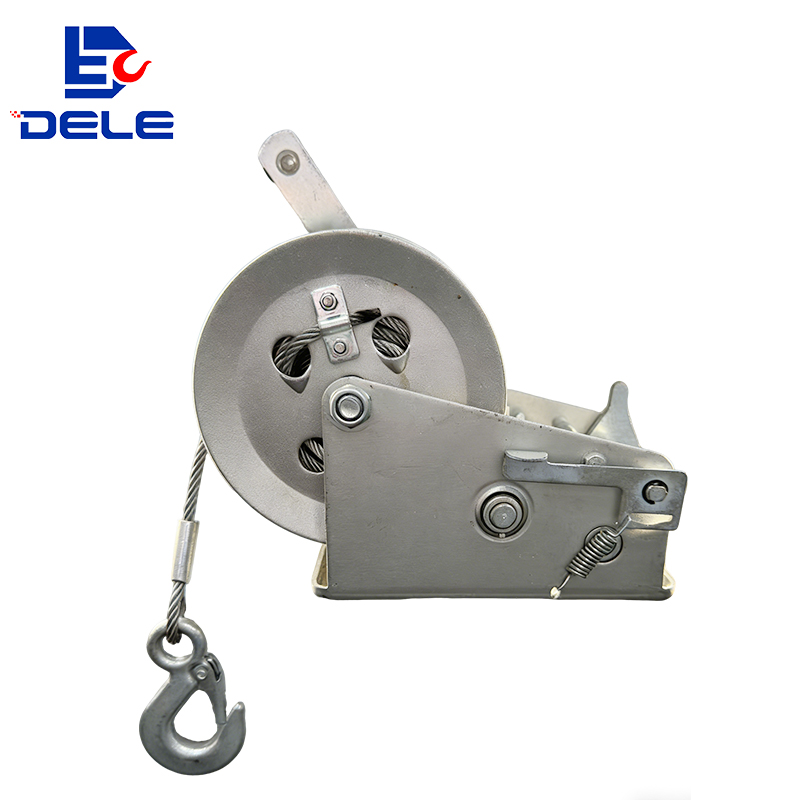

The hand winch with wire rope is built for accurate, reliable pulling in light-duty applications. Its body is made by steel stamping, with edge polish, heat treatment and anti-corrosion treatment for durable, smooth operation. Available from DL-W6 at 600 LBS (408 kg) up to DL-W35 at 3500 LBS (2385 kg), it covers a wide range of small pulling and lifting tasks — from boat trailers and garden machinery to light equipment positioning.
The winch uses wire rope of Φ4 mm × 8 m / 10 m, Φ5 mm × 10 m or Φ6 mm × 10 m depending on model. Gear ratios range from 3.2:1 on the light units up to 4.4:1 / 9.3:1 dual ratios on the heavier models, with 1-way or 2-way and single or dual speed options. Net weight runs from just 2.5 kg up to 8.7 kg, keeping the winch portable and easy to mount.
Available from 600 to 3,500 LBS, suitable for various pulling and lifting applications.
Steel-stamped components with accurate processing ensure reliable strength and consistent performance.
Polished edges and heat-treated components improve durability and safe handling.
Special anti-corrosion treatment helps protect the surface for long-term use in demanding environments.
Not every lifting and pulling job needs a powered winch. Where a load must be raised, pulled or positioned by hand — on a maintenance bay, in equipment installation or where no power is available — a hand winch gives you direct, accurate control. The hand winch with wire rope is built for exactly that lifting duty: a steel-stamped body, edge polished, heat treated and anti-corrosion treated, for smooth, durable operation.
Which DL-W model fits your job? For light lifting, the DL-W6 to DL-W12 (600–1200 LBS / 408–825 kg) use Φ4 mm rope with 3.2:1 or 4.1:1 ratios. For heavier loads, the DL-W14 to DL-W35 (1400–3500 LBS / 900–2385 kg) step up to Φ5 mm or Φ6 mm rope with 4:1 up to 4.4:1 / 9.3:1 dual ratios, in 2-way single or dual speed versions. All weigh just 2.5–8.7 kg, portable and easy to mount. Compare: DL-WCompare: DL-C
| Model | Rated capacity (LBS) | B/S (kg) | Cable | Gear Ratio | Way/Speed | Net Weight(kg) |
| DL-W6 | 272 | 408 | φ4mmx8m | 3.2:1 | 1 way or 2 way | 2.5 |
| DL-W8 | 362 | 544 | φ4mmx8m | 3.2:1 | 1 way or 2 way | 2.5 |
| DL-W10 | 454 | 675 | φ4mmx10m | 4.1:1 | 2 way/1 speed | 3.67 |
| DL-W12 | 544 | 825 | φ4mmx10m | 4.1:1 | 2 way/1 speed | 3.67 |
| DL-W14 | 640 | 900 | φ5mmx10m | 4：1 | 2 way/1 speed | 4.3 |
| DL-W16 | 700 | 1080 | φ5mmx10m | 4：1 | 2 way/1 speed | 4.3 |
| DL-W18 | 800 | 1200 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.2 |
| DL-W20 | 900 | 1350 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.3 |
| DL-W25 | 1100 | 1650 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.3 |
| DL-W30 | 1360 | 2040 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
| DL-W32 | 1455 | 2180 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
| DL-W35 | 1590 | 2385 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
| Model | Rated capacity (LBS) | B/S (kg) | Cable | Gear Ratio | Way/Speed | Net Weight(kg) |
| DL-W6 | 272 | 408 | φ4mmx8m | 3.2:1 | 1 way or 2 way | 2.5 |
| DL-W8 | 362 | 544 | φ4mmx8m | 3.2:1 | 1 way or 2 way | 2.5 |
| DL-W10 | 454 | 675 | φ4mmx10m | 4.1:1 | 2 way/1 speed | 3.67 |
| DL-W12 | 544 | 825 | φ4mmx10m | 4.1:1 | 2 way/1 speed | 3.67 |
| DL-W14 | 640 | 900 | φ5mmx10m | 4：1 | 2 way/1 speed | 4.3 |
| DL-W16 | 700 | 1080 | φ5mmx10m | 4：1 | 2 way/1 speed | 4.3 |
| DL-W18 | 800 | 1200 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.2 |
| DL-W20 | 900 | 1350 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.3 |
| DL-W25 | 1100 | 1650 | φ5mmx10m | 4:1/8:1 | 2 way/2 speed | 5.3 |
| DL-W30 | 1360 | 2040 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
| DL-W32 | 1455 | 2180 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
| DL-W35 | 1590 | 2385 | φ6mmx10m | 4.4:1/9.3:1 | 2 way/2 speed | 8.7 |
If no power is available or the load must stay under direct hand control, the DL-W hand winch with wire rope is the right choice — accurate lifting and pulling at low cost.
Choose from 600 to 3500 LBS (408–2385 kg) based on your heaviest rated load, plus safety margin.
Confirm the required pull against Φ4, Φ5 or Φ6 mm rope in 8 m or 10 m lengths depending on model.
Pick the ratio that fits your force: 3.2:1 / 4.1:1 on the light models, 4:1 up to 4.4:1 / 9.3:1 dual ratios on the heavier units — in 1-way or 2-way, single or dual speed versions.
Precision manufacturing ensures stable and reliable lifting performance.
High-strength steel stamping provides a robust and durable structure.
Fine edge polishing creates a smooth surface and reduces burrs and wear.
Heat-treated components offer improved strength, hardness, and fatigue resistance.
Effective anti-corrosion treatment protects against rust and extends service life.
Available in 600–3500 LBS capacities to meet different lifting requirements.
What manufacturing features ensure accuracy and durability?
The winch body is fabricated by steel stamping, with edge polishing, through-hardening and surface anti-corrosion treatment, delivering dimensional accuracy, smooth operation and extended service life under lifting and pulling loads.
What capacity range does the DL-W series cover?
Rated capacity spans 600 to 3500 LBS (408–2385 kg), covering light manual hoisting up to medium-duty pulling applications.
What wire rope is specified?
Wire rope diameter is Φ4, Φ5 or Φ6 mm according to model, supplied in 8 m or 10 m working lengths.
What transmission ratios and speed configurations are offered?
Gear ratios range from 3.2:1 on the light-duty units to 4.4:1 / 9.3:1 dual ratios on the heavier models, configurable in single-direction or bidirectional, single-speed or dual-speed execution.
How portable is the unit?
Net weight ranges from 2.5 kg to 8.7 kg, preserving a low-inertia, mountable assembly for site and workshop use.
