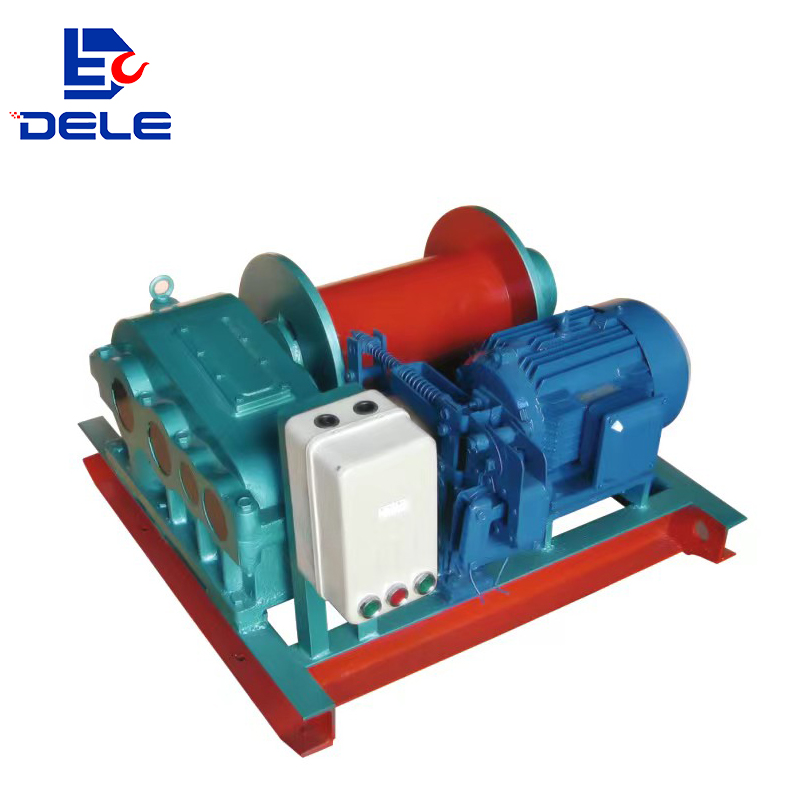

The DLJM building electric winch is mainly used for lifting, disassembling, moving and installing points on building sites, as well as in digging operations and workshops. With strong pulling force and orderly wire-rope winding, it is safe and reliable. Available in models from 1t to 20t, rated at 12 m/min on the smaller units and 8 m/min on the heavier models, it covers a broad range of site lifting and pulling tasks.

The winch adopts a four-axis transmission (five-axis on the 16–20t unit), with gear ratios of 90:1, 175:1 and 250:1. Wire rope diameter ranges from 9.3 mm to 32 mm, with rope capacity from 100 m up to 150 m. Braking is provided by electromagnetic brake on the 1–2t models and hydraulic pressure brake on the 3–20t units. Motor output spans 5.5 kW to YZR 45 kW, and machine weight from 200 kg to 4000 kg, with overall size from 800×700×450 mm up to 2200×2200×1350 mm.

Why Choose a DLJM Building Electric Winch?

Not every site lifting job needs a chain hoist. Where a heavy load must be pulled, lifted, disassembled or moved along a fixed point on a building site, in digging operations or in a workshop, a robust electric winch does the job with strong pulling force. The DLJM is built for exactly that: safe, reliable winching where wire rope winds in order.

Which DLJM model fits your job? For light-to-medium pulling on general construction points, the 1–2t units at 12 m/min with electromagnetic braking are the simpler, economical choice. For heavier lifting and longer rope runs on large sites, the 3–20t units at 8 m/min with hydraulic pressure braking deliver the required force, with rope capacity up to 150 m and wire rope up to 32 mm.Compare: DLJMCompare: DKDJ
