A heavy-duty geared electric trolley mounted electric chain hoist that travels along I-beam runways — built for monorail cranes and single-girder systems that demand reliable horizontal transfer and heavy-load vertical lifting, with rated capacities covering 7.5t to 25t.

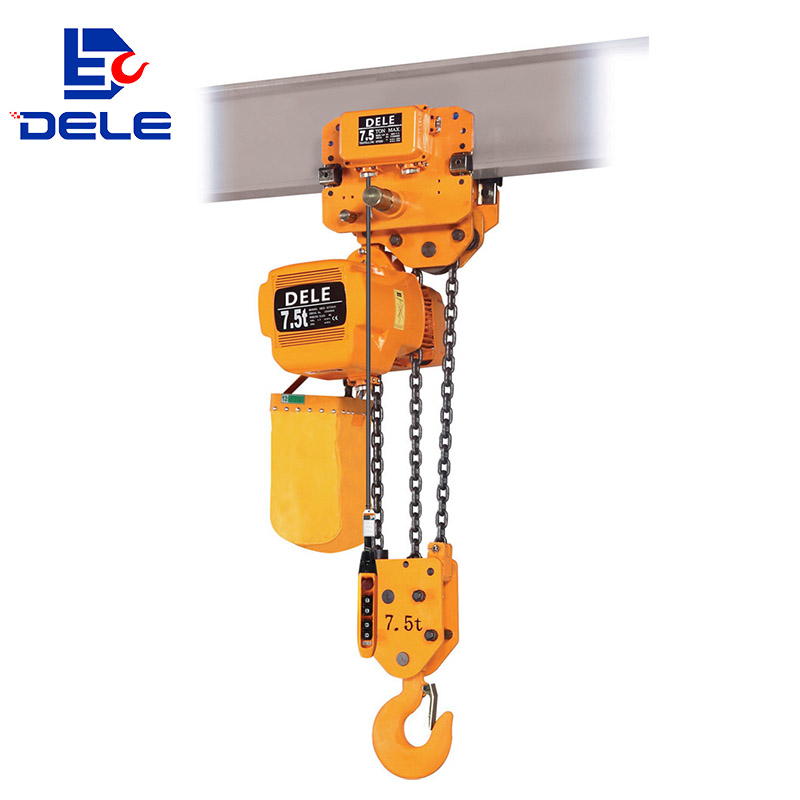

The DLEDP electric chain hoist with electric trolley pairs a heavy-duty chain hoist body with a geared electric trolley, giving the unit powered horizontal travel along an I-beam in addition to vertical lift. Available in capacities from 7.5 ton to 25 ton with a standard 3 m lifting height, it's built for monorail cranes, single-girder crane runways, and assembly lines where loads need to move along a fixed path, not just up and down.
It shares its reliable lifting mechanism with low headroom electric chain hoist, but adds powered trolley travel — see the comparison below to confirm which fits your installation.
Built-in clutch provides emergency overload protection, allowing the motor to slip under abnormal loads and helping protect the hoist from damage.
Equipped with limit switch, phase sequence protection, emergency stop button and side magnetic brake for safer and more reliable operation.
Adopts Japan FEC80 heat-treated alloy steel chain, offering high strength and durability. Lifting height can be customized according to requirements.
24V, 36V, 48V and 110V control voltages are available. Wireless remote control and overheat protection can also be equipped.
Not every heavy lifting job needs headroom optimization or powered travel. Where a load is lifted and lowered at one fixed station — a heavy workshop, machining area, maintenance bay — a hook-suspended hoist does the job at lower cost and with less maintenance than a trolley-mounted or low-headroom unit. The DLF is built for exactly that: dependable, fixed-point heavy lifting.
Which DLHDP/DLEDP model fits your job? If your ceiling clearance is limited, the DLEDP-N low headroom hoist maximizes available lifting height within a compact body. If your heavy load needs to travel along an I-beam or runway, the DLEDP with electric trolley adds powered horizontal movement. If you just need straightforward fixed-point lifting, the DLHDP hook type is the simpler, more economical choice.Compare: DLEDPCompare: DLHDP
| Model | Capacity load (t) | Standard lifting height (m) | Lifting speed (m/min) | Lifting motor-Power (Kw) | Lifting motor-Rotation speed (r/min) | Lifting motor-Number of phase | Lifting motor-Voltage (V) | Lifting motor-Frequency (Hz/s) | Trolley motor-Power (Kw) | Trolley motor-Rotation speed (r/min) | Trolley speed (m/min) |
| DLEDP-07503S | 7.5 | 3 | 1.8 | 3 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| DLEDP-07503SD-SD | 7.5 | 3 | 1.8&0.6 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| DLEDP-1004S | 10 | 3 | 2.7 | 3.0*2 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| DLEDP-1004SD-SD | 10 | 3 | 2.7&0.9 | (3.0&1.0)*2 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| DLEDP-1506S | 15 | 3 | 1.8 | 3.0*2 | 1440 | 3 | 200-600 | 50 | 0.75*2 | 1440 | 11 |
| DLEDP-1506SD-SD | 15 | 3 | 1.8&0.6 | (3.0&1.0)*2 | 2880&960 | 3 | 200-600 | 50 | (0.75&0.18)*2 | 2880&720 | 5&20 |
| DLEDP-2008S | 20 | 3 | 1.4 | 3.0*2 | 1440 | 3 | 200-600 | 50 | 0.75*2 | 1440 | 11 |
| DLEDP-2008SD-SD | 20 | 3 | 1.5&0.5 | (3.0&1.0)*2 | 2880&960 | 3 | 200-600 | 50 | (0.75&0.18)*2 | 2880&720 | 5&20 |
| DLEDP-2508S | 25 | 3 | 1.3 | 3.0*2 | 1440 | 3 | 200-600 | 50 | 0.75*2 | 1440 | 11 |
| DLEDP-2508SD-SD | 25 | 3 | 1.2&0.4 | (3.0&1.0)*2 | 2880&960 | 3 | 200-600 | 50 | (0.75&0.18)*2 | 2880&720 | 5&20 |
All dimensions in mm
| I-Beam | H | A | B | D | E | I | K | L | M | N | W/P | U/Q | R | T | Chain |
| 100-178 | 1200 | 615 | 295 | 505 | 320 | Φ54 | Φ85 | 65 | 85 | 60 | 295 | 156 | 142 | 231 | Φ11.2 |
| 100-178 | 1200 | 670 | 320 | 505 | 320 | Φ54 | Φ85 | 65 | 85 | 60 | 295 | 156 | 142 | 231 | Φ11.2 |
| 150-220 | 1190 | 630 | 315 | / | 890 | Φ70 | Φ85 | 70 | 85 | 60 | 366 | 191 | 231 | 231 | Φ11.2 |
| 150-220 | 1190 | 700 | 350 | / | 890 | Φ70 | Φ85 | 70 | 85 | 60 | 366 | 191 | 315 | 231 | Φ11.2 |
| 150-220 | 1310 | 630 | 315 | 1070 | 535 | Φ54 | Φ120 | 96 | 90 | 78 | 856 | 560 | 142 | 231 | Φ11.2 |
| 150-220 | 1310 | 700 | 350 | 1070 | 535 | Φ54 | Φ120 | 96 | 90 | 78 | 856 | 560 | 142 | 231 | Φ11.2 |
| 150-220 | 1470 | 630 | 315 | 1320 | 660 | Φ70 | Φ150 | 115 | 94 | 95 | 1106 | 740 | 142 | 231 | Φ11.2 |
| 150-220 | 1470 | 670 | 388 | 1320 | 660 | Φ70 | Φ150 | 115 | 94 | 95 | 1106 | 740 | 142 | 231 | Φ11.2 |
| 150-220 | 1470 | 630 | 315 | 1320 | 660 | Φ70 | Φ150 | 115 | 94 | 95 | 1106 | 740 | 142 | 231 | Φ11.2 |
| 150-220 | 1470 | 670 | 388 | 1320 | 660 | Φ70 | Φ150 | 115 | 94 | 95 | 1106 | 740 | 142 | 231 | Φ11.2 |
If the load only needs to move vertically, the DLEDP-N low headroom hoist is the simpler, more compact choice.
Choose from 7.5–25 ton based on your heaviest rated load, plus safety margin.
Confirm the trolley's flange width range matches your I-beam before ordering.
Select from 200–600V supply and 24–110V control voltage to match your site's electrical standard.
Built-in clutch provides effective overload protection, helping prevent motor damage under abnormal loads.
Equipped with phase sequence protection, limit switch, emergency stop button and magnetic brake for safer operation.
Side magnetic braking system delivers instant braking when power is interrupted, improving operational safety.
Uses Japan FEC80 heat-treated alloy steel chain for high strength, durability and reliable lifting performance.
24V, 36V, 48V and 110V control voltages are available to meet different application requirements.
Wireless remote control and overheat protection can be assembled for more convenient and reliable operation.
What's the difference between the DLHDP and the DLEDP?
The DLEDP electric trolley hoist is designed for horizontal travel along I-beams; the DLEDP-N low-headroom hoist is a fixed-point lifting unit optimized for applications with limited vertical clearance. Select the model according to whether your heavy load requires horizontal travelling or only vertical lifting.
What capacities does the DLEDP trolley hoist cover?
The DLEDP series offers load capacities ranging from 7.5 ton to 25 ton, with a standard lifting height of 3 m.
What is the travelling speed of the electric trolley?
The single-speed trolley runs at 11 m/min. The dual-speed version features 5 m/min & 20 m/min travelling speeds. Heavy-duty models adopt 0.75kW or dual 0.75kW travelling motors.
Is a manual trolley version available?
Yes. If powered horizontal movement is not required, the heavy-duty electric chain hoist can be equipped with a manual geared trolley or plain manual trolley.
What power supply does the DLEDP support?
The DLEDP accepts an input voltage of 200–600V, with optional safety control voltage ranging from 24V to 110V.
