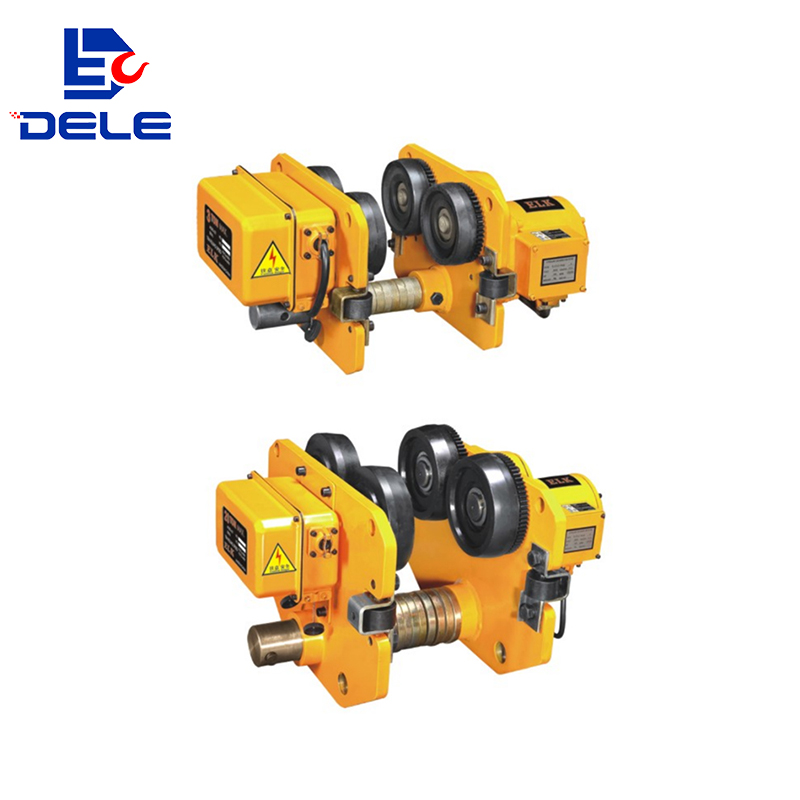

The DLET electric trolley is a geared electric travel unit designed to pair with electric hoists, giving the combined unit powered horizontal travel along an I-beam track to complement vertical lifting. Available in capacities from 0.5 ton to 10 ton, it features dual travel speeds of 11 m/min and 21 m/min at 50Hz, and fits I-beam flange widths ranging from 58 mm to 220 mm. It's built for monorail cranes, single-girder crane runways, and assembly lines where loads need to move along a fixed path, not just up and down.

It adopts a heavy-duty geared drive structure for reliable industrial performance, with minimum turning radii from 0.8 m to 2.5 m across the model range to adapt to different workspace layouts. Each capacity variant has matched mounting dimensions, allowing flexible pairing with corresponding hoist models to form a complete traveling lifting system.

Why Choose a DLET Electric Trolley?

Not every lifting job requires powered horizontal travel. Where a load is only lifted and lowered at one fixed station — a workbench, a single loading point, a dedicated maintenance bay — a fixed-mounted hoist does the job at lower cost and with less to maintain than a trolley-equipped system. The DLET electric trolley is built for exactly the opposite: reliable, motorized horizontal movement of hoist loads along an I-beam runway.

Which DLET model fits your job? If you work with narrow I-beam flanges and light loads up to 1 ton, the DLET-0.5 and DLET-01 offer a compact build with a 0.8m minimum turning radius, ideal for tight workshop monorail layouts. If you handle medium loads from 2 ton to 7.5 ton, the DLET-02 through DLET-7.5 ranges match wider I-beam profiles and deliver higher motor power for steady daily operation. If you need heavy-duty capacity up to 10 ton, the DLET-10 supports the largest I-beam flange range and a 2.5m minimum turning radius, designed for robust industrial crane runways and high-cycle material handling. Compare: DLET ELECTRIC TROLLEY Compare: DTP610 TYPE PLAIN TROLLEY
