ModelWLL(t)A(mm)B(mm)C(mm)D(mm)E(mm)F(mm)G(mm)H(mm)J(mm)K(mm)L(mm)Net Wight(kg)DLBC-223755870573221793252316125-20410.6DLBC-3338760705732235100252820125-20412.50DLBC-55527707460322701202
The universal beam clamp is manufactured to EN 13157. Designed not only for vertical use but also for side-load applications where conventional clamps are not suitable, it is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point. It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations. Available from DLBC-2 at 2t up to DLBC-10 at 10t, it is built for flexible beam anchoring where the pull must come from an angle.
Fitted with an adjustable locking mechanism that ensures secure clamping to the beam, the clamp has a built-in suspension point for low headroom and a light-weight design for quick clamping and unclamping. It fits beam widths from 125–204 mm on the 2–3t models and 125–305 mm on the 5–10t models, with net weight from 10.6 kg up to 24.5 kg.
Designed for both vertical and side-load applications, allowing secure loading at various angles.
Equipped with an adjustable locking mechanism for secure and reliable clamping onto beams.
Built-in suspension point provides a compact structure for lifting operations in limited headroom spaces.
Lightweight construction allows quick and easy clamping and unclamping, improving work efficiency.

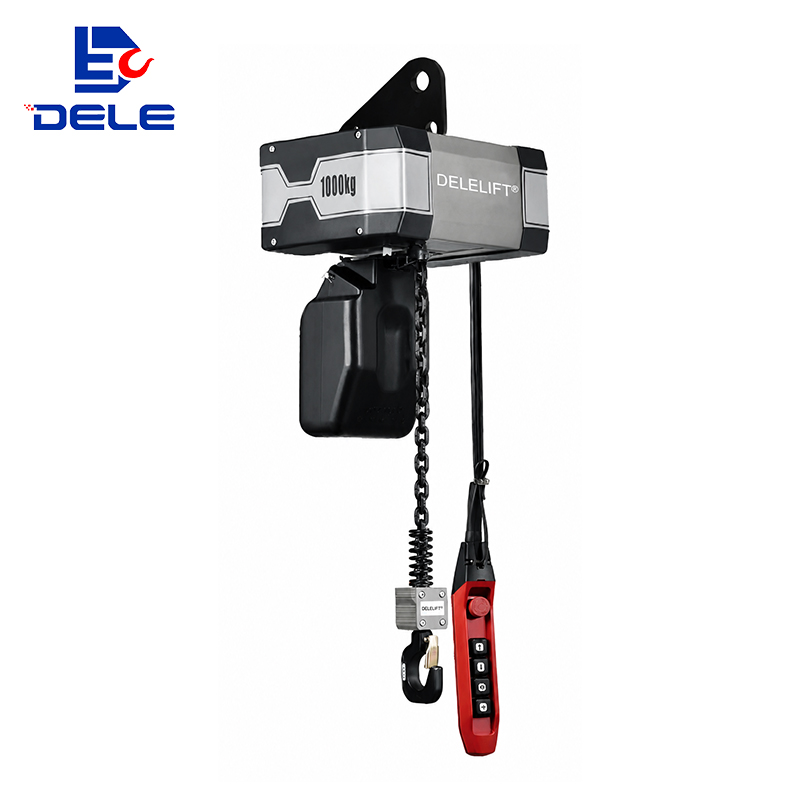

Not every lifting job needs headroom optimization or powered travel. Where a load is lifted and lowered at one fixed station — a workbench, a single assembly point, a maintenance bay — a hook-suspended hoist does the job at lower cost and with less to maintain than a trolley-mounted or low-headroom unit. The DLF is built for exactly that: dependable, fixed-point lifting.
Which DLF/DLFP model fits your job? If your ceiling clearance is limited, the DLFP-N low headroom hoist reclaims lift height in a compact body. If your load needs to travel along a beam or runway, the DLFP with electric trolley adds powered horizontal movement. If you just need straightforward fixed-point lifting, the DLF hook type is the simpler, more economical choice.
Compare: DLFP-N Low HeadroomCompare: DLFP with Trolley

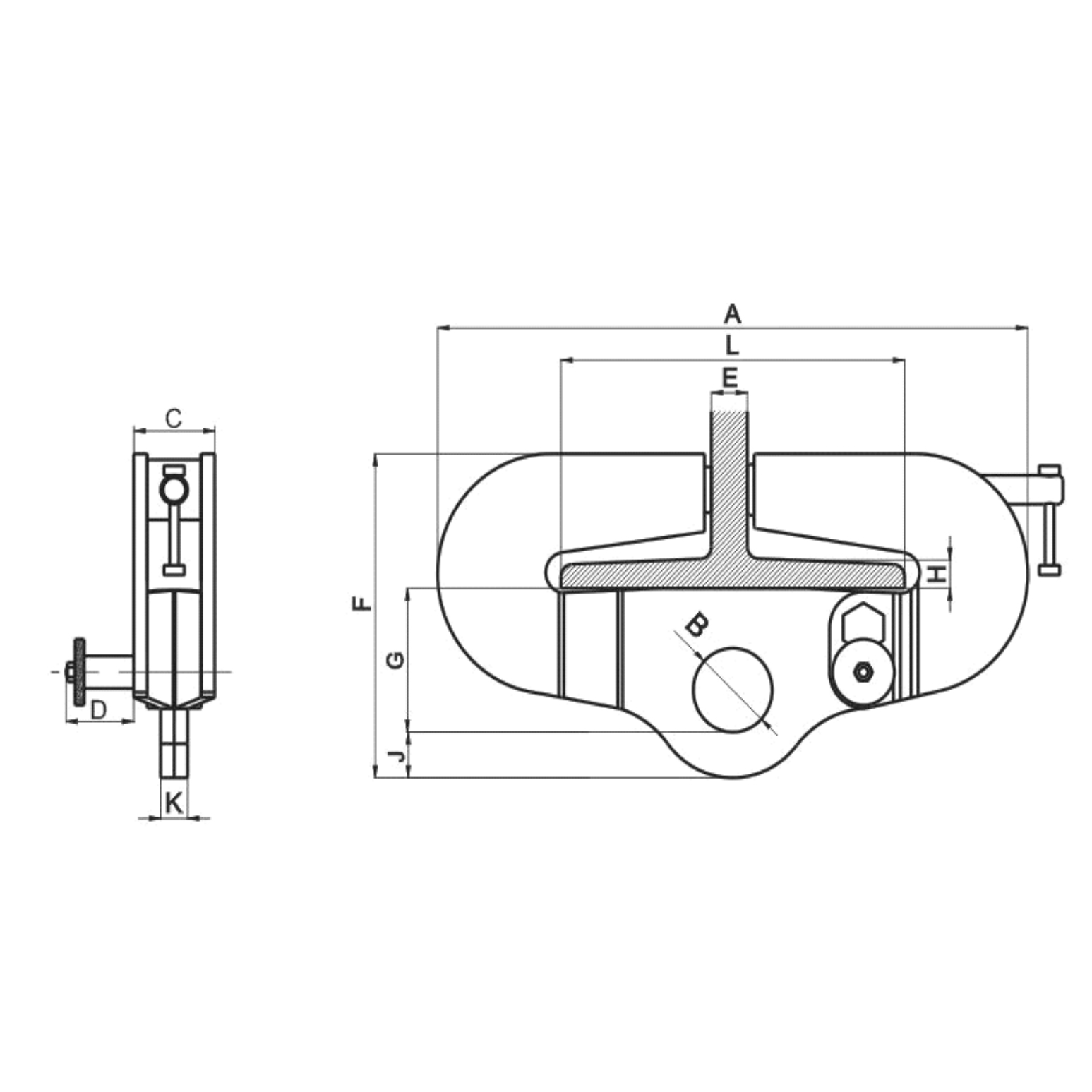

| Model | WLL(t) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | J(mm) | K(mm) | L(mm) | Net Wight(kg) |
| DLBC-2 | 2 | 375 | 58 | 70 | 57 | 32 | 217 | 93 | 25 | 23 | 16 | 125-204 | 10.6 |
| DLBC-3 | 3 | 387 | 60 | 70 | 57 | 32 | 235 | 100 | 25 | 28 | 20 | 125-204 | 12.50 |
| DLBC-5 | 5 | 527 | 70 | 74 | 60 | 32 | 270 | 120 | 25 | 38 | 24 | 125-305 | 20.50 |
| DLBC-10 | 10 | 527 | 70 | 74 | 60 | 32 | 278 | 120 | 25 | 38 | 24 | 125-305 | 24.50 |
All dimensions in mm
| Model | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | J(mm) | K(mm) | L(mm) |
| DLBC-2 | 375 | 58 | 70 | 57 | 32 | 217 | 93 | 25 | 23 | 16 | 125-204 |
| DLBC-3 | 387 | 60 | 70 | 57 | 32 | 235 | 100 | 25 | 28 | 20 | 125-204 |
| DLBC-5 | 527 | 70 | 74 | 60 | 32 | 270 | 120 | 25 | 38 | 24 | 125-305 |
| DLBC-10 | 527 | 70 | 74 | 60 | 32 | 278 | 120 | 25 | 38 | 24 | 125-305 |
If the pull comes in at an angle across the beam or the clamp serves as a semi-permanent anchor point where conventional clamps cannot take side load, the universal beam clamp (EN 13157) is the right choice.
Choose from 2t, 3t, 5t and 10t based on your heaviest rated load, plus safety margin.
Confirm the clamp's fit range matches your beam: 125–204 mm on the 2–3t models, 125–305 mm on the 5–10t models.
The built-in suspension point gives low headroom, and the adjustable locking mechanism plus light-weight design allow quick clamping and unclamping for either temporary or semi-permanent anchoring.
Manufactured according to EN13157, ensuring reliable quality and lifting performance.
Supports vertical, side-load and angled lifting applications for greater versatility.
Adjustable locking mechanism provides firm and secure clamping on beams.
Suitable for various angled lifting operations, helping simplify lifting setups.
Built-in suspension point allows efficient lifting in areas with limited overhead space.
Lightweight construction enables fast clamping and unclamping, improving work efficiency.
To what standard is the universal beam clamp manufactured?
The clamp is produced in accordance with EN 13157. It is engineered for vertical lifting as well as side-load applications, where conventional beam clamps are unsuitable.
What working load range does the DLBC series cover?
Rated working load limit spans 2t, 3t, 5t and 10t.
Can the clamp be loaded off the vertical axis?
Yes. It is suitable for pulling and lifting at angles transverse to the beam or as a semi-permanent anchor point, and accepts load at any angle, removing the need for spreader beams across a range of lifting operations.
What beam flange widths are accommodated?
The 2t and 3t units suit flange widths of 125–204 mm; the 5t and 10t units cover 125–305 mm.
How is clamping achieved and released?
An adjustable locking mechanism provides positive engagement with the beam flange; the integral suspension point minimises headroom, and the lightweight body enables rapid clamping and release.
