Product Features:◉ Hanging devices and load hooks made of anti-aging,high-strength alloy steel, when in case of overload the case will first be deformed without sudden breakage◉ Hook with a solid safety lock, free rotation 360°◉ ln line with the design of the human body design of the handle so t

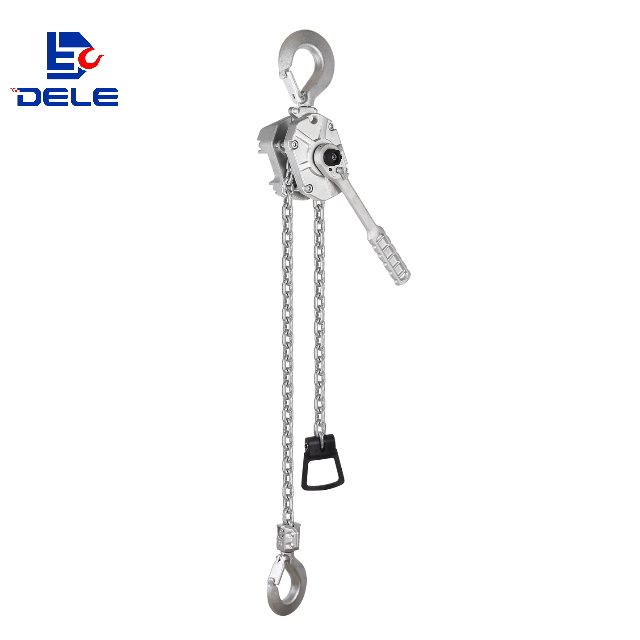

The DELELIFT aluminum alloy lever hoist is built to EN13157 for power line construction, transmission tower erection, substation maintenance, and electrical utility service — a one-person, portable pulling and lifting tool designed to be carried up a tower and operated in tight quarters. Forged hanging and load hooks of anti-aging, high-strength alloy steel feature solid safety latches and 360° free rotation; under overload they deform visibly rather than snap, giving the operator a clear warning before failure. The ergonomic lever handle keeps operating forces low, the fully sealed housing protects the disc-type load brake and all internal parts from dust and moisture, and the corrosion-resistant aluminum body will not rust through years of outdoor service — rated from -40 °C to +60 °C and up to 100% RH, though never submerged or used in standing water. Note: this unit uses no anti-spark materials or asbestos-based components and must never be operated beyond its rated capacity.
High-strength aluminum alloy body with a compact and lightweight design, ideal for one-person operation and easy to carry to towers, substations and confined work areas.
Forged alloy steel hooks feature solid safety latches and 360° free rotation. The hooks deform visibly under overload to provide a clear warning before failure.
The disc-type load brake delivers reliable load holding, while the fully sealed housing protects internal components from dust and moisture during outdoor operation.
Ergonomic lever handle reduces operating effort, while the corrosion-resistant aluminum body withstands temperatures from -40°C to +60°C and humidity up to 100% RH.
Not every pulling or lifting job needs a fixed chain block or an electric hoist. Where the work happens out on a transmission tower, inside a substation, or at a single maintenance point in the field — scattered sites, limited space, and a crew that has to climb and carry their own tools — a portable lever hoist does the job lighter and with less to maintain. The DELELIFT aluminum alloy lever hoist, built to EN13157, is engineered for exactly that: one-person, hook-operated pulling and lifting in tight quarters, with forged high-strength alloy-steel hooks (360° rotation, solid safety latches) that deform before they break, a sealed disc-type brake kept clean of dust and moisture, and a rust-free aluminum body rated from -40 °C to +60 °C and up to 100% RH.
Which hoist fits your power-site job?If you need a tool-bag-portable pulling and lifting tool for tower erection, stringing, or substation maintenance, the DELELIFT aluminum alloy lever hoist is the right choice. If your load stays at one fixed workstation and never leaves the ground, a standard hook-suspended chain block is the simpler, lower-cost option. If you work around explosive gases, flammable dust, or live high-voltage lines requiring insulation, note this unit uses no anti-spark materials and no asbestos-based components, and is not rated for spark-hazard or live-line work.

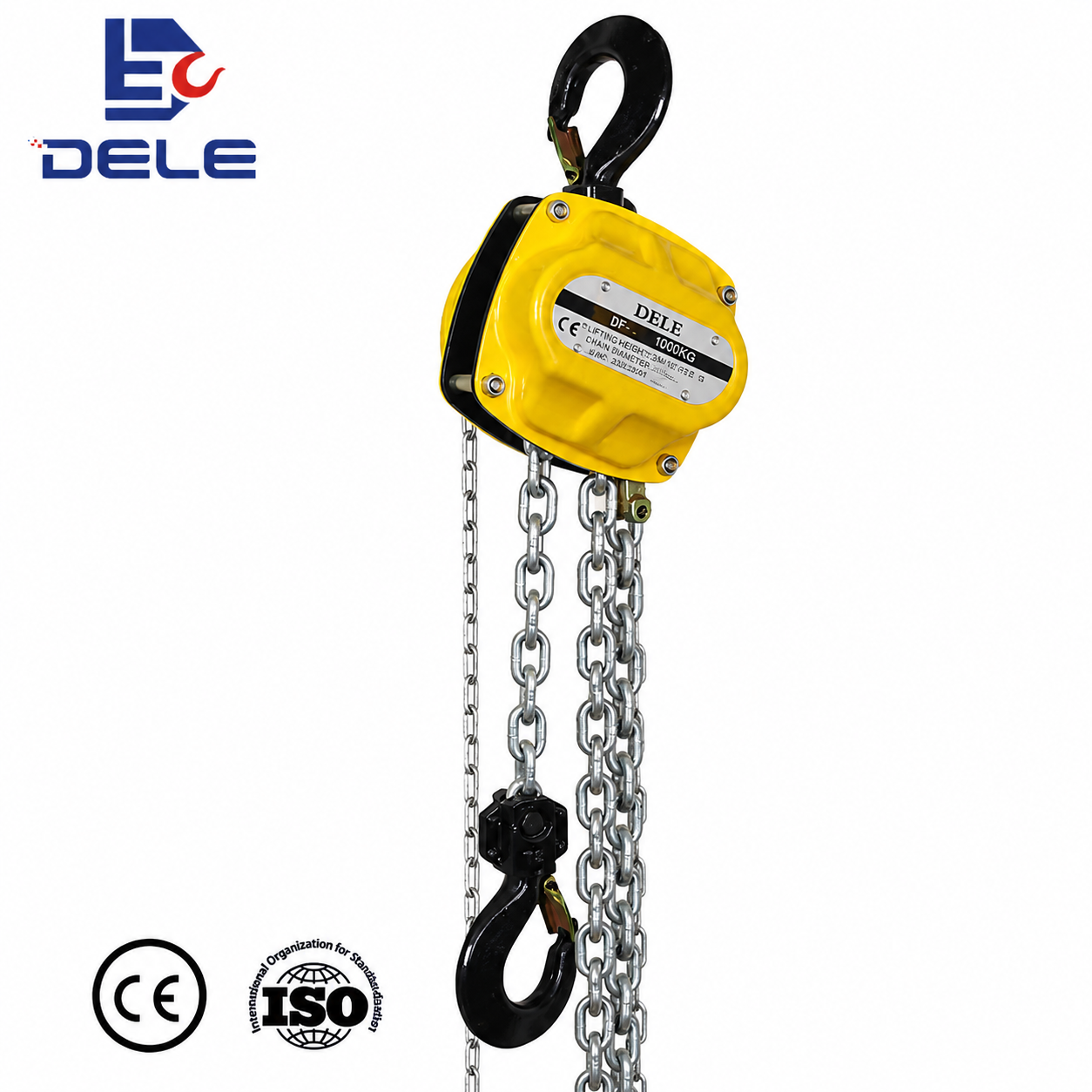

Compare: DL Lever Hoist Compare: DF Manual Chain Hoist
| Model | DL-0.25T | DL-0.5T | DL-0.75T | DL-1.5T | DL-3T | DL-6T | DL-9T | |
| Capacity load | (t) | 0.25 | 0.5 | 0.75 | 1.5 | 3 | 6 | 9 |
| Standard lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 1 | 2 | 3 | |
| Effort required to lift max load | (N) | 170 | 200 | 220 | 250 | 340 | 380 | 400 |
| Test load | (kg) | 375 | 750 | 1125 | 2250 | 4500 | 9000 | 13500 |
| Load chain specifications | (mm) | 3x9 | 4x12 | 5.6x17 | 7x21 | 9x27 | 9x27 | 9x27 |
| Net weight | (kg) | 1.6 | 2.7 | 5.1 | 7.6 | 14.7 | 20 | 39.5 |
| Gross weight | (kg) | 1.8 | 3.0 | 5.5 | 8.1 | 15.2 | 21.5 | 41.5 |
| Packing size | (cm) | 20*12*8.5 | 23.5*13.5*10 | 31.5*16*12 | 35*18*13 | 49*20*16 | 49*23.5*21.5 | 49.5*23.5*21.5 |
| Add 1m weight | (kg) | 0.15 | 0.341 | 0.7 | 1.1 | 1.8 | 3.6 | 5.4 |
All dimensions in mm
| Model | a | b | c | d | e | Hmin | f |
| DL-0.25t | 74 | 30 | 142 | 20 | 105 | 223 | 36 |
| DL-0.5T | 90 | 35 | 175 | 22 | 117 | 282 | 40 |
| DL-0.75T | 115 | 39 | 233 | 28 | 140 | 329 | 55 |
| DL-1.5T | 140 | 44 | 233 | 30 | 158 | 355 | 70 |
| DL-3T | 170 | 60 | 350 | 41 | 185 | 445 | 88 |
| DL-6T | 237 | 68 | 350 | 47 | 185 | 500 | 88 |
| DL-9T | 300 | 91 | 350 | 61 | 185 | 635 | 90 |
If the work happens up on a transmission tower, inside a substation, or at scattered field points where one worker must carry and operate the unit, the DELELIFT aluminum alloy lever hoist is the right fit. For fixed, on-the-ground lifting at one workstation, a hook-suspended chain block is the simpler, lower-cost choice.
Choose from the available rated capacities (0.75 t / 1.5 t / 3 t / 6 t) based on your heaviest expected load, plus an appropriate safety margin — this hoist must never be operated beyond its rated capacity.
The unit is rated from -40 °C to +60 °C and up to 100% relative humidity. Confirm your field temperature and humidity fall within this range, and that the hoist will never be submerged or used in standing water.
This lever hoist contains no anti-spark materials and has no insulating rating. It is not rated for explosive / flammable gas or dust atmospheres (e.g., gassy coal mines, petrochemical sites) or for live-line high-voltage work — select an explosion-proof or insulated dedicated hoist for those applications.
Compact aluminum alloy design for easy one-person carrying and operation.
Forged alloy steel hooks with 360° rotation and secure safety latches.
Hooks deform visibly under overload to provide an early safety warning.
Ergonomic lever handle reduces operating force for easier lifting and pulling.
Fully sealed housing protects the brake and internal parts from dust and moisture.
Corrosion-resistant aluminum alloy withstands -40°C to +60°C and up to 100% RH.
Why choose this lever hoist for power-line and field work?
The DELELIFT aluminum alloy lever hoist is purpose-built for work up on transmission towers, in substations, and at scattered field points where one worker has to carry and operate the unit by hand. Its lightweight aluminum body, compact footprint, and 360° rotating forged hooks let crews pull and lift reliably in tight quarters.
What standard does it meet?
This lever hoist is manufactured to EN13157, with anti-aging, high-strength alloy-steel hooks, a fully sealed disc-type load brake, and an ergonomic lever handle.
What capacities are available?
The series covers standard lever-hoist ratings from 0.25 t up to 9 t, with the hook set and disc brake sized for the rated load plus an appropriate safety margin — never operate beyond the marked capacity.
What are the operating environmental limits?
Rated from -40 °C to +60 °C and up to 100% relative humidity. The corrosion-resistant aluminum body resists rust outdoors, but the unit must never be submerged or used in standing water.
Can it be used in explosive atmospheres or for live-line work?
No. This hoist contains no anti-spark materials and has no insulating rating. It is not suitable for explosive / flammable gas or dust environments (e.g., gassy coal mines, petrochemical sites) or for live high-voltage line work — select an explosion-proof or insulated dedicated hoist for those applications.
Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
