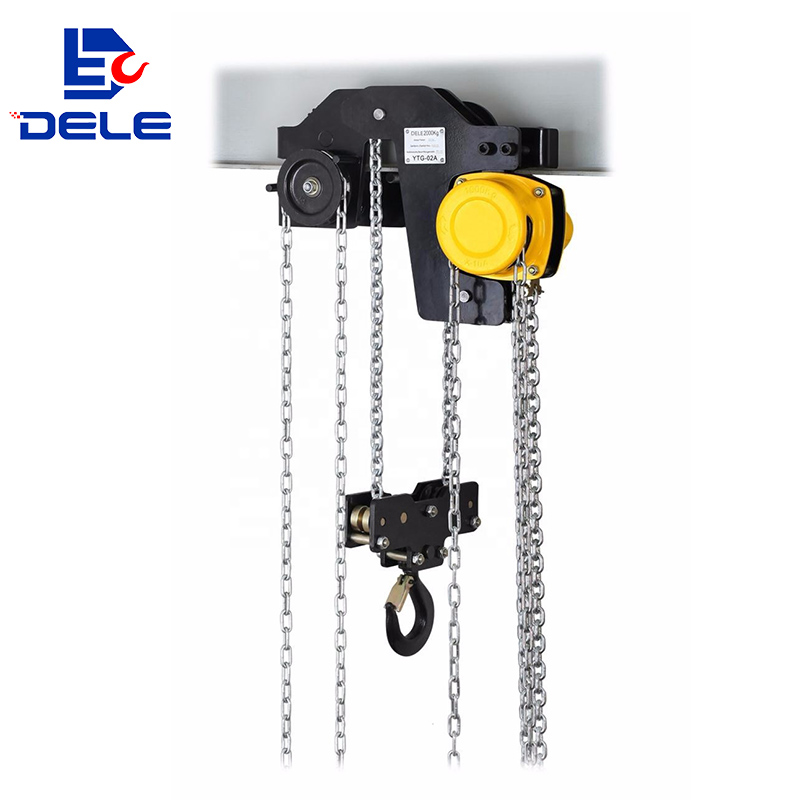

The YTG Low Headroom hand chain hoist is the ideal solution for installations with strict headroom limits and special framing requirements. Built to EN13157 and custom-fitted to long or short reach framing, it uses a special trolley frame with an upper sheave and offset hoist machinery to optimize lifting height and deliver maximum hook height in tight clearance. Available from 1 t to 20 t with a standard 20 ft lift (longer lengths on request), it pairs an efficient hoist drive train with trolley wheels that fit both tapered and flat-flanged beams and maintenance-free sealed ball bearings that stay smooth and low-friction for life — built for industrial lifting applications where space is limited and for demanding environments.

It shares the proven Grade 80 heat-treated manganese alloy load chain, double enclosed brake cover that keeps out rain and dust, and all-steel construction with our standard hand chain hoist, but re-engineers the frame and sheave arrangement to reclaim headroom — choose it when a standard hoist simply cannot hook high enough under the beam.

Why Choose a YTG Low Headroom Hand Chain Hoist?

Not every lifting job needs a low-headroom design. Where a load is lifted and lowered at one open, well-clearanced station — a workbench, an outdoor rig, a maintenance bay with plenty of room under the beam — a standard hand chain hoist does the job at lower cost and with a simpler build. The YTG Low Headroom hoist is built for the opposite case: plants, retrofits, and special framing where the ceiling, building steel, or existing structure leaves almost no room above the hook. A special trolley frame with an upper sheave and offset hoist machinery reclaims that lost lift height, delivering maximum hook height in tight clearance applications.

Which YTG configuration fits your job?If your ceiling clearance is limited and you need the hook to rise as high as possible under the beam, the YTG low headroom hoist reclaims lift height in a compact body. If your load also needs to travel along an I-beam or runway, pair it with a geared or plain trolley that fits both tapered and flat-flanged beams. If you have no headroom constraint at all, a standard hand chain hoist is the simpler, more economical choice — available from 1 t to 20 t with a standard 20 ft lift.Compare: YTG Manual Chain Hoist Compare: DF Manual Chain Hoist
