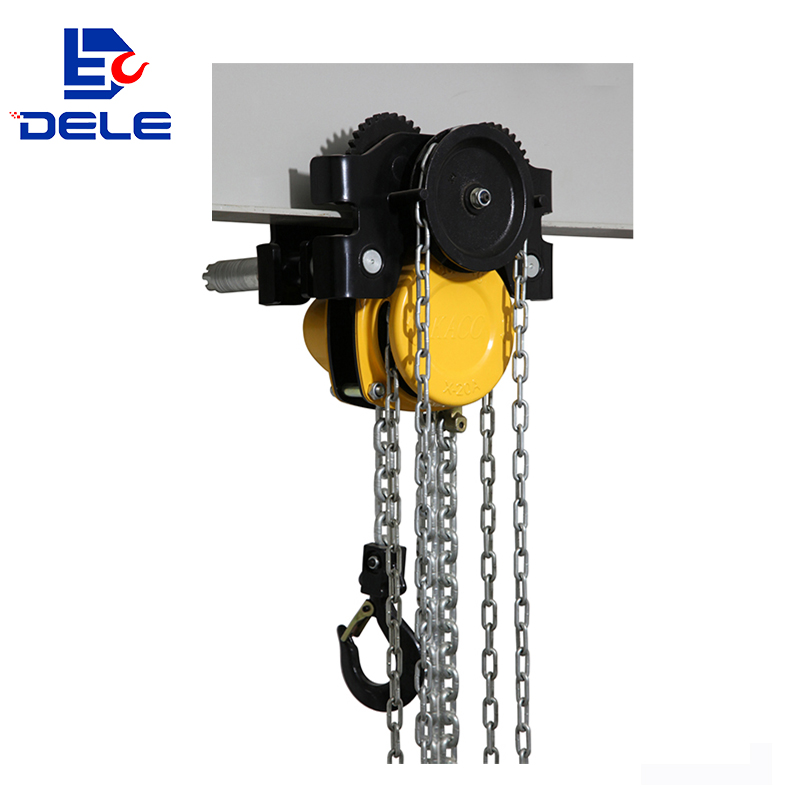

The HTP lower headroom trolley hoist pairs a single-structure low-headroom hoist body with an adjustable trolley frame, giving the unit compact vertical lifting in confined spaces plus manual travel along steel beams. Designed for loads below 3000 kg with a single-structure build, it's especially suited to limited-space applications where clearance is tight; for loads up to 5 tons, the trolley is available in two standard styles — Type A fits beams up to 180 mm wide and is easily adjustable to 300 mm — with precise beam-width adjustment for simple installation and setup.

The trolley is engineered for smooth running: wheels with a large rail contact surface and lubricated sealed ball bearings, plus a standard tilt and fall prevention device. Operating conditions: -40℃ to +60℃, below 100% RH, not for use in water, and never overload. Share your beam width and required capacity, and we'll confirm the right configuration for your installation

Why Choose the HTP Lower Headroom Trolley Hoist?

Not every lifting job needs headroom optimization or powered travel. Where a load is lifted and lowered at one fixed station — a workbench, an assembly point, a maintenance bay — a hook-suspended hand chain hoist is the simpler, more economical choice. But where the load must move along a beam in a low-clearance space with no power supply, the HTP lower headroom trolley hoist delivers both: compact lifting with maximum hook travel, plus manual travel along the runway.

Which HTP configuration fits your job?If your clearance is limited, the HTP's lower headroom design reclaims lift height in a compact body. If your load needs to travel along a beam, the HTP's adjustable trolley runs on steel beams — Type A fits beams up to 180 mm wide, easily adjustable to 300 mm. If your loads are below 3000 kg and your site has no power supply, the HTP is the simpler, more economical manual choice.Compare: YTGCompare: HTG
