A lower headroom hand chain trolley hoist that travels along steel beams with maximum hook travel in tight clearances — built for monorail and single-girder systems that need power-free horizontal movement, not just fixed-point lifting.

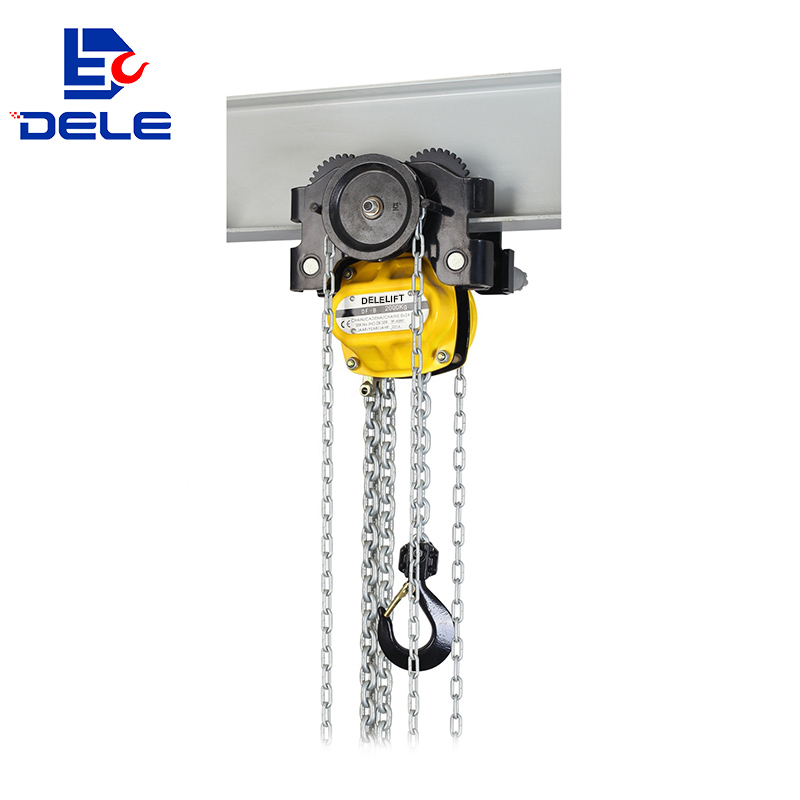

The HTG lower headroom trolley hoist pairs a compact lower headroom hoist body with an adjustable trolley frame, giving the unit vertical lifting in confined spaces plus travel along steel beams. Manufactured to EN 13157, it handles loads below 3000 kg with a single-structure design; the 5-ton trolley is available in two standard styles — Type A fits beams up to 180 mm wide and is easily adjustable to 300 mm — built for limited-space applications where clearance is tight and precise beam-width adjustment matters.
The trolley is engineered for smooth running: wheels with a large rail contact surface and lubricated sealed ball bearings, plus a standard tilt and fall prevention device. Operating conditions: -40℃ to +60℃, below 100% RH, not for use in water, and never overload. Share your beam width and required capacity, and we'll confirm the right configuration for your installation.
The HTG Low Headroom Trolley Hoist features a compact, low-clearance structure, making it ideal for lifting operations in areas with limited overhead space.
The trolley is easy to install and adjust, allowing precise adjustment according to different steel beam widths. For capacities up to 5 tons, two standard trolley configurations are available to meet different installation requirements.
Low Friction, Long Service Life — Sealed ball bearings and optimized wheel design ensure smooth, reliable trolley movement.
Built for Demanding Conditions — Anti-tilt and anti-fall devices enhance safety for reliable operation in harsh working environments.
Not every lifting job needs powered travel. Where a load is lifted and lowered at one fixed station — a workbench, an assembly point, a maintenance bay — a hook-suspended hand chain hoist is the simpler, more economical choice. But where the load must move along a beam in a low-clearance space with no power supply, the HTG lower headroom trolley hoist delivers both: compact lifting with maximum hook travel, plus manual travel along the runway.
Which HTG configuration fits your job? If your clearance is limited, the HTG's lower headroom design reclaims lift height in a compact body. If your load needs to travel along a beam, the HTG's adjustable trolley runs on steel beams — Type A fits beams up to 180 mm wide, easily adjustable to 300 mm. If your loads are below 3000 kg and your site has no power supply, the HTG is the simpler, more economical manual choice.Compare: YTGCompare: HTG
| Model | HTG | HTG-005 | HTG-010 | HTG-020 | HTG-030 | HTG-050 | HTG-100 |
| Capacity | （t) | 0.5 | 1 | 2 | 3 | 5 | 10 |
| Standard lift | (m) | 3 | 3 | 3 | 3 | 3 | 3 |
| Load chain Number of falls | 1 | 1 | 1 | 1 | 2 | 3 | |
| Effort required to lift max load | (N) | 240 | 305 | 360 | 370 | 370 | 400 |
| Running testload | (kg) | 750 | 1500 | 3000 | 4500 | 7500 | 15000 |
| Load chain diameter×Number of falls | (mm) | 5*15 | 6*18 | 8*24 | 10*30 | 10*30 | 10*30 |
| hand chain diameter×Number of falls | (mm) | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 |
| Lifting chain hoisting height increase weight of 1 meter | (kg/m) | 0.541 | 0.77 | 1.36 | 2.2 | 4.4 | 6.6 |
| Gross weight | (kg) | 14.8 | 23.5 | 43.7 | 58 | 84 | 140 |
| The minimum clearance(hmin) | (mm) | 250 | 259 | 376 | 447 | 595 | 806 |
| Beam width | (mm) | 50-203 | 74-203 | 85-203 | 100-203 | 114-203 | 124-203 |
| Minimum bend radius | (m) | 0.85 | 1 | 1.1 | 1.3 | 1.4 | 3 |
All dimensions in mm
| Model | a | b | c | d | e |
| HTG-005 | 210 | 312 | 208 | 190 | 24 |
| HTG-010 | 240 | 382 | 312 | 203 | 26 |
| HTG-020 | 280 | 481 | 329 | 203 | 35 |
| HTG-030 | 340 | 588 | 351 | 203 | 37 |
| HTG-050 | 420 | 753 | 368 | 205 | 40 |
| HTG-100 | 452 | 988 | 387 | 203 | 41 |
If the load only needs to move vertically, a standard lower headroom hand chain hoist is the simpler, more compact choice. For travel along the beam, the HTG trolley version adds manual movement without any powered equipment.
Choose based on your heaviest rated load, plus a safety margin: loads below 3000 kg use the single-structure design, and for loads up to 5 tons the trolley is available in two standard styles【confirm】.
Confirm the trolley's fit range matches your steel beam before ordering: Type A fits beams up to 180 mm wide and is easily adjustable to 300 mm.
Operating temperature -40℃ to +60℃, humidity below 100% RH, not for use in water; never overload.
Ultra-Low Headroom Design for Limited Spaces
Flexible Trolley Design for Different Beam Widths
Quick Installation & Easy On-Site Adjustment
Optimized Wheels for Smooth & Stable Operation
Enhanced Anti-Tilt & Anti-Fall Safety Protection
Reliable Performance Across Wide Temperature Conditions
What's the difference between the HTG and a standard hand chain hoist?
The HTG is a lower headroom trolley hoist: its low-clearance design maximizes hook travel in confined spaces, while the trolley provides manual travel along steel beams — a standard hoist needs more installation clearance.
What capacities does the HTG come in?
Loads below 3000 kg use the single-structure design; for loads up to 5 tons, the trolley is available in two standard styles【confirm】.
Is the HTG easy to install and adjust?
Yes — installation and adjustment are very convenient, and the trolley can be precisely adjusted to match the steel beam width.
Is the HTG smooth and safe in operation?
The trolley wheels are designed with a large rail contact surface and lubricated sealed ball bearings for smooth running; a standard tilt and fall prevention device is fitted.
What are the operating conditions for the HTG?
Operating temperature -40℃ to +60℃, humidity below 100% RH, not for use in water; never overload.
Tell us your capacity, lifting height, and working‑condition requirements — we'll confirm the correct model and send pricing.
Request a Quote
