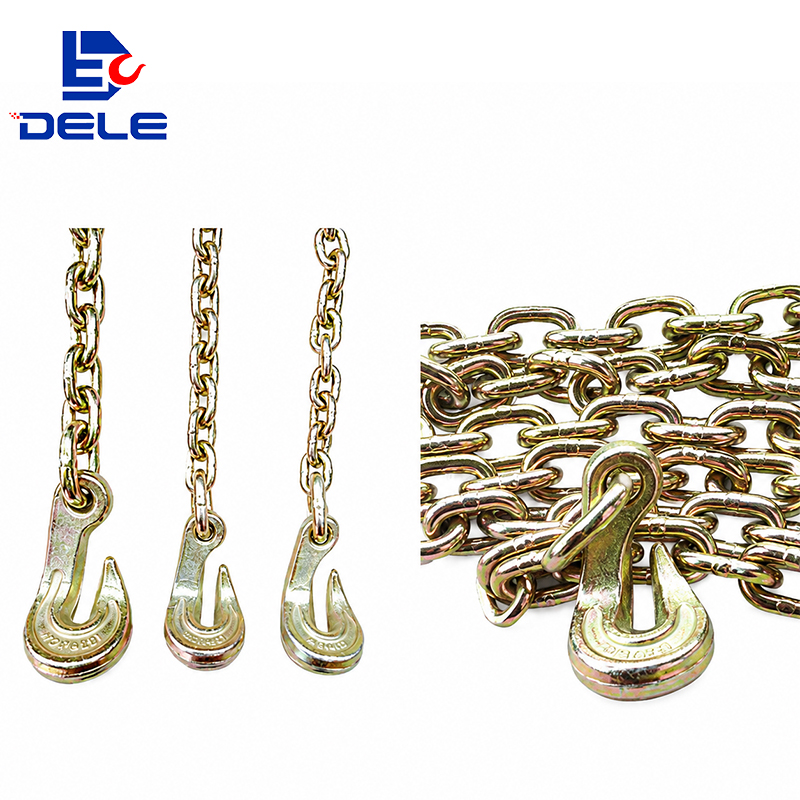

G80 TIE-DOWN CHAIN

ModelDia.(MM)Length(Feet)S.W.L.(Ton)Breaking Load (Ton)Net weight(Kgs)DLBC-07097.191.66.53.30DLBC-07127.1121.66.54.20DLBC-07157.1151.66.55.10DLBC-07187.1181.66.56.30DLBC-08098928.04.20DLBC-081281228.05.50DLBC-081581528.06.90DLBC-081881828.0

ModelDLBC-0709 ~ DLBC-1318
Dia.7.1 / 8 / 10 / 13 mm
Length9 / 12 / 15 / 18 ft
S.W.L1.6 / 2 / 3.2 / 5.5 t
Minimum Order Quantity1000 m
Net Weight3.30 ~ 21.60

Product Overview

The G80 tie-down chain pairs a heat-treated grade-80 alloy steel chain body with forged grab hooks and load binders, giving the assembly secure cargo restraint under heavy transport loads. Available in diameters from 7.1 mm to 13 mm and lengths from 9 ft to 18 ft, with safe working loads from 1.6 t up to 5.5 t and breaking loads up to 22 t, it's built for flatbed trailers, container lashing, and construction hauling where a load needs to be held firmly in place over long hauls, not just covered and driven away.

It shares its grade-80 alloy steel and heat-treatment process with G80 lifting chain, but adds a long-link tie-down configuration designed to work with load binders — see the comparison below to confirm which fits your application.



Key Features

01

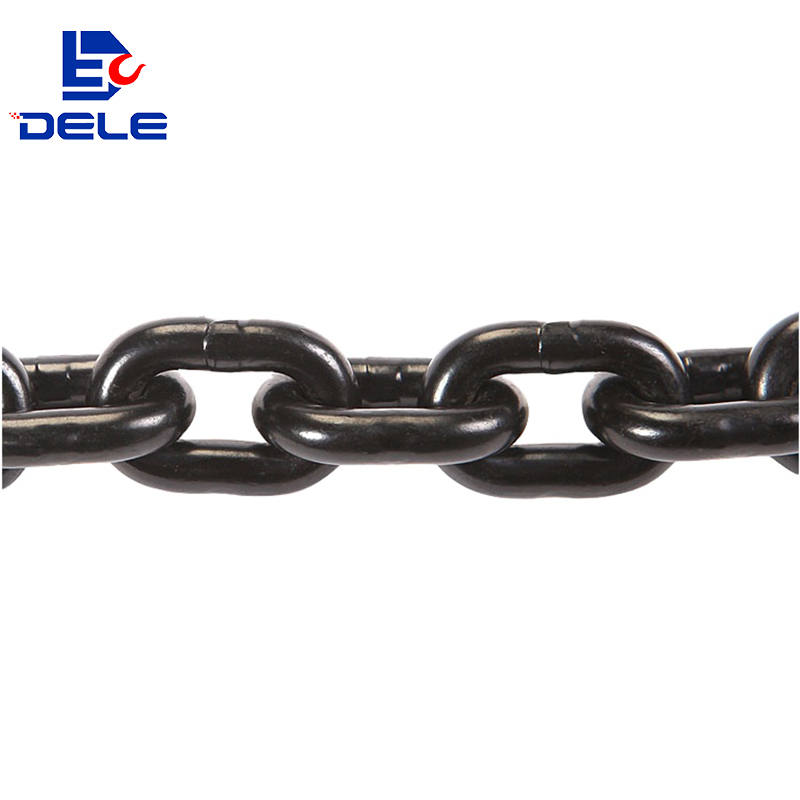

Grade-80 Alloy Steel Construction

Manufactured from heat-treated Grade 80 alloy steel, the chain delivers high tensile strength, excellent wear resistance, and dependable performance in heavy-duty, long-term transport applications.

02

4:1 Design Safety Factor

With a safe working load of up to 5.5 t and a breaking load of up to 22 t, the chain maintains a breaking-to-working load ratio of approximately 4:1, fully compliant with Grade 80 standards for assured reliability.

03

Complete Size Range

Available in diameters of 7.1 / 8 / 10 / 13 mm and lengths of 9 / 12 / 15 / 18 ft across 16 models, covering a wide spectrum of cargo-securing requirements from light to heavy loads.

04

Engineered for Cargo Tie-Down

The long-link design is purpose-built for load securing and works seamlessly with ratchet or lever load binders, making it ideal for flatbed trailers, container lashing, and construction-site hauling.

Why Choose a DLBC Grade-80 Tie-Down Chain?

Not every cargo-securing job needs the heaviest chain or an elaborate lashing rig. Where a load is held at fixed points on a truck, trailer, or container — a flatbed shipment, a container load, a construction delivery — a grade-80 tie-down chain does the job with high strength and simple, reusable hardware. The DLBC is built for exactly that: dependable, fixed-point cargo restraint.

Which DLBC model fits your job? If you're securing light-to-medium loads, the 7.1 mm or 8 mm chain delivers up to 2 t of safe working load at a lower cost. If your load is heavier or needs a longer reach, the 10 mm chain provides 3.2 t capacity in lengths from 9 to 18 ft. If you're tying down heavy machinery or dense steel loads, the 13 mm chain is the strongest choice, rated at 5.5 t SWL with a 22 t breaking load.Compare: DLBC Grade 80 Tie-Down ChainCompare: EN818-7 Load Chain




Chain Specifications

ModelDia.(MM)Length(Feet)S.W.L.(Ton)Breaking Load (Ton)Net weight(Kgs)
DLBC-07097.191.66.53.30
DLBC-07127.1121.66.54.20
DLBC-07157.1151.66.55.10
DLBC-07187.1181.66.56.30
DLBC-08098928.0 4.20
DLBC-081281228.0 5.50
DLBC-081581528.0 6.90
DLBC-081881828.0 8.50
DLBC-10091093.213.0 6.50
DLBC-101210123.213.0 8.50
DLBC-101510153.213.0 10.50
DLBC-101810183.213.0 13.20
DLBC-13091395.522.0 10.80
DLBC-131213125.522.0 14.10
DLBC-131513155.522.0 17.40
DLBC-131813185.522.0 21.60




Chain Specifications

ModelDia.(MM)Length(Feet)S.W.L.(Ton)Breaking Load (Ton)Net weight(Kgs)
DLBC-07097.191.66.53.30
DLBC-07127.1121.66.54.20
DLBC-07157.1151.66.55.10
DLBC-07187.1181.66.56.30
DLBC-08098928.0 4.20
DLBC-081281228.0 5.50
DLBC-081581528.0 6.90
DLBC-081881828.0 8.50
DLBC-10091093.213.0 6.50
DLBC-101210123.213.0 8.50
DLBC-101510153.213.0 10.50
DLBC-101810183.213.0 13.20
DLBC-13091395.522.0 10.80
DLBC-131213125.522.0 14.10
DLBC-131513155.522.0 17.40
DLBC-131813185.522.0 21.60




Applications

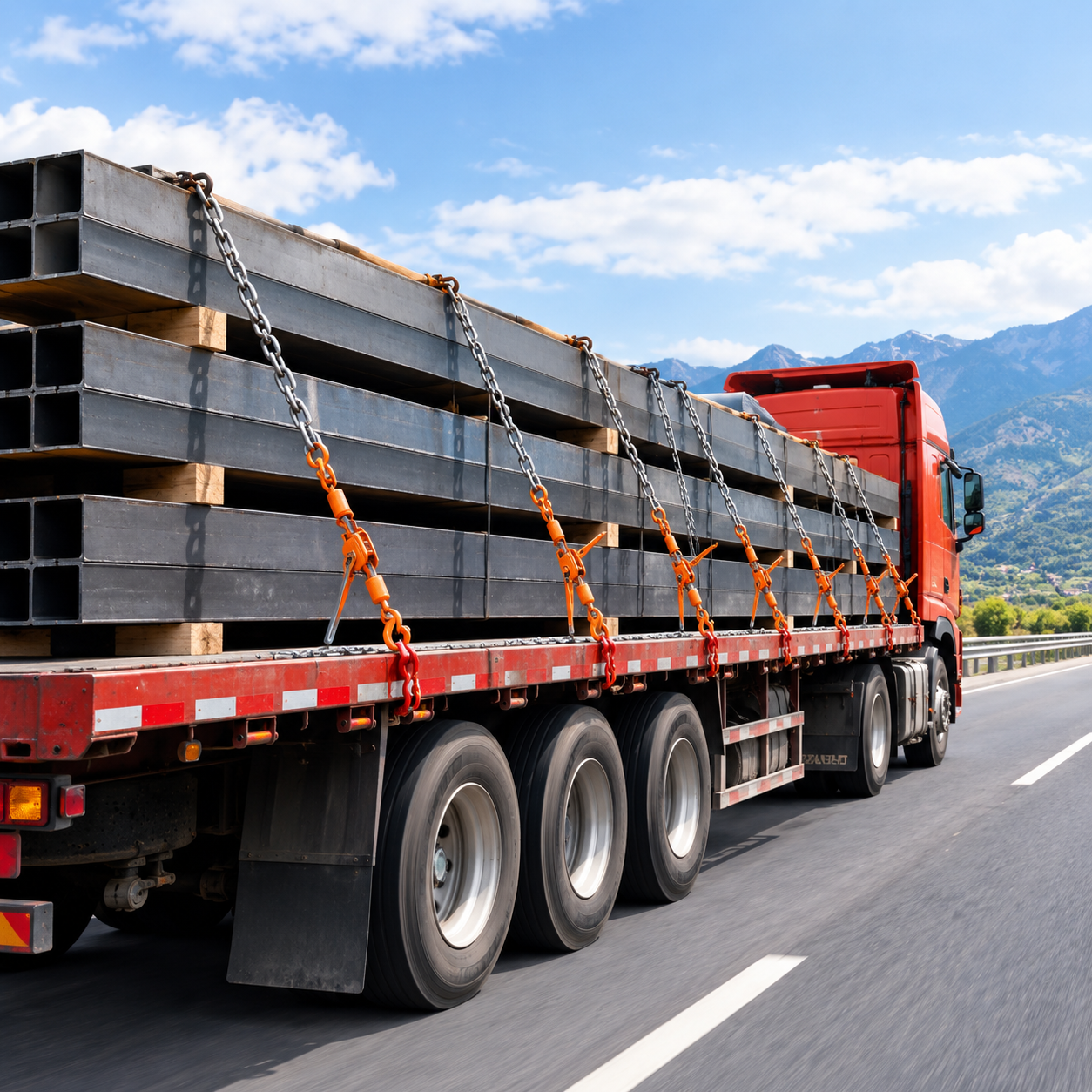

Flatbed Truck & Trailer Securement
Flatbed Truck & Trailer Securement

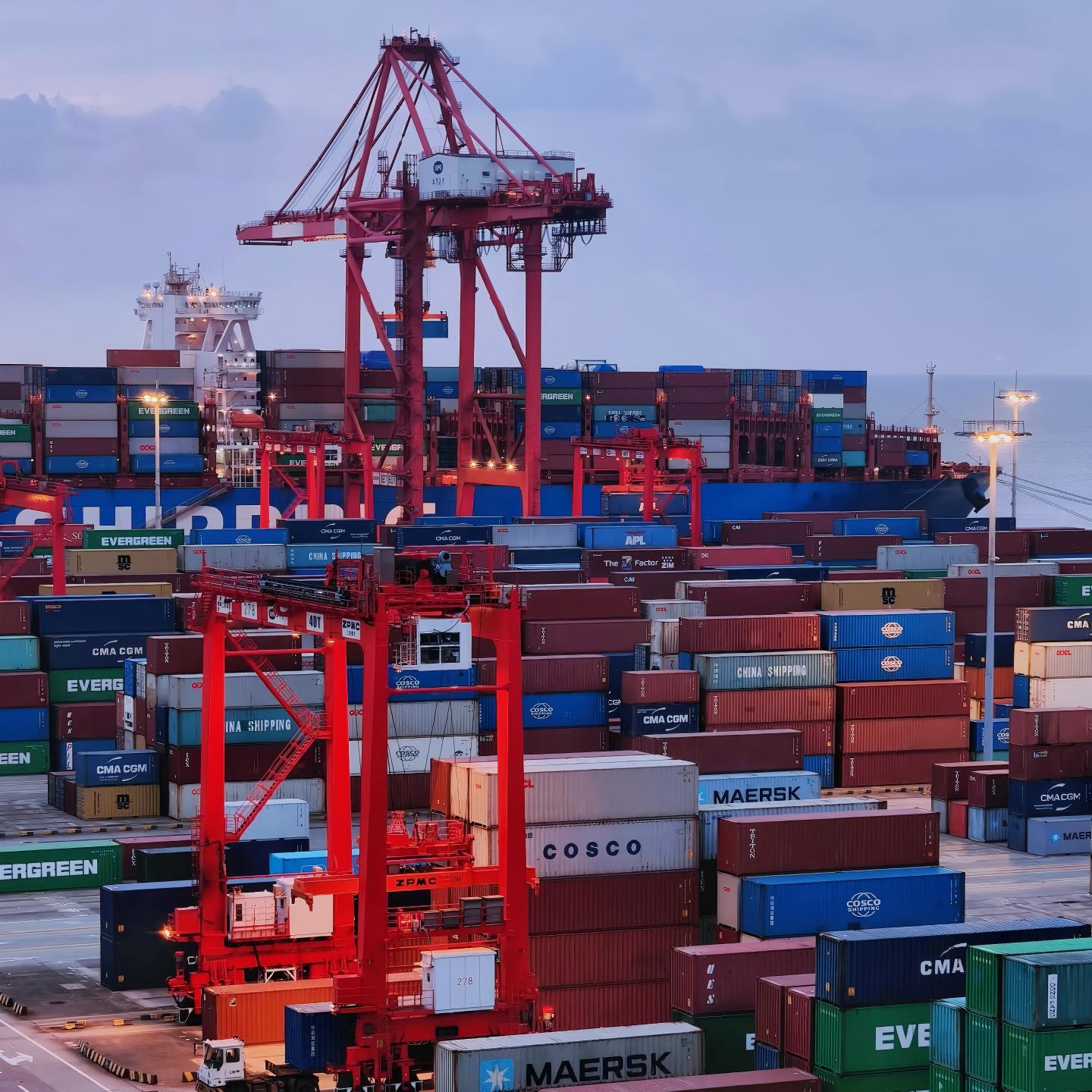

Container Lashing & Intermodal Transport
Container Lashing & Intermodal Transport

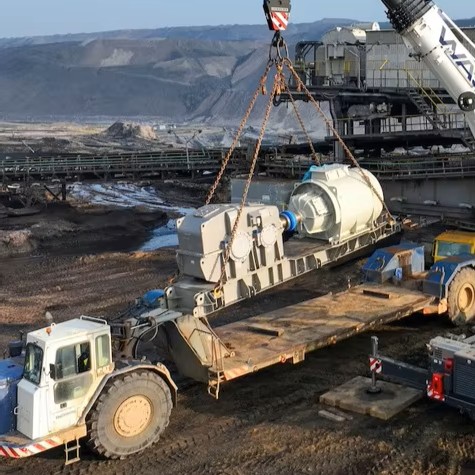

Heavy Machinery & Equipment Transport
Heavy Machinery & Equipment Transport

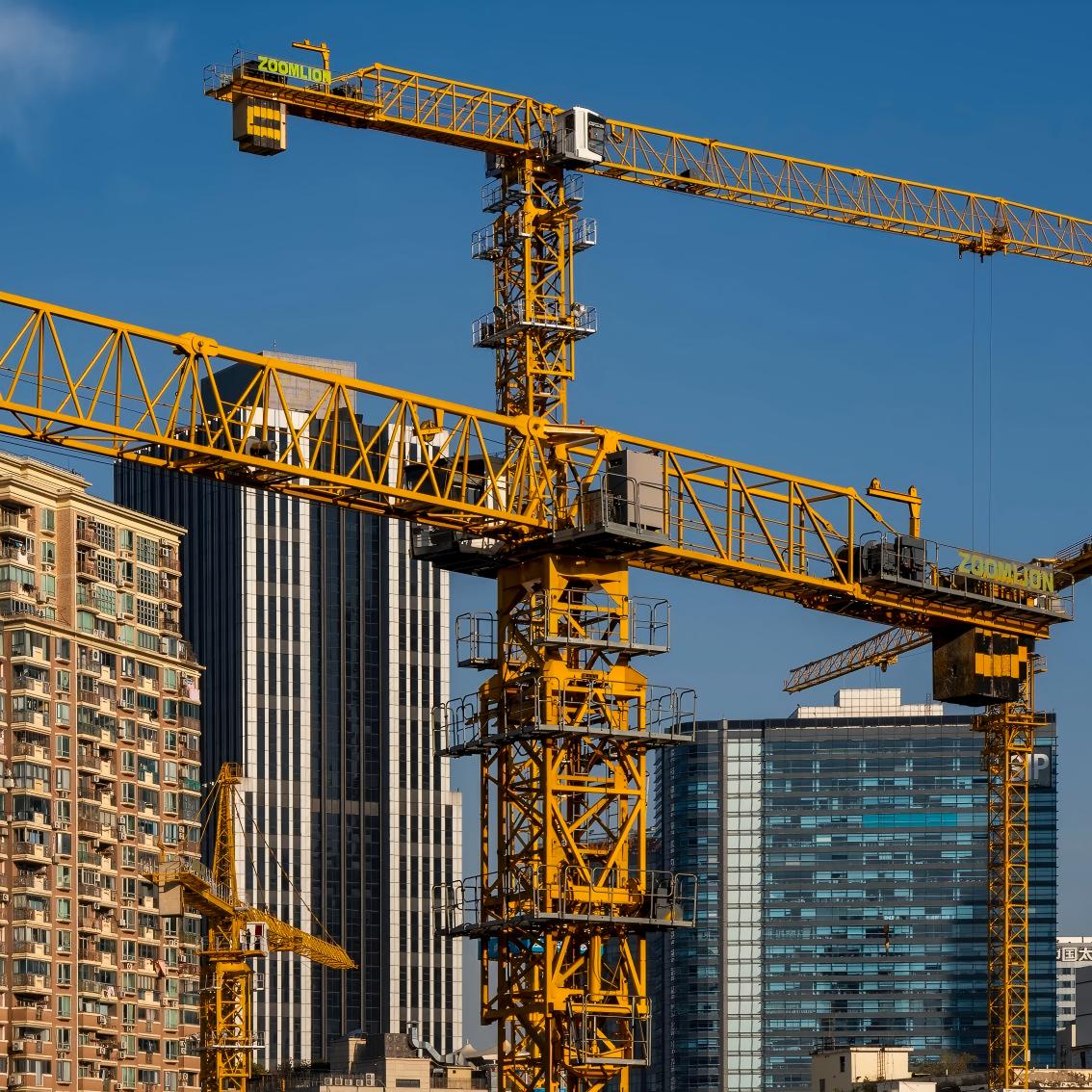

Construction Sites & Infrastructure Projects
Construction Sites & Infrastructure Projects

How to Select the Right DLBC Model

01

Match capacity to load

Choose from 1.6–5.5 t safe working load based on your heaviest rated cargo, plus a safety margin.

02

Select diameter by cargo weight

Use the 7.1 mm or 8 mm chain for light-to-medium loads, the 10 mm chain for medium-heavy loads, and the 13 mm chain for heavy machinery and dense steel loads.

03

Choose length to fit your tie-down points

Select from 9 / 12 / 15 / 18 ft to ensure the chain reaches both anchor points with enough room to attach and tension the load binder.

04

Confirm grade and hardware match

Verify the G80 grade marking, and pair the chain with Grade-80 hooks and load binders to maintain the rated working load.

Product Advantages

  • Heat-treated Grade 80 alloy steel for superior strength and wear resistance

  • Breaking load approximately 4× the safe working load for dependable performance

  • 4 diameters × 4 lengths, 16 models to fit every application


  • Works with load binders for quick tensioning, simple handling, and repeated use

  • Corrosion-resistant finish built for outdoor and long-haul applications

  • Grade 80 compliant with clear grade markings and traceable certification



Frequently Asked Questions

What's the difference between the DLBC tie-down chain and a standard lifting chain?

The DLBC is a long-link, Grade 80 alloy steel chain engineered for cargo restraint, not overhead lifting; it works with load binders to secure cargo on trailers, containers, and construction sites. Choose based on whether your load needs lashing or lifting.


What capacities does the DLBC series come in?

The DLBC series covers 1.6 t to 5.5 t safe working load in diameters from 7.1 mm to 13 mm, with breaking loads up to 22 t.


What lengths are available?

Available in 9 / 12 / 15 / 18 ft (approx. 2.7 / 3.7 / 4.6 / 5.5 m), offering 16 models in total across all diameters and lengths.


Can I use it with ratchet or lever binders?

Yes — pair the chain with Grade 80 grab hooks and ratchet or lever load binders for quick tensioning and rated performance.


Is the chain corrosion resistant?

Yes — heat-treated Grade 80 alloy steel with a corrosion-resistant surface, built for outdoor and long-haul applications.
