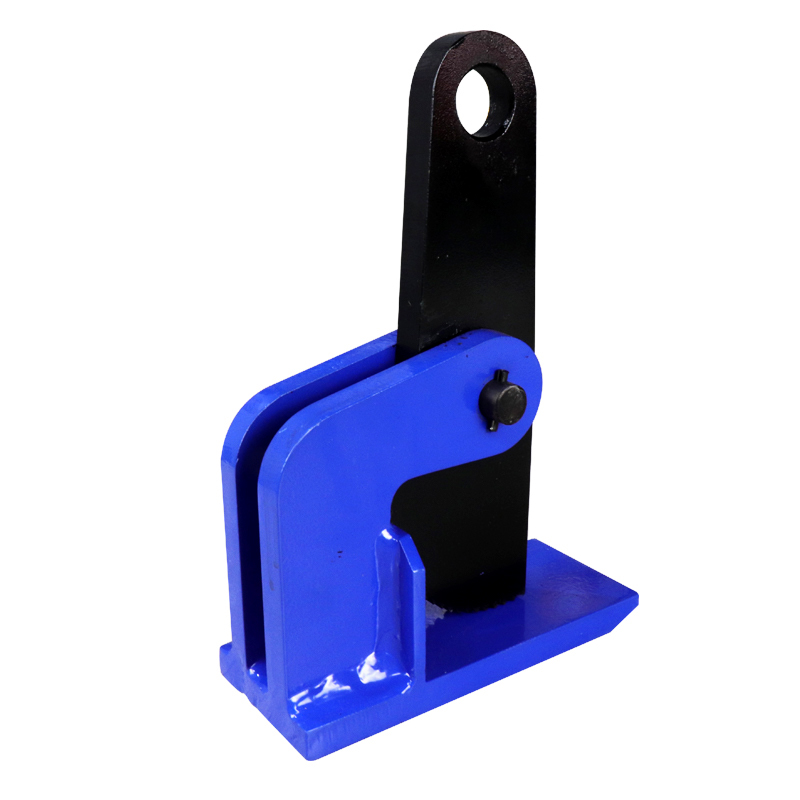

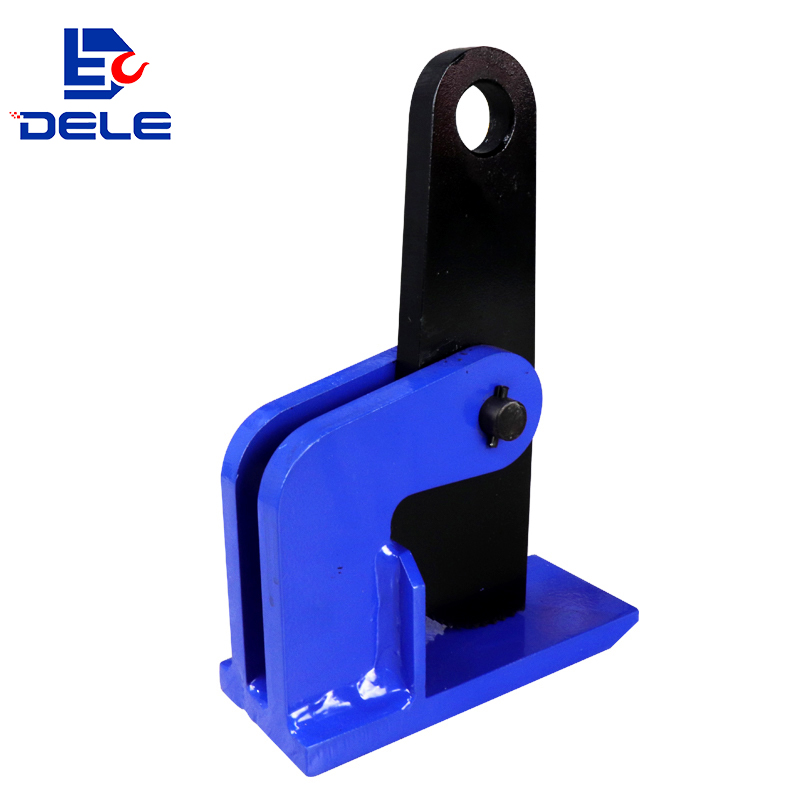

DHK/DHKS HORIZONTAL LIFTING CLAMP
●For horizontal lifting and transporting of steel plates.
●The compact shape and relative light own weight with a high lifting capacity.

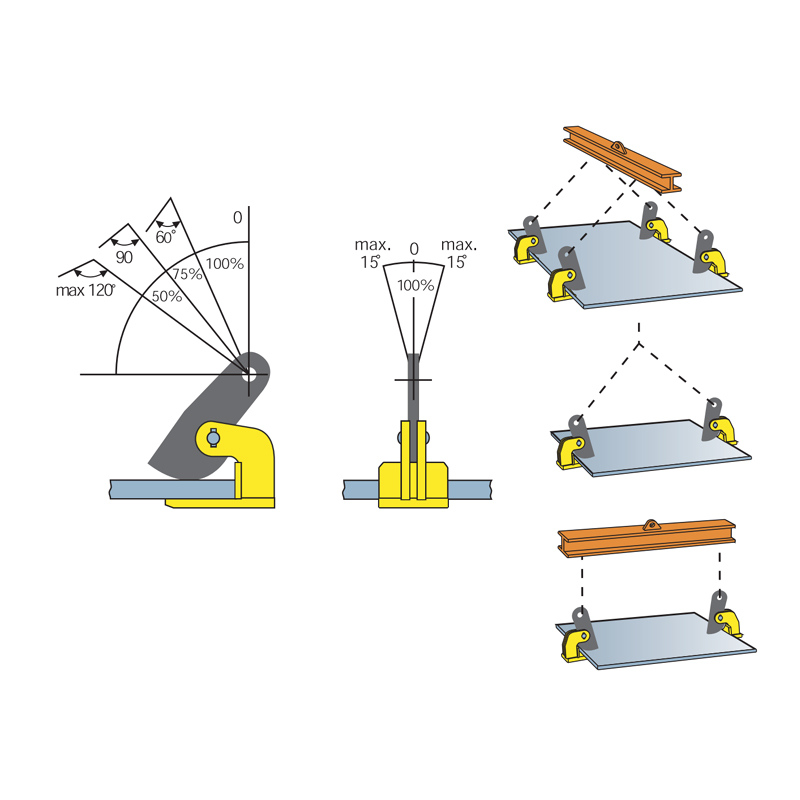

●The DHK/DHKS lifting clamps must always be used in pairs (or multiples thereof).
●DHK has an enlarged jaw opening.
| Model | WLL(t)per pair | Jaw Opening(mm) | Net Weight(kg) | ||||
| DHKS0.5 | 0.5 | 0-35 | 2.4 | ||||
| DHKS1 | 1.0 | 0-60 | 5.1 | ||||
| DHKS1.5 | 1.5 | 0-60 | 6.5 | ||||
| DHKS2 | 2.0 | 0-60 | 7.5 | ||||
| DHKS3 | 3.0 | 0-60 | 10 | ||||
| DHKS4 | 4.0 | 0-60 | 11.5 | ||||
| DHKS5 | 5.0 | 0-60 | 15.5 | ||||
| DHKS10 | 10.0 | 0-60 | 23 | ||||
| DHK1 | 1.0 | 0-100 | 7 | ||||
| DHK1.5 | 1.5 | 0-100 | 7.5 | ||||
| DHK2 | 2.0 | 0-100 | 9.5 | ||||
| DHK3 | 3.0 | 0-100 | 12 | ||||
| DHK4 | 4.0 | 0-100 | 14.5 | ||||
| DHK5 | 5.0 | 0-100 | 20 | ||||
| DHK10 | 10.0 | 0-100 | 22 |
