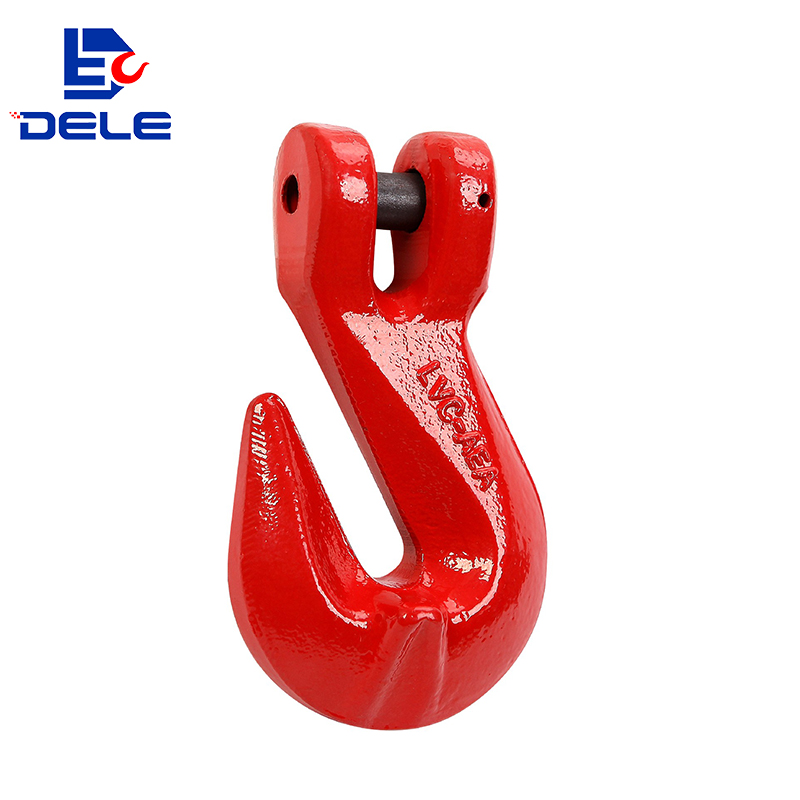

G80 CLEVIS GRAD HOOK
-Forged super Alloy steel-quenched and tempered.
-Individually proof tested at 2.5 times working load limit with certification.
-Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
-Suitable for EN818-2 G80 chain .
-Surface finish: powder plastified.
-Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.
| Product Specification : | ||||||||

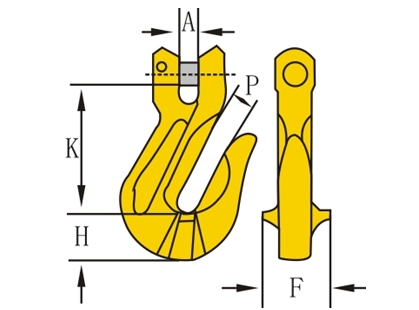

| Item no . | size (mm) | weight (kg) | dimension(mm) | |||||
| will(T) | K | F | A | H | P | |||
| DEL-8010-01 | 6-8 | 0.12 | 1.2 | 75 | 26.7 | 8 | 17.7 | 8.3 |
| DEL-8010-02 | 7/8-8 | 0.24 | 2 | 89 | 33.5 | 9.5 | 18.5 | 11 |
| DEL-8010-03 | 10-8 | 0.68 | 3.2 | 126 | 46 | 12.5 | 29 | 13 |
| DEL-8010-04 | 13-8 | 1.3 | 5.3 | 163.5 | 57.5 | 15 | 42.5 | 16.5 |
| DEL-8010-05 | 16-8 | 2.28 | 8 | 183.5 | 70 | 18.5 | 45.7 | 19 |
| DEL-8010-06 | 20-8 | 4.25 | 12.5 | 219 | 84 | 23 | 56 | 24 |
| DEL-8010-07 | 22-8 | 6.3 | 15 | 254 | 90 | 27 | 68.5 | 27 |
| DEL-8010-08 | 26-8 | 14.5 | 21.2 | 309 | 102 | 30 | 77 | 30 |
