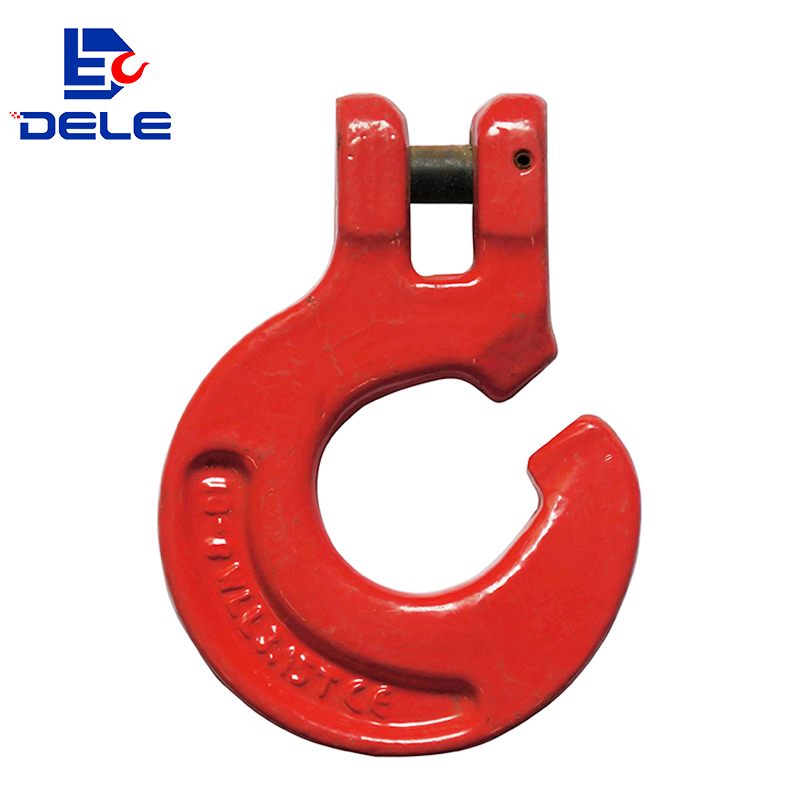

G80 CLEVIS FOREST HOOK
PRODUCT FEATURE :
-No for lifting ,only for logging.
-Forged super Alloy steel-quenched and tempered.
-Individually proof tested at 2.5 times working load limit with certification.
-Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
-Suitable for EN818-2 G80 chain .with flat on eye
-Surface finish: powder plastified.
-Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.

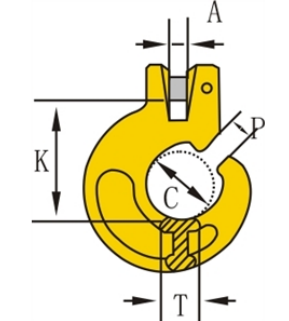

| product specification : | dimension(mm) | |||||||
| item no . | size (mm) | weight (kg) | will(T) | A | K | P | C | T |
| DEL-8014-02 | 7/8-8 | 0.413 | 2 | 9 | 66 | 10 | 34 | 19 |
| DEL-8014-03 | 10-8 | 0.92 | 3.15 | 13 | 80 | 12 | 42 | 21 |
| DEL-8014-04 | 13-8 | 1.75 | 5.3 | 16 | 96 | 16 | 54 | 30 |
