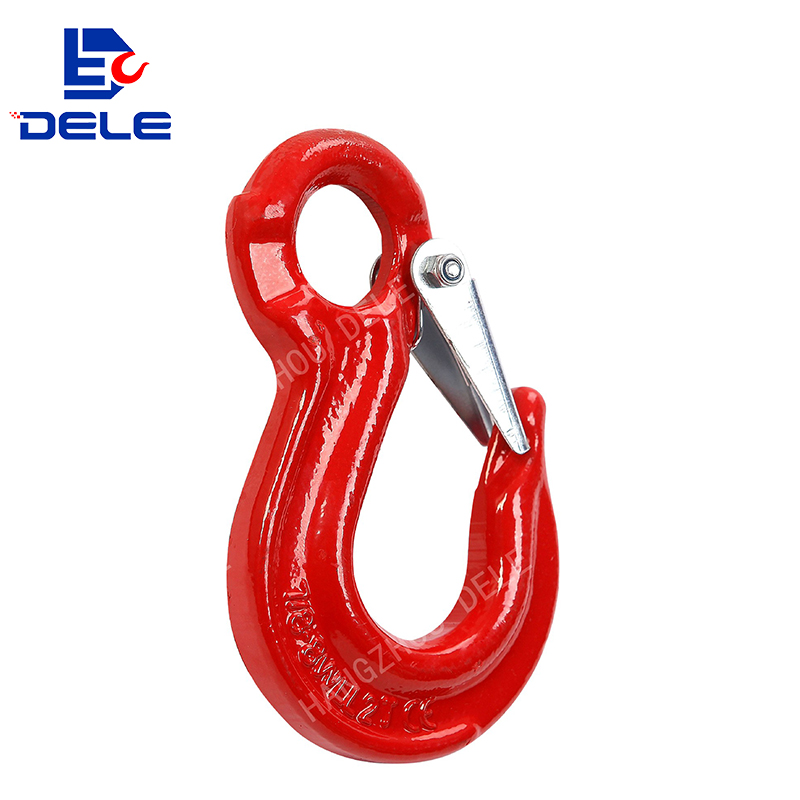

G80 EYE SLING HOOK WITH LATCH
PRODUCT FEATURE :
●Forged super Alloy steel-quenched and tempered.
●Individually proof tested at 2.5 times working load limit with certification.
●Ultimate load is 4 times the working load limit.
●100%magnaflux crack detection.
●With metal latch or cast latch.
●Suitable for EN818-2 G80 chain.
●Surface finish: powder plastified.
●Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.
| Product specification : | Dimension(mm) | ||||||||
| Item no . | Size (mm) | Weight (kg) | Will(T) | A | K | H | T | P1 | D |
| DEL-8007-01 | 6-8 | 0.35 | 1.2 | 20 | 80 | 19 | 16.5 | 25.5 | 9 |
| DEL-8007-02 | 7/8-8 | 0.54 | 2 | 25 | 98 | 24 | 19.5 | 30 | 11 |
| DEL-8007-03 | 10-8 | 1.09 | 3.2 | 38 | 120 | 32 | 20 | 34 | 15 |
| DEL-8007-04 | 13-8 | 2.07 | 5.3 | 43 | 153 | 42 | 31 | 39 | 19 |
| DEL-8007-05 | 16-8 | 3.4 | 8 | 50 | 185 | 48 | 38 | 49 | 23 |
| DEL-8007-06 | 18/20-8 | 6.45 | 12.5 | 62 | 217 | 58 | 52 | 44 | 24 |
