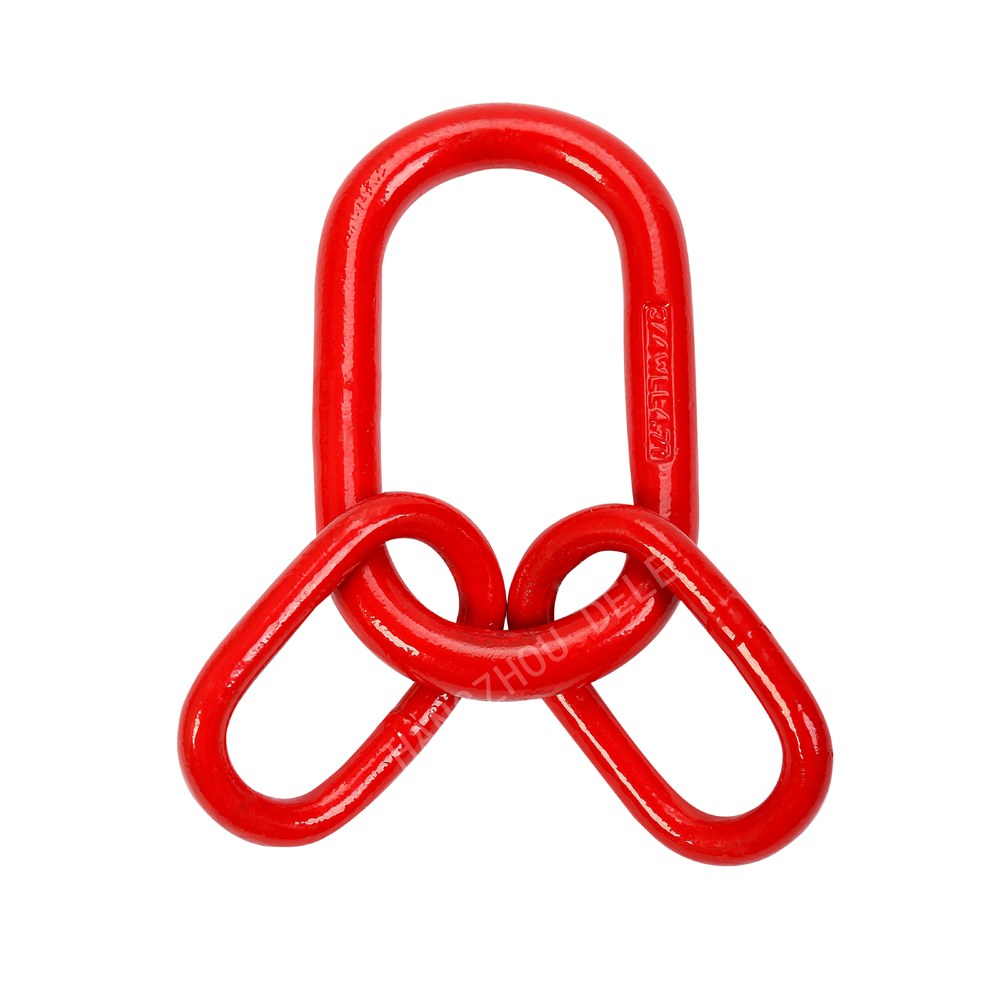

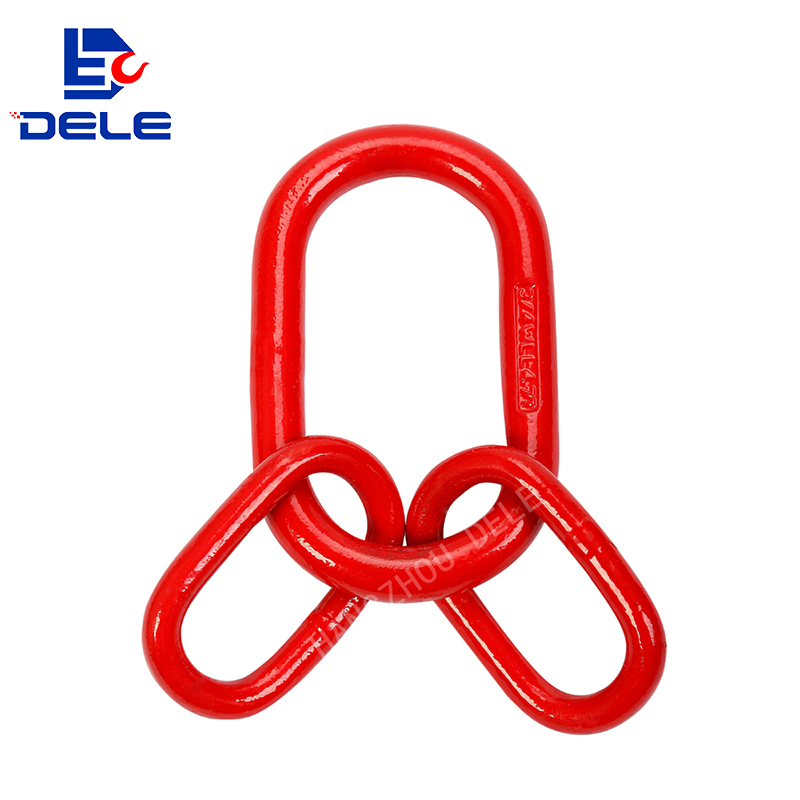

G80 MASTER LINK ASSEMBLY A-345
PRODUCT FEATURE :
●Super alloy steel-quenched and tempered.
●Individually proof tested at 2 times working load limit with certification.
●For chain sling :Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
●Surface finish: powder plastified.
●Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.There will be pressing flat only on request.

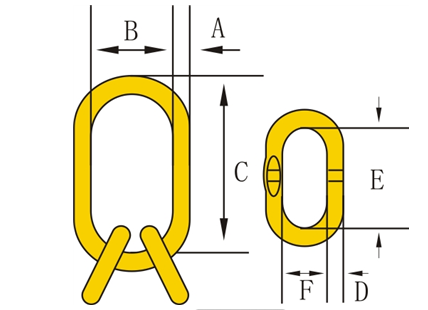

| Item No. | Size(mm) | Weight(kg) | Wll(ton) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) |
| DELE 8025-01 | 19 | 1.68 | 4.1 | 70 | 140 | 14 | 85 | 40 |
| DELE 8025-02 | 25 | 3.36 | 8.4 | 89 | 178 | 18 | 100 | 60 |
| DELE 8025-03 | 32 | 6.3 | 14.1 | 111 | 222 | 22 | 100 | 60 |
| DELE 8025-04 | 38 | 12.8 | 21.3 | 133 | 267 | 30 | 150 | 70 |
| DELE 8025-05 | 45 | 19.5 | 33.3 | 152 | 305 | 32 | 160 | 90 |
| DELE 8025-06 | 50 | 25.99 | 40.3 | 178 | 356 | 38 | 180 | 100 |
