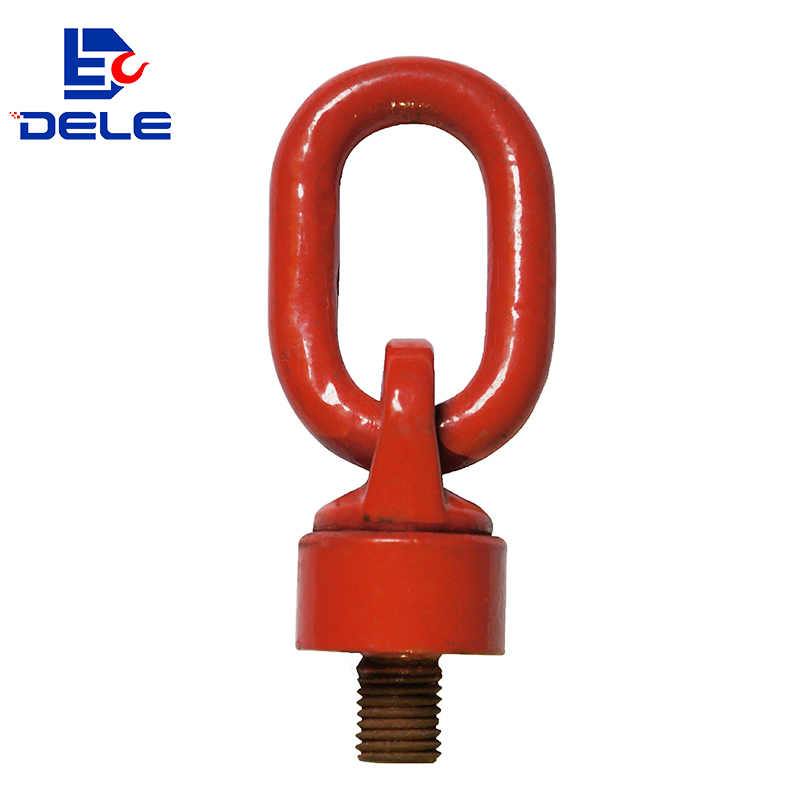

G80 LIFTING SCREW POINT
PRODUCT FEATURE :
●Forged Alloy steel-quenched and tempered.
●Individually proof tested at 2.5 times working load limit with certification.
●Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
●Surface finish: powder plastified.
●Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.

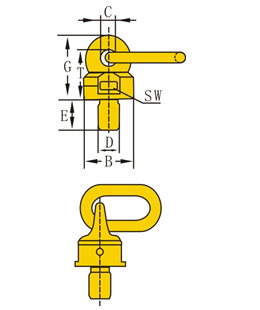

| Product specification : | Dimension(mm) | ||||||||||||||
| Item no . | Size (mm) | Weight (kg) | Wll(T)0° | Wll (T)90° | D×E | T | B | C | G | N | A | W | H | S | |
| DEL-8021-01 | M8 | 0.41 | 0.6 | 0.3 | M8*13 | 41 | 36 | 16.5 | 51 | 14 | 55 | 30 | 3 | 1 | |
| DEL-8021-02 | M10 | 0.43 | 0.9 | 0.45 | M10*18 | 41 | 36 | 16.5 | 51 | 14 | 55 | 30 | 3 | 1 | |
| DEL-8021-03 | M12 | 0.44 | 1 | 0.5 | M10*90 | 41 | 36 | 16.5 | 51 | 14 | 55 | 30 | 3 | 1 | |
| DEL-8021-04 | M16 | 0.46 | 2 | 1.12 | M16*40 | 42 | 36 | 16.5 | 52 | 14 | 55 | 30 | 3 | 1 | |
| DEL-8021-05 | M20 | 0.96 | 4 | 2 | M20*30 | 56 | 49.5 | 19 | 68 | 16 | 70 | 35 | 3.5 | 1 | |
| DEL-8021-06 | M24 | 1.45 | 6.3 | 3.15 | M24*40 | 65.5 | 57 | 22 | 78 | 18 | 85 | 40 | 3.5 | 1.5 | |
| DEL-8021-07 | M27 | 1.47 | 6.3 | 3.15 | M27*35 | 65.5 | 57 | 22 | 78 | 18 | 85 | 40 | 4 | 1.5 | |
| DEL-8021-08 | M30(5T) | 2.17 | 10.6 | 5.3 | M30*35 | 80.5 | 66 | 23.5 | 96 | 20 | 85 | 40 | 4 | 1.5 | |
| DEL-8021-09 | M30(8T) | 3.57 | 11.8 | 8 | M30*35 | 92 | 80 | 28 | 112 | 22 | 115 | 50 | 6 | 2 | |
| DEL-8021-10 | M36 | 4.17 | 11.8 | 8 | M36*92 | 89.5 | 80 | 27 | 109 | 22 | 115 | 50 | 6 | 2 | |
| DEL-8021-11 | M39 | 3.65 | 11.8 | 8 | M39*50 | 89.5 | 80 | 27 | 109 | 22 | 115 | 50 | 6 | 2 | |
| DEL-8021-12 | M42 | 3.62 | 15 | 10 | M42*50 | 89.5 | 80 | 27 | 109 | 22 | 115 | 50 | 6 | 2.5 | |
