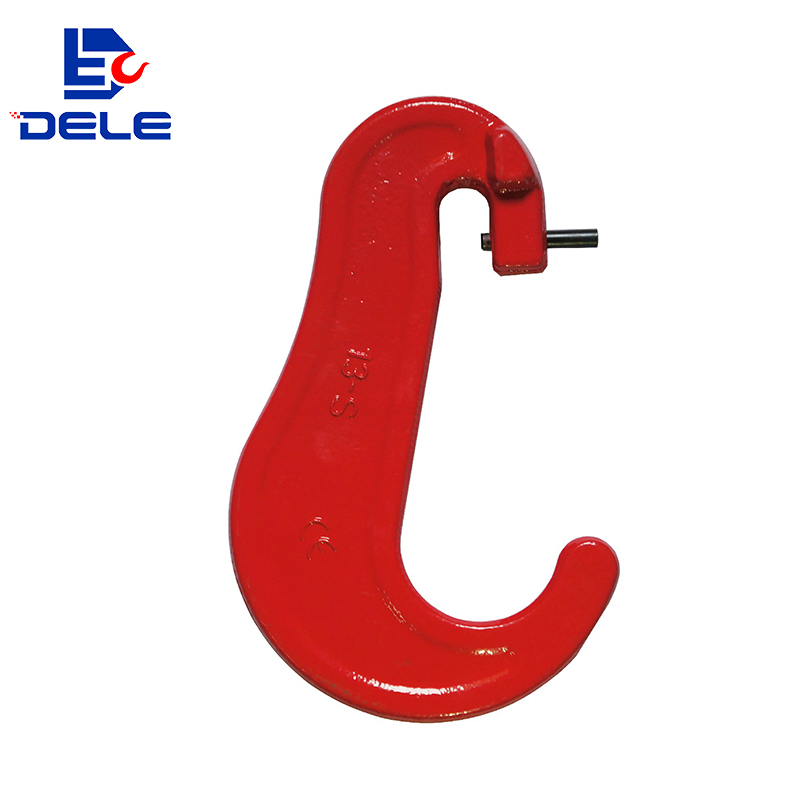

G80 LASHING TYPE C HOOK WITH SPRING PIN
PRODUCT FEATURE :
-Forged Alloy steel-quenched and tempered.
-Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
-Suitable for EN818-2 G80 chain .
-Surface finish: powder plastified.
-Colour code :Red (RALral3020)/yellow (RAL1003).
Other colour is available as per request.

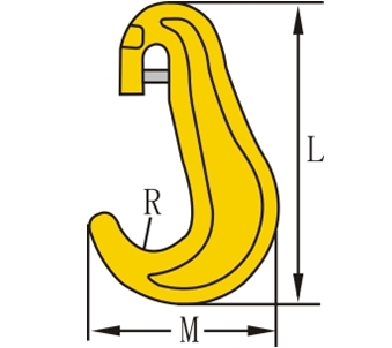

| Product specification : | Dimension(mm) | |||||
| Item no . | size (mm) | weight (kg) | will(T) | L | M | R |
| DEL-8020-01 | 9 | 0.5 | 2.5 | 143 | 90.5 | 18.5 |
| DEL-8020-02 | 11 | 0.85 | 3.75 | 177 | 109.5 | 22 |
| DEL-8020-03 | 13 | 1.38 | 5.4 | 205 | 129 | 25.5 |
