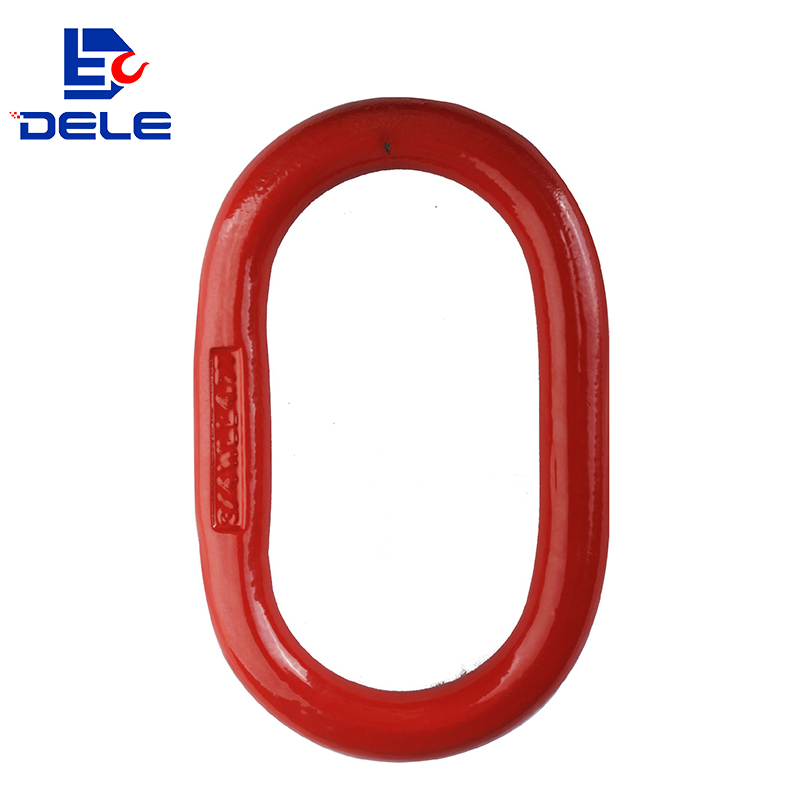

G80 FORGED MASTER LINK A-342
PRODUCT FEATURE :
-Super Alloy steel-quenched and tempered.
-Individually proof tested at 2 times working load limit with certification.
-For chain sling :Ultimate load is 4 times the working load limit.
-Surface finish: powder plastified.
-Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.
There will be pressing flat only on request.

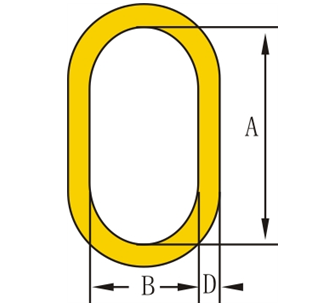

| ITEM NO. | SIZE(MM) | WEIGHT/KG | WLL/T | DIMENSION(MM) | ||
| A | B | D | ||||
| DELE8088-01 | 13 | 0.42 | 2.2 | 127 | 63.5 | 13 |
| DELE8088-02 | 16 | 0.8 | 3 | 152 | 76 | 16 |
| DELE8088-03 | 19 | 1 | 4.7 | 140 | 70 | 19 |
| DELE8088-04 | 22 | 1.5 | 6.5 | 160 | 90 | 22 |
| DELE8088-05 | 25 | 2.1 | 11 | 178 | 89 | 25 |
| DELE8088-06 | 32 | 4.3 | 16 | 222 | 111 | 32 |
| DELE8088-07 | 38 | 7.5 | 21.7 | 267 | 133 | 38 |
| DELE8088-08 | 44 | 11.5 | 28.4 | 305 | 152.5 | 45 |
| DELE8088-09 | 51 | 16.5 | 44.3 | 356 | 178 | 51 |
