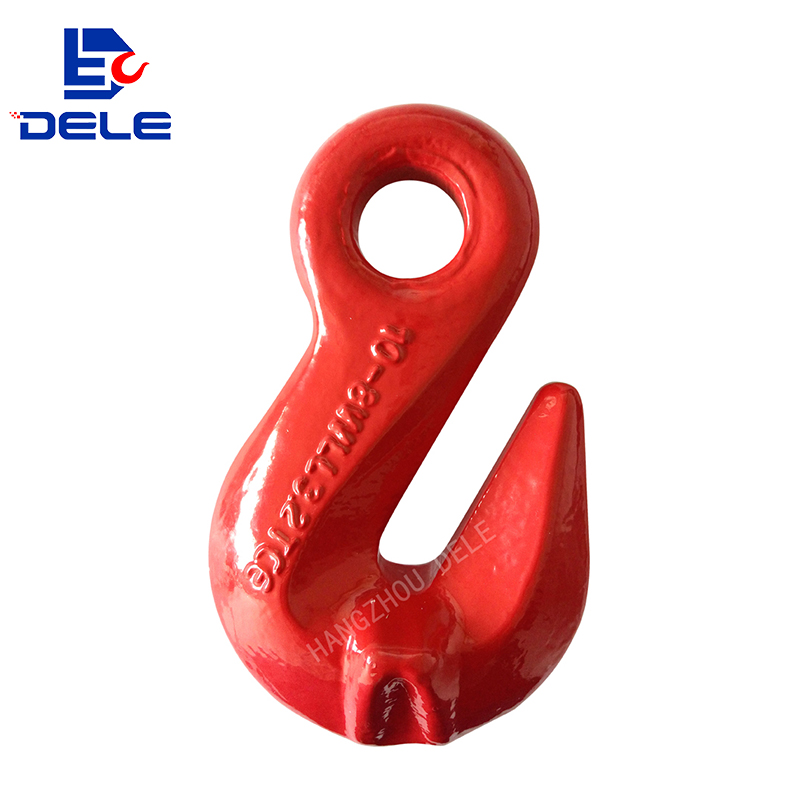

G80 EYE SHORTENING GRAD HOOK
PRODUCT FEATURE :
-Forged super Alloy steel-quenched and tempered.
-Individually proof tested at 2.5 times working load limit with certification.
-Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
-Suitable for EN818-2 G80 chain .
-Surface finish: powder plastified.
-Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.

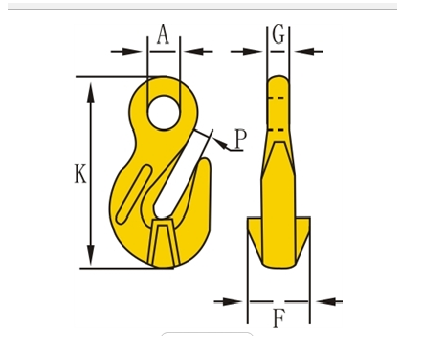

| Product specification : | Dimension(mm) | |||||||
| Item no . | size (mm) | weight (kg) | will(T) | K | G | F | A | P |
| DEL-8009-01 | 6-8 | 0.135 | 1.2 | 75.2 | 8 | 22 | 13.5 | 8 |
| DEL-8009-02 | 7/8-8 | 0.25 | 2 | 88.5 | 9 | 35 | 17 | 10.8 |
| DEL-8009-03 | 10-8 | 0.7 | 3.2 | 121.5 | 14.5 | 47 | 20 | 13 |
| DEL-8009-04 | 13-8 | 1.325 | 5.3 | 158 | 17 | 58 | 26 | 16.5 |
| DEL-8009-05 | 16-8 | 2.3 | 8 | 169 | 22 | 71 | 30 | 19.2 |
| DEL-8009-06 | 20-8 | 4.6 | 12.5 | 219 | 23 | 98 | 37 | 24 |
| DEL-8009-07 | 22-8 | 8.2 | 15 | 259 | 26 | 110 | 44 | 28 |
| DEL-8009-08 | 26-8 | 9.8 | 21.2 | 298 | 30 | 124 | 48 | 30 |
| DEL-8009-09 | 32-8 | 19.4 | 31.5 | 361 | 36 | 138 | 57 | 38 |
