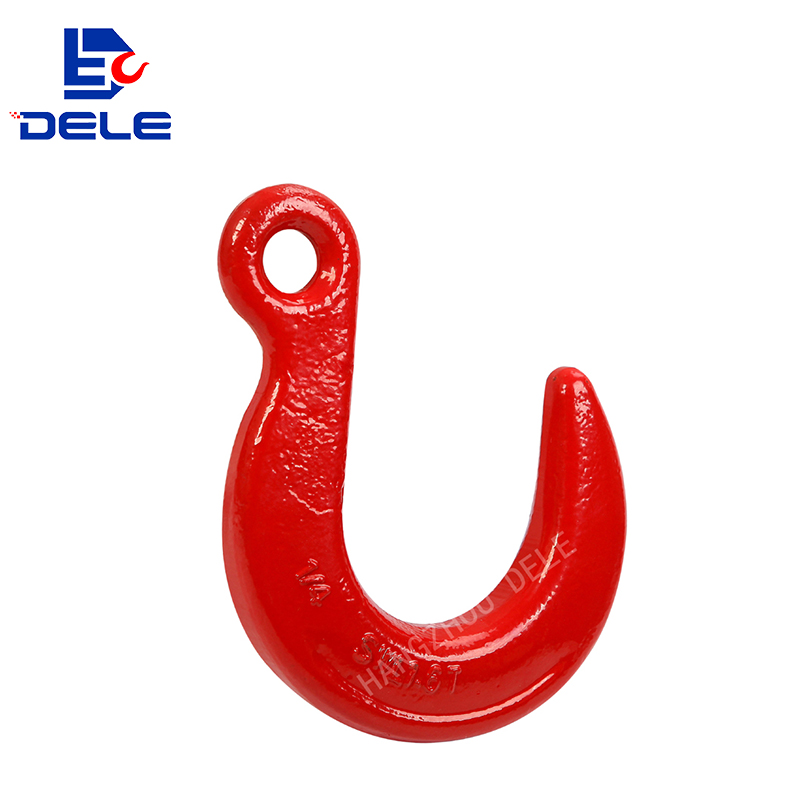

G80 EYE FOUNDRY HOOK
PRODUCT FEATURE :
-Forged super Alloy steel-quenched and tempered.
-Individually proof tested at 2.5 times working load limit with certification.
-Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
-Suitable for EN818-2 G80 chain .
-Surface finish: powder plastified.
-Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.

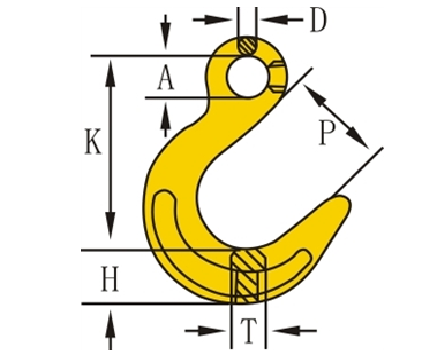

| Product specification : | Dimension(mm) | |||||||
| Item no . | size (mm) | weight (kg) | will(T) | K | T | A | H | P |
| DEL-8012-01 | 7/8-8(1/4) | 1 | 1.6 | 163 | 25.4 | 18 | 31 | 63.5 |
| DEL-8012-02 | 10-8(3/8) | 2.24 | 3.2 | 200 | 32.6 | 22 | 38 | 76 |
| DEL-8012-03 | 13-8(1/2) | 3.22 | 5.3 | 238 | 38.1 | 27 | 44.5 | 89 |
| DEL-8012-04 | 16-8(5/8) | 4.99 | 8 | 278 | 46 | 32 | 52 | 102 |
| DEL-8012-05 | 20-8(3/4) | 9.29 | 12.5 | 325 | 55 | 38 | 65 | 114.5 |
| DEL-8012-06 | 22-8(7/8) | 11.93 | 15 | 361 | 57 | 45 | 69 | 127.5 |
| DEL-8012-07 | 26-8 | 16.8 | 21.2 | 402 | 66 | 67.5 | 77 | 1240 |
| DEL-8012-08 | 32-8 | 26.6 | 31.5 | 461 | 80 | 81.5 | 97.5 | 153.5 |
