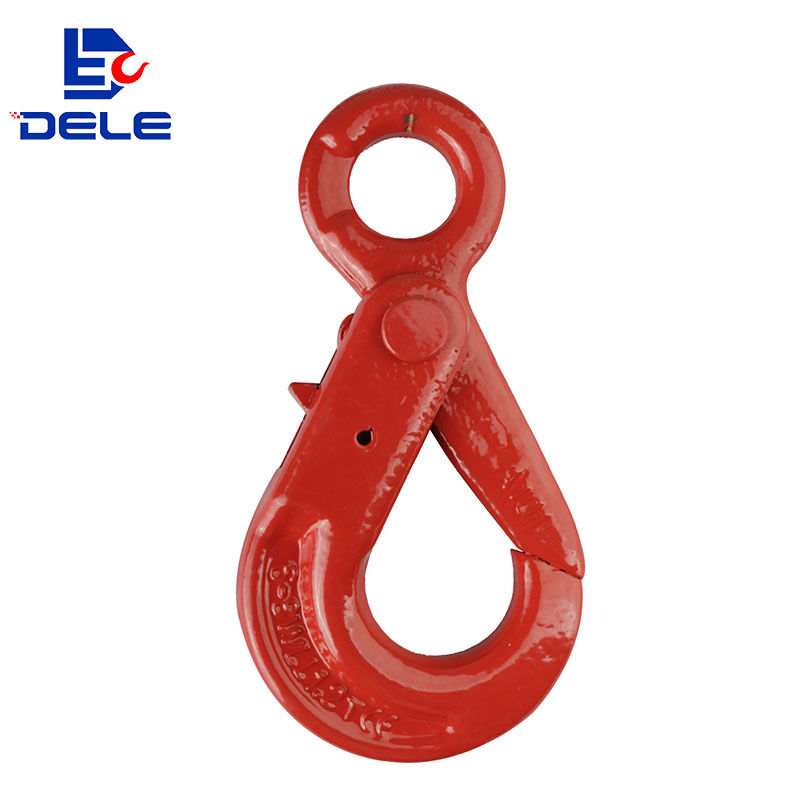

G80 EUROPEAN TYPE EYE SELF-LOCKING HOOK
PRODUCT FEATURE :
-Forged super Alloy steel-quenched and tempered.
-Individually proof tested at 2.5 times working load limit with certification.
-Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
-Suitable for EN818-2 G80 chain .
-Surface finish: powder plastified.
-Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.
| Product specification : | Dimension(mm) | |||||||
| item no . | size (mm) | weight (kg) | will(T) | A | K | D | P | H |
| DEL-8004-01 | 6-8 | 0.46 | 1.2 | 22 | 110.5 | 10 | 34 | 20.5 |
| DEL-8004-02 | 7/8-8 | 0.79 | 2 | 25 | 136 | 12 | 46 | 25 |
| DEL-8004-03 | 10-8 | 1.52 | 3.2 | 32 | 171 | 15 | 56 | 31 |
| DEL-8004-04 | 13-8 | 2.87 | 5.3 | 40.5 | 208.5 | 19.5 | 69 | 42 |
| DEL-8004-05 | 16-8 | 5.69 | 8 | 56 | 257.5 | 22 | 86 | 53 |
| DEL-8004-06 | 20-8 | 7.15 | 12.5 | 64.5 | 275 | 27 | 88 | 58 |
| DEL-8004-07 | 22-8 | 13.4 | 15 | 70 | 320 | 30 | 98 | 64 |
| DEL-8004-08 | 26-8 | 18 | 21.2 | 80 | 363 | 34 | 110 | 75 |
| DEL-8004-09 | 32-8 | 44.5 | 31.5 | 105 | 472 | 45 | 166 | 97 |
