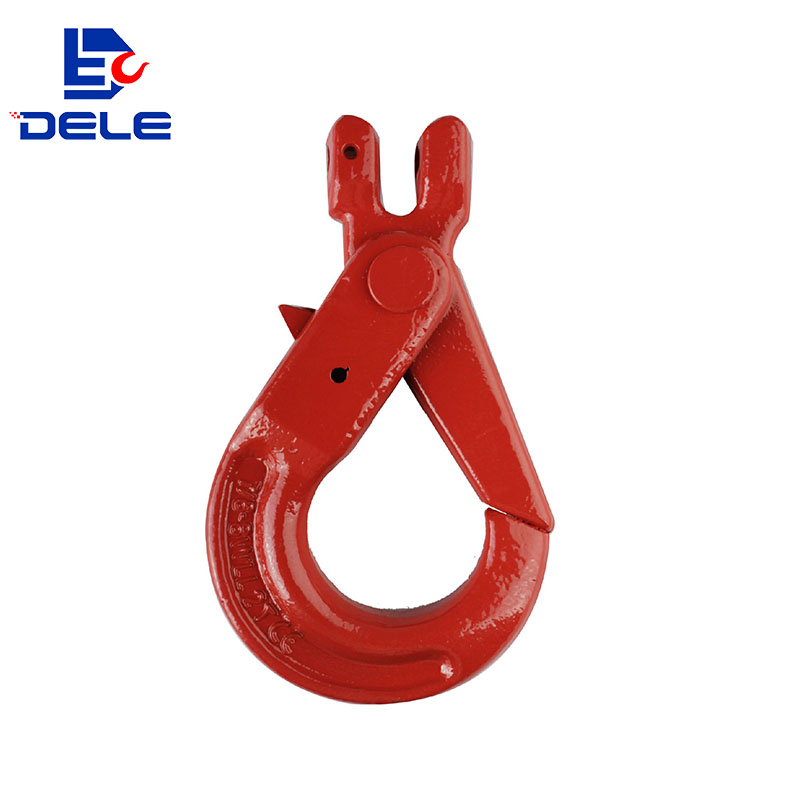

G80 EUROPEAN TYPE CLEVIS SELF-LOCKING HOOK
PRODUCT FEATURES :
-Forged super Alloy steel-quenched and tempered.
-Individually proof tested at 2.5 times working load limit with certification.
-Ultimate load is 4 times the working load limit.100%magnaflux crack detection.Suitable for EN818-2 G80 chain .
-Surface finish: powder plastified.
Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.
| Product specification : | Dimension(mm) | |||||||
| Item no . | size (mm) | weight (kg) | will(T) | k | H | T | M | P |
| DEL-8005-01 | 6-8 | 0.5 | 1.2 | 99 | 20.5 | 15.5 | 8 | 29 |
| DEL-8005-02 | 7/8-8 | 0.86 | 2 | 123 | 25 | 20 | 9 | 34 |
| DEL-8005-03 | 10-8 | 1.41 | 3.2 | 146 | 31 | 27 | 11 | 44 |
| DEL-8005-04 | 13-8 | 2.73 | 5.3 | 185 | 42 | 32 | 14 | 52 |
| DEL-8005-05 | 16-8 | 5.6 | 8 | 222 | 53 | 45 | 18 | 82 |
| DEL-8005-06 | 18/20-8 | 6.5 | 12.5 | 228 | 58 | 47 | 26 | 88 |
| DEL-8005-07 | 22-8 | 16 | 15 | 256 | 64 | 48 | 28 | 88 |
