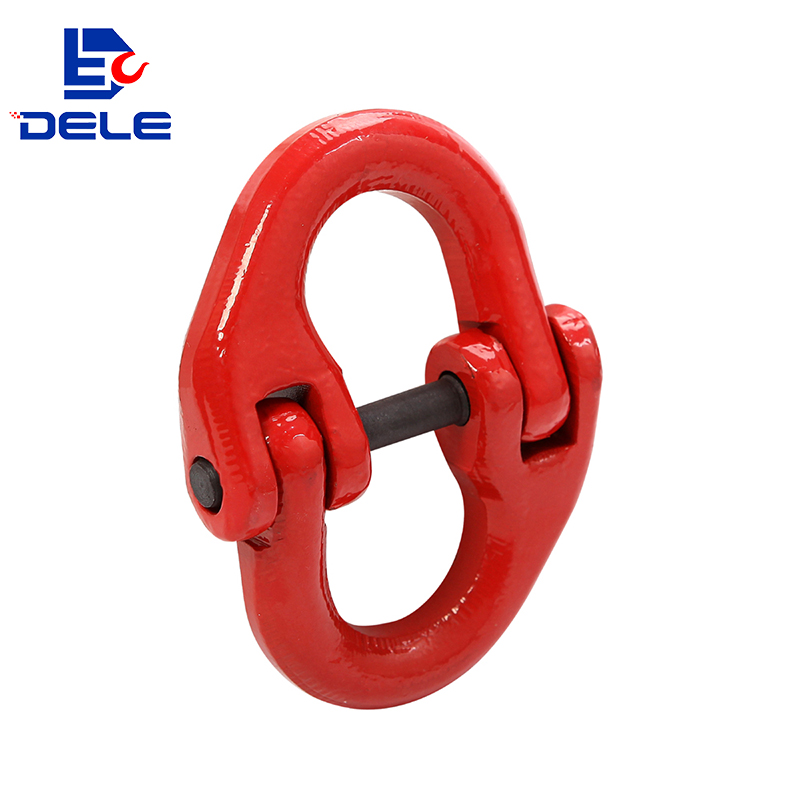

G80 EUROREAN TYPE CONNECTING LINK
PRODUCT FEATURES :
-Forged Alloy steel-quenched and tempered.
-Individually proof tested at 2.5 times working load limit with certification.
-Ultimate load is 4 times the working load limit.100%magnaflux crack detection.
-Suitable for EN818-2 G80 chain .
-Surface finish: powder plastified.
-Colour code :Red (RALral3020)/yellow (RAL1003).other colour is available as per request.
| Product specification : | Dimension(mm) | ||||||
| item no . | size (mm) | weight (kg) | will(T) | A | B | K | D |
| DEL-8001-01 | 6-8 | 0.075 | 1.2 | 16.2 | 37 | 42 | 7 |
| DEL-8001-02 | 7/8-8 | 0.16 | 2 | 20.5 | 48 | 58 | 8.5 |
| DEL-8001-03 | 10-8 | 0.285 | 3.2 | 28 | 60 | 68 | 10.8 |
| DEL-8001-04 | 13-8 | 0.595 | 5.3 | 30 | 76 | 90 | 15 |
| DEL-8001-05 | 16-8 | 1.1 | 8 | 36.3 | 91 | 101.9 | 19.8 |
| DEL-8001-06 | 18/20-8 | 1.8 | 12.5 | 44 | 109 | 121 | 24 |
| DEL-8001-07 | 22-8 | 3.2 | 15 | 51 | 130 | 141.5 | 26 |
| DEL-8001-08 | 26-8 | 4.5 | 21.2 | 58 | 152 | 161 | 30 |
| DEL-8001-09 | 32-8 | 9 | 31.5 | 67.5 | 190 | 197 | 37 |
