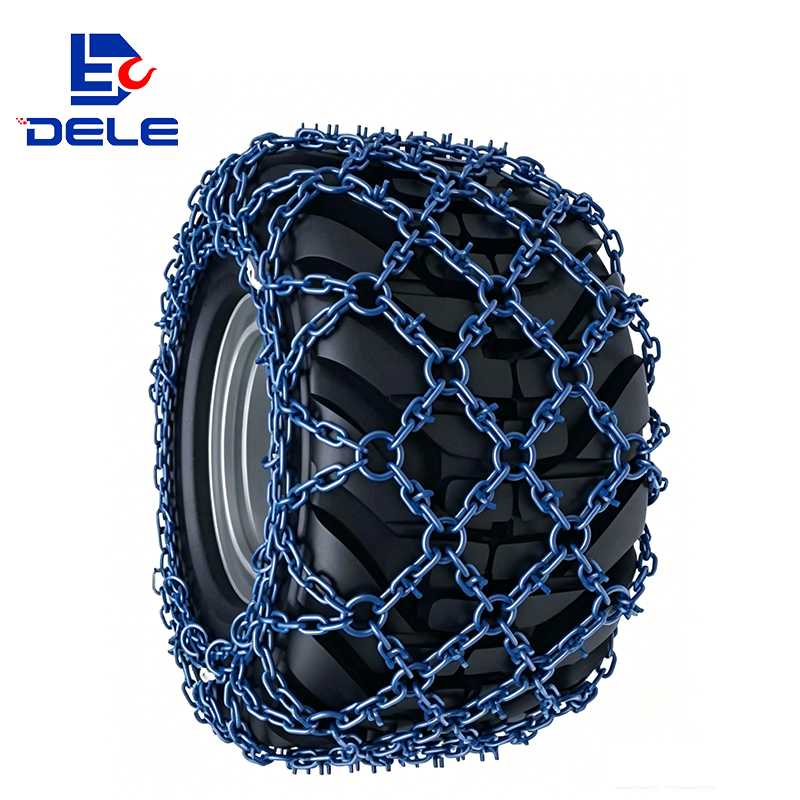

TRIPLE DIAMOND, U-BARMESH FELLER CHAIN
Skidder Chain TDUX
Alloy Chain Net
Triple Diamond
U-stud & I-bar For Great Traction
Great For Construction And Forestry
Using High-strength Alloy Steel Material, It Can Cope With Frequent Friction Of Gravel, Tree Roots, And Soil In Forest Areas, And Is Not Easy To Break.
Strong Grip Performance
The Road Conditions In The Forest Area Are Complex And Bumpy, And The Overall Structure Of The Anti-skid Chains Is Sturdy, Capable Of Withstanding Frequent Impacts And Pulling Of Vehicles
Equipped With A Locking Device, It Is Not Easy To Loosen Or Shift When Driving In Bumpy Forest Areas
Specially Designed For Complex Forest Environments Such As Muddy Roads, Icy And Snowy Roads, Gravel Roads, Steep Mountain Roads, Etc
| ITEM NO | TIRE SIZE | WEIGHT /Pair(kg) |
| TDU-14 | 500/45-22.5 | 186 |
| 700/45-22.5 | 271 | |
| 600/65-25 | 231 | |
| 700/40-22.5 | 251 | |
| 600/60-30.5 | 335 | |
| 650/65-26.5 | 354 | |
| 750/55-26.5 | 364 | |
| 710/45-26.5 | 321 | |
| 18.4-26,16.9-30 | 255 | |
| 23.1-26,18.4-34 | 326 | |
| 17.5-25 std | 200 | |
| 700/50-26.5 | 310 | |
| 700/55-34 | 383 | |
| 500/60-22.5 | 206 | |
| 600/50-22.5 | 267 | |
| 600/55-26.5 | 296 | |
| 600/65-34 | 341 | |
| 780/55-28.5 | 394 | |
| TDU-16 | 750/45-30.5 | 472 |
| 650/65-26.5 | 445 | |
| 600/60-30.5 | 473 | |
| 700/70-34 | 626 | |
| 750/55-26.5 | 452 | |
| 700/50-30.5 | 475 | |
| 700/45-22.5 | 384 | |
| 710/45-26.5 | 410 | |
| 700/50-26.5 | 485 | |
| 28.1-26,700/55-34 | 535 | |
| 23.1-26 | 386 | |
| 24.5-32,23.1-34 | 472 | |
| 23.5-25 std | 410 | |
| 23.5-25 L5 | 422 | |
| 30.5-32 | 502 | |
| 26.5-25 Std | 495 | |
| 600/55-26.5 | 380 | |
| 600/65-34 | 531 | |
| 780/55-28.5 | 488 | |
| TDU-18 | 710/45-26.5 | 706 |
| 700/50-26.5 | 596 | |
| 700/55-34 | 699 | |
| 24.5-32,23.1-34 | 684 | |
| 30.5-32 | 709 | |
| 750/55-26.5 | 624 | |
| 35.5-32 | 823 | |
| 73x44.00-32 | 895 |
