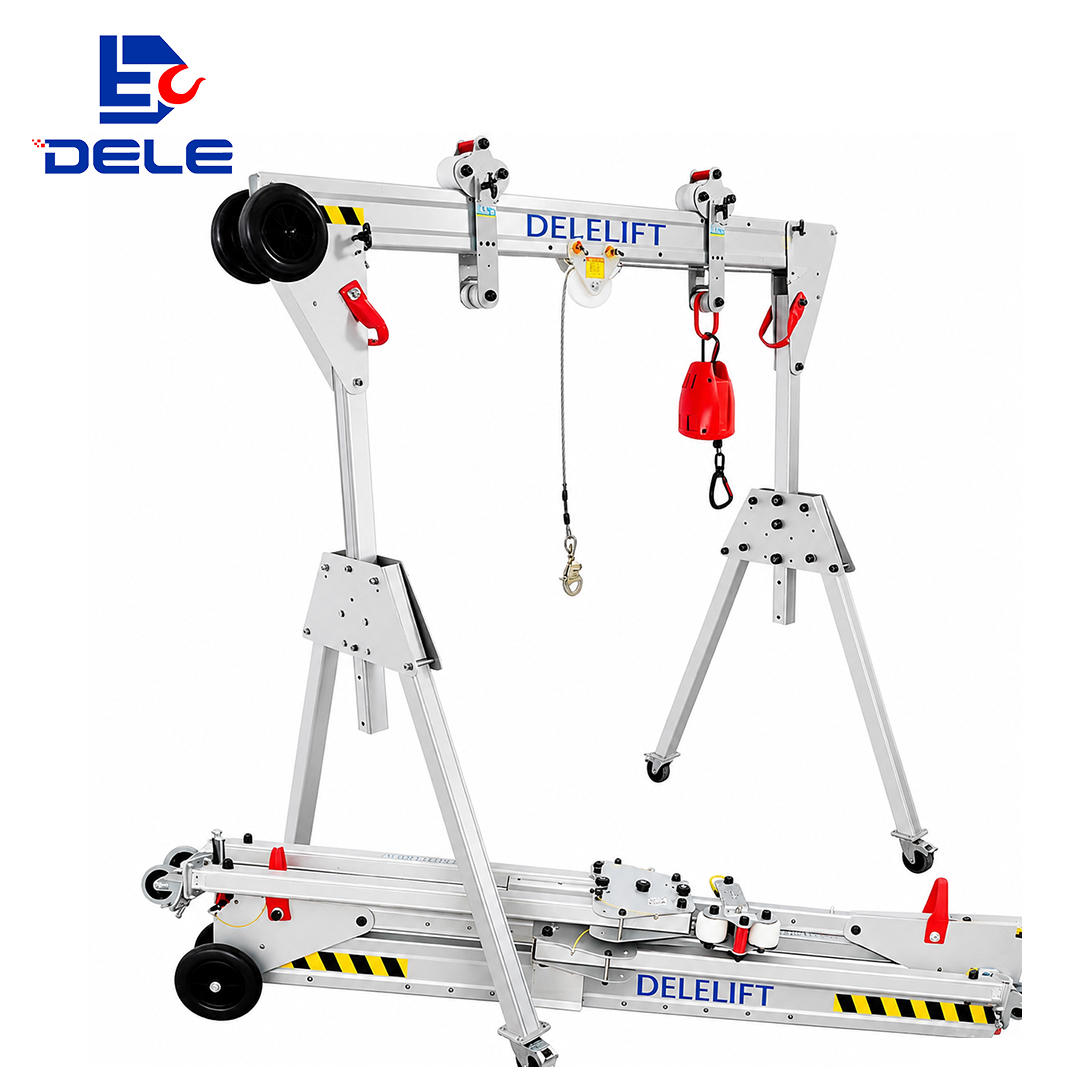

PORTABLE GANTRY SYSTEM
LOAD-TROLLEY
Simple and quick installation
Wheels are made of high-strength nylon
QUICK-RELEASE LATCHT
Transform Quick Release Pin Only No additional tools required
Plug and unplug through 6 pins lnstallation takes less than 1 minute
COMPACTNESS
Foldable aluminum alloy structural composition Compact when folded for portability
PACKAGE AND TRANSPORTATION
Choice of professional packaging accessories
Make transportation more convenient
PORTABLE
Transport and carry only 1-2 persons Weight only 33 kg

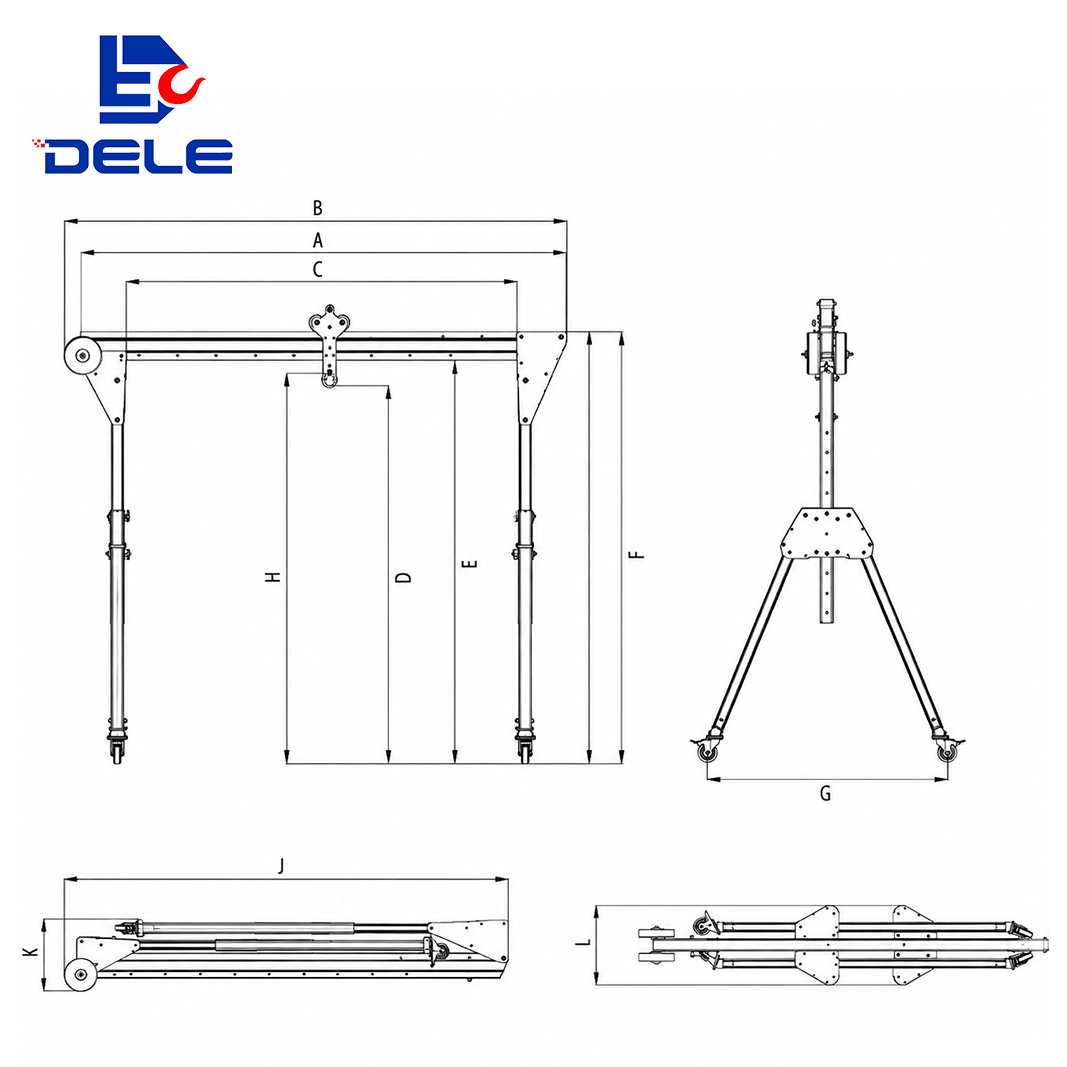

| Model | WLL(kg) | Lifting human | Dimension parameter(mm) | Net weight (kg) | ||||||||||
| Capacity (kg) | Number | A | B | C | E | F | G | J | K | L | H | |||
| DLVS20 | 500 | 250 | 3 | 2000 | 2076 | 1100-1500 | 1914-2114 | 2064-2264 | 1158 | 2190 | 415 | 440 | 1850-2050 | 35 |
| DLVS23 | 400 | 200 | 2 | 2300 | 2376 | 1200-1800 | 2376 | 38 | ||||||
| DLVS40 | 250 | 125 | 1 | 4000 | 4076 | 2700-3500 | 4076 | 42 | ||||||
| DLVM20 | 400 | 200 | 2 | 2000 | 2076 | 1100-1500 | 1818-2218 | 1968-2368 | 1215 | 2076 | 1755-2155 | 36 | ||
| DLVM23 | 400 | 200 | 2 | 2300 | 2376 | 1200-1800 | 2376 | 37 | ||||||
| DLVM40 | 250 | 125 | 1 | 4000 | 4076 | 2700-3500 | 4076 | 42 | ||||||
| DLVT20 | 250 | 125 | 1 | 2000 | 2076 | 1100-1500 | 2092-2992 | 2242-3142 | 1586 | 2631 | 2028-2928 | 40 | ||
| DLVT23 | 250 | 125 | 1 | 2300 | 2376 | 1200-1800 | 2631 | 41 | ||||||
| DLVT40 | 250 | 125 | 1 | 4000 | 4076 | 2700-3500 | 4076 | 46 | ||||||
| DLV1S20 | 1000 | 500 | 3 | 2000 | 2077 | 1102-1502 | 1661-2161 | 1822-2322 | 1270 | 2077 | 464 | 536 | 1549-2049 | 48 |
| DLV1S30 | 1000 | 500 | 3 | 3000 | 3077 | 1902-2502 | 3077 | 56 | ||||||
| DLV1S40 | 500 | 500 | 3 | 4000 | 4077 | 1902-3502 | 4077 | 61 | ||||||
| DLV1M20 | 1000 | 500 | 3 | 2000 | 2077 | 1102-1502 | 1900-2600 | 2061-2761 | 1484 | 2200 | 1859-2559 | 52 | ||
| DLV2M30 | 1000 | 500 | 3 | 3000 | 3077 | 1902-2502 | 3077 | 57 | ||||||
| DLV3M40 | 500 | 500 | 3 | 4000 | 4077 | 1902-3502 | 4077 | 62 | ||||||
| DLV1T20 | 1000 | 500 | 3 | 2000 | 2077 | 1102-1502 | 2140-3040 | 2301-3201 | 1698 | 2830 | 2099-2999 | 56 | ||
| DLV2T30 | 1000 | 500 | 3 | 3000 | 3077 | 1902-2502 | 3077 | 61 | ||||||
| DLV3T40 | 500 | 500 | 3 | 4000 | 4077 | 1902-3502 | 4077 | 65 | ||||||
