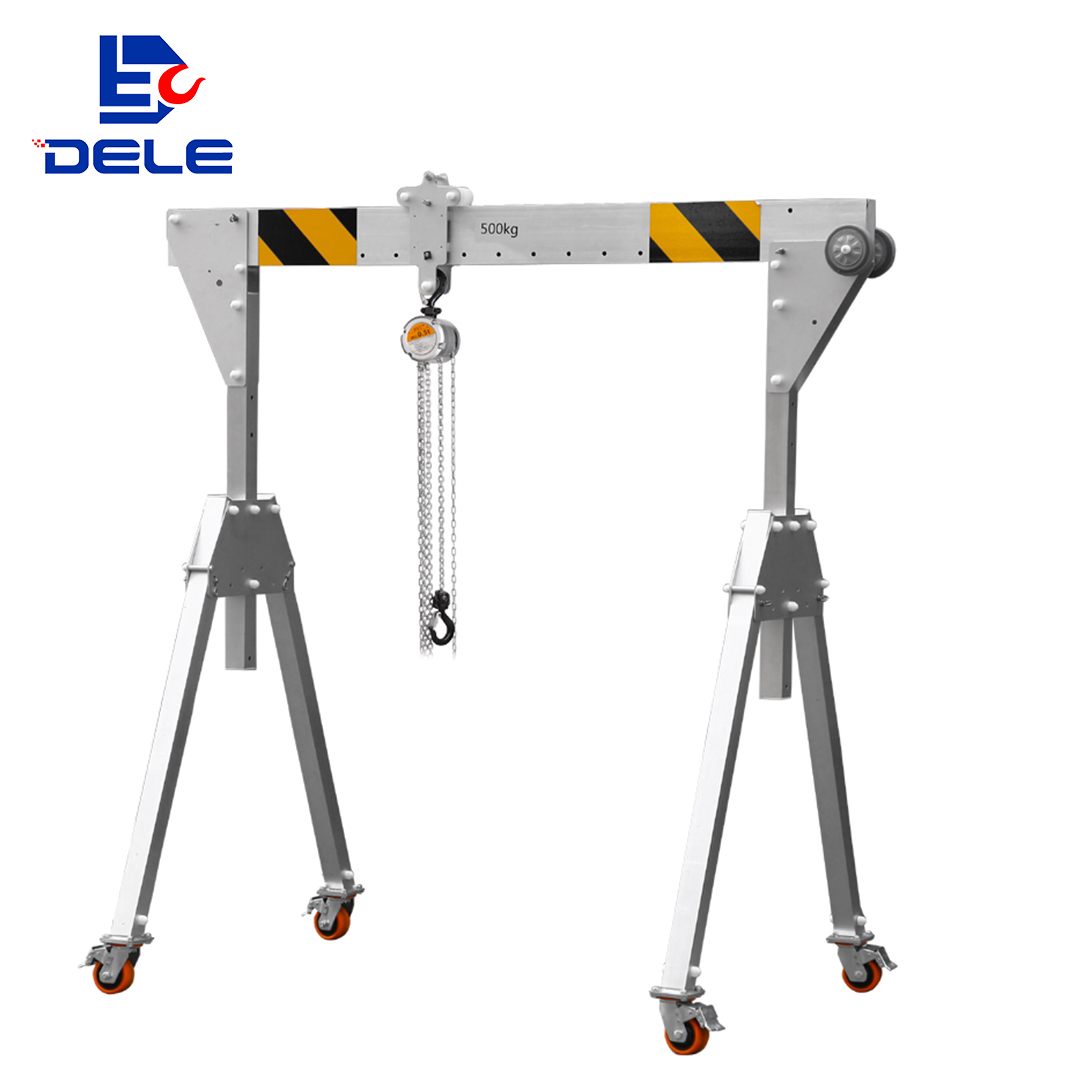

DLV PORTABLE GANTRY SYSTEM

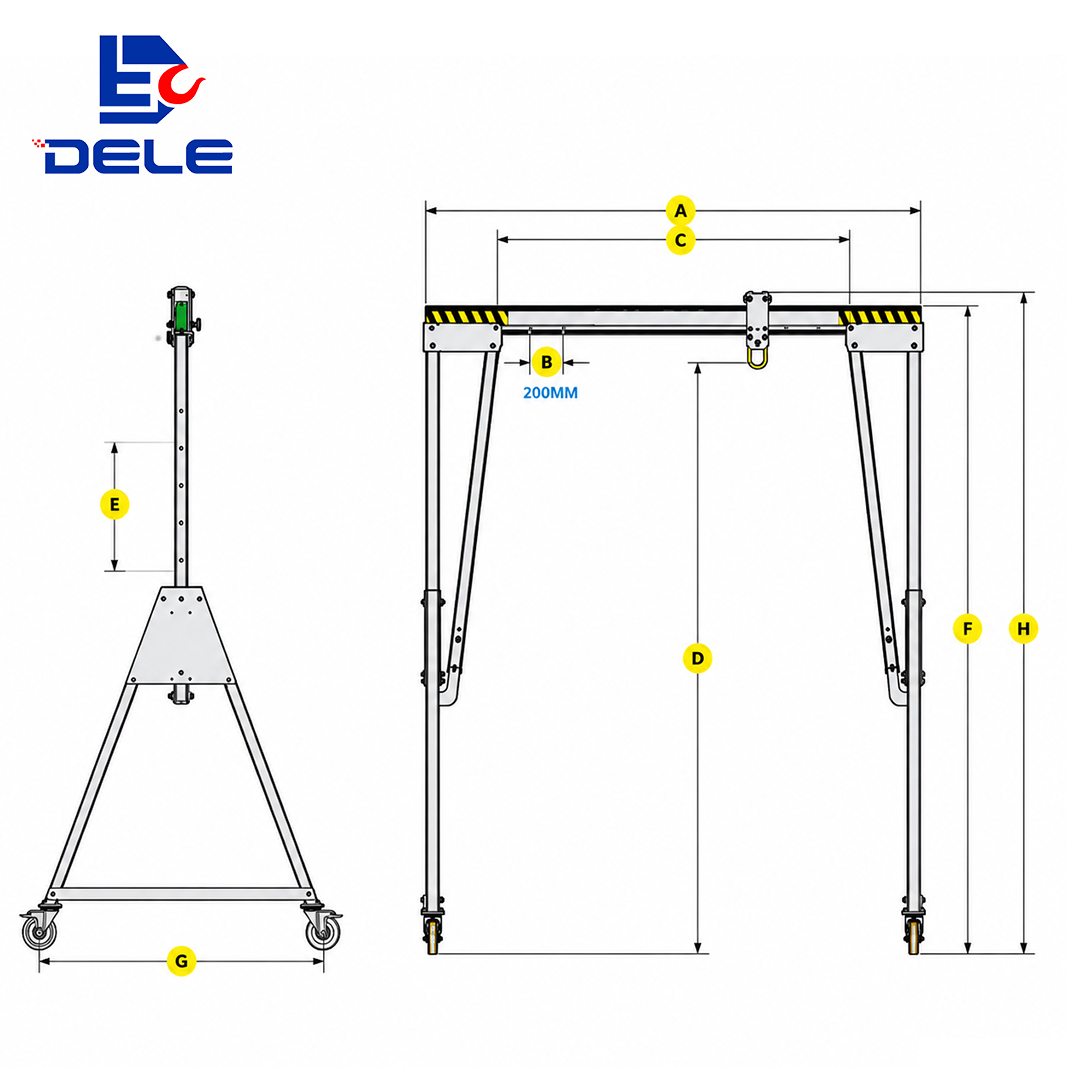

A：Beam length
B：Beam adjustment
C:Clear operating span
D:Height to lifting eye
E:Height increment
F:Height to top of beam
G:Width
H:Height to top of roller

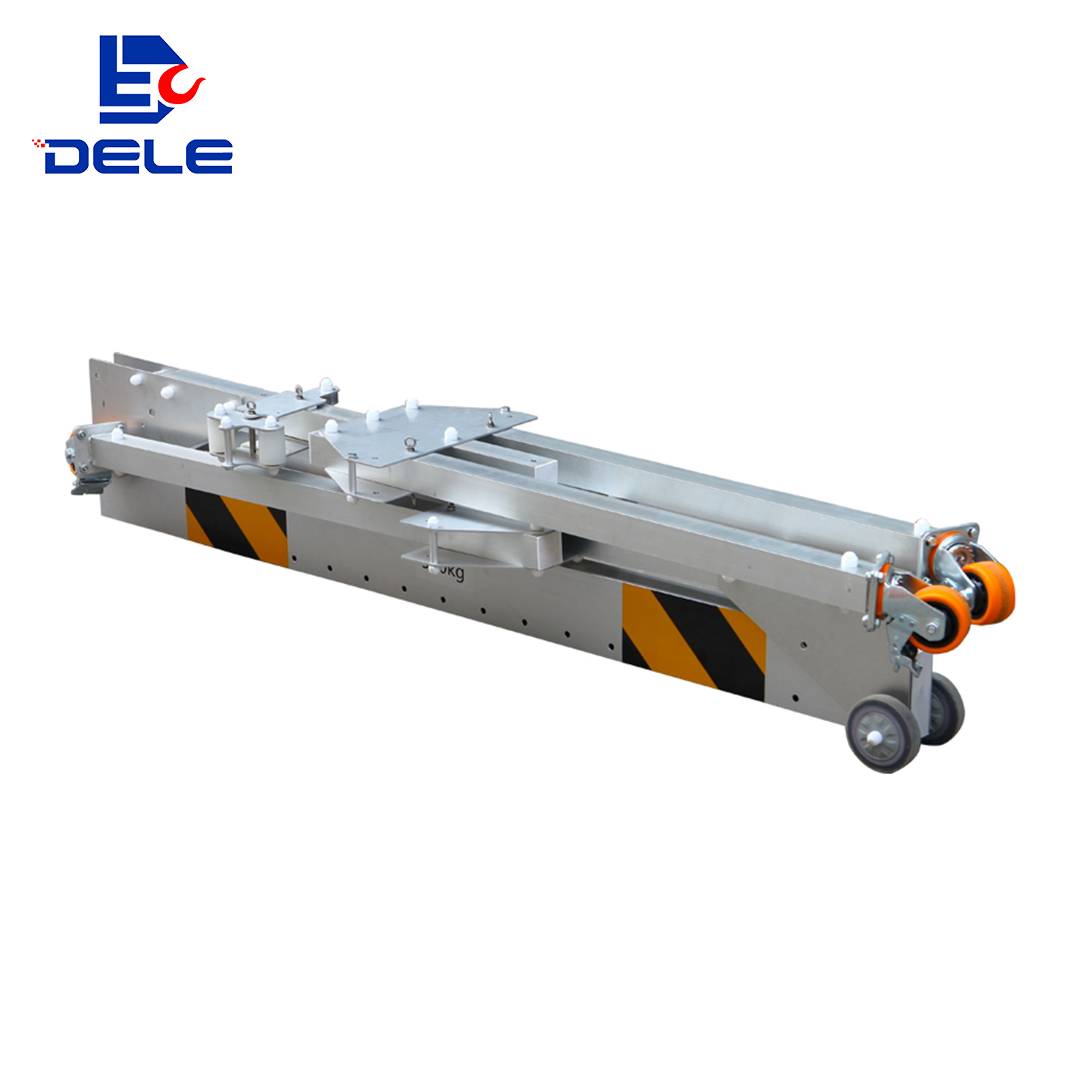

J:Folding dimensions

PORTBLE GANTRY 2000-5000

	Frame size	D Max Height to lifting eye	E Height increment	D Min Height to lifting eye	F Height to top of beam	H Max Height to top of roller	H Min Height to top of roller	G Width	A-Frame weight (kg)（approx)	Trolley roller size	Castor Diam
2000	DLV20S	2279	5*150	1529	2600	2681	1931	1212	32	82	150
	DLV20M	2901	5*150	2151	3222	3303	2553	1429	37	82	150
	DLV20I	3266	5*200	2266	3587	3668	2668	1726	45	82	200
	DLV20T	3981	6*200	2781	4301	4383	3183	1993	50	82	200
	DLV20TC4	4527	6*200	3327	4847	4930	3730	2234	77	82	200
	DLV20TC3	5027	6*200	3827	5347	5430	4230	2557	82	82	200
	DLV20TC2	5527	8*200	3927	5848	5930	4330	2733	87	82	200
	DLV20TC1	5829	9*200	4029	6149	6231	4431	2733	90	82	200
3000	DLV30S	2329	5*150	1579	2698	2779	2029	1212	48	82	200
	DLV30M	2951	5*150	2201	3320	3401	2651	1429	53	82	200
	DV30I	3316	5*200	2316	3685	3766	2766	1726	66	82	200
	DLV30T	4031	6*200	2831	4399	4481	3281	1993	72	82	200
	DLV30TC4	4527	6*200	3327	4847	4930	3730	2234	77	82	200
	DIV30TC3	5027	6*200	3827	5347	5430	4230	2557	82	82	200
	DLV30TC2	5527	8*200	3927	5848	5930	4330	2733	87	82	200
5000	DLV50I	3181	5*200	2181	3592	3717	2717	1736	88*	125	200
	DLV5OT	4049	6*200	2849	4487	4612	3412	2059	99*	125	200
	DLV50TC4	4500	6*200	3300	4938	5062	3862	2234	90	125	200
	DLV50TC3	5000	6*200	3800	5438	5562	4362	2557	95	125	200

S & M versions also available as custom systems | WLL 5000kg dimensions systems are shown using the deeper 'Dfi section beam.
Each portable gantry system comprises:
●2 x A-Frames (or custom alternatives)
●Trolley - fully encapsulated for safety
●Beam lengths up to 9000mm (WLL dependent)
With standard beam length: ●2500mm ,3000mm,3920mm,4570mm,5500mm,6000mm,8400mm（D section Max),9000mm(NB Dim C = clear operating span = A -920mm)
