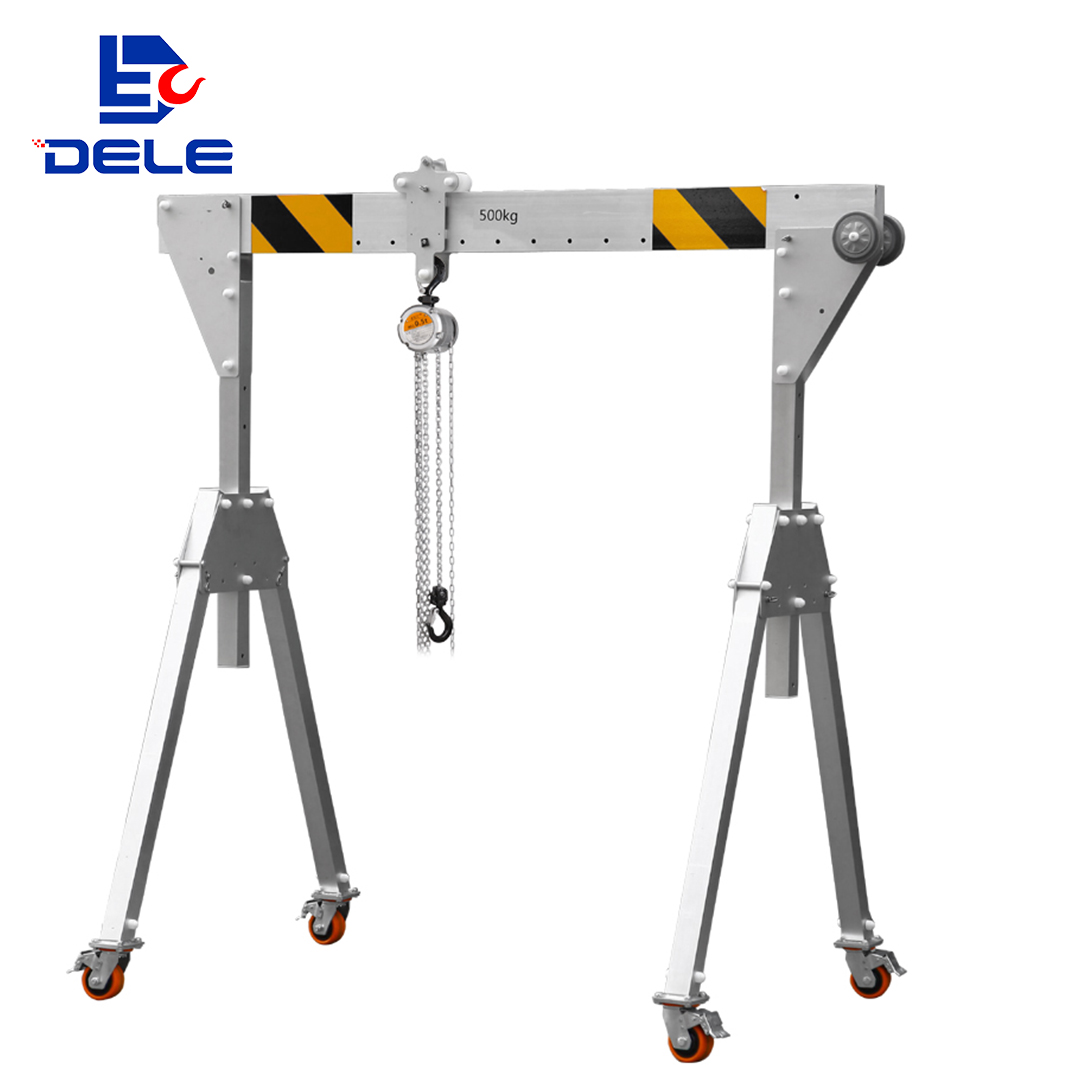

DLV PORTABLE GANTRY SYSTEM

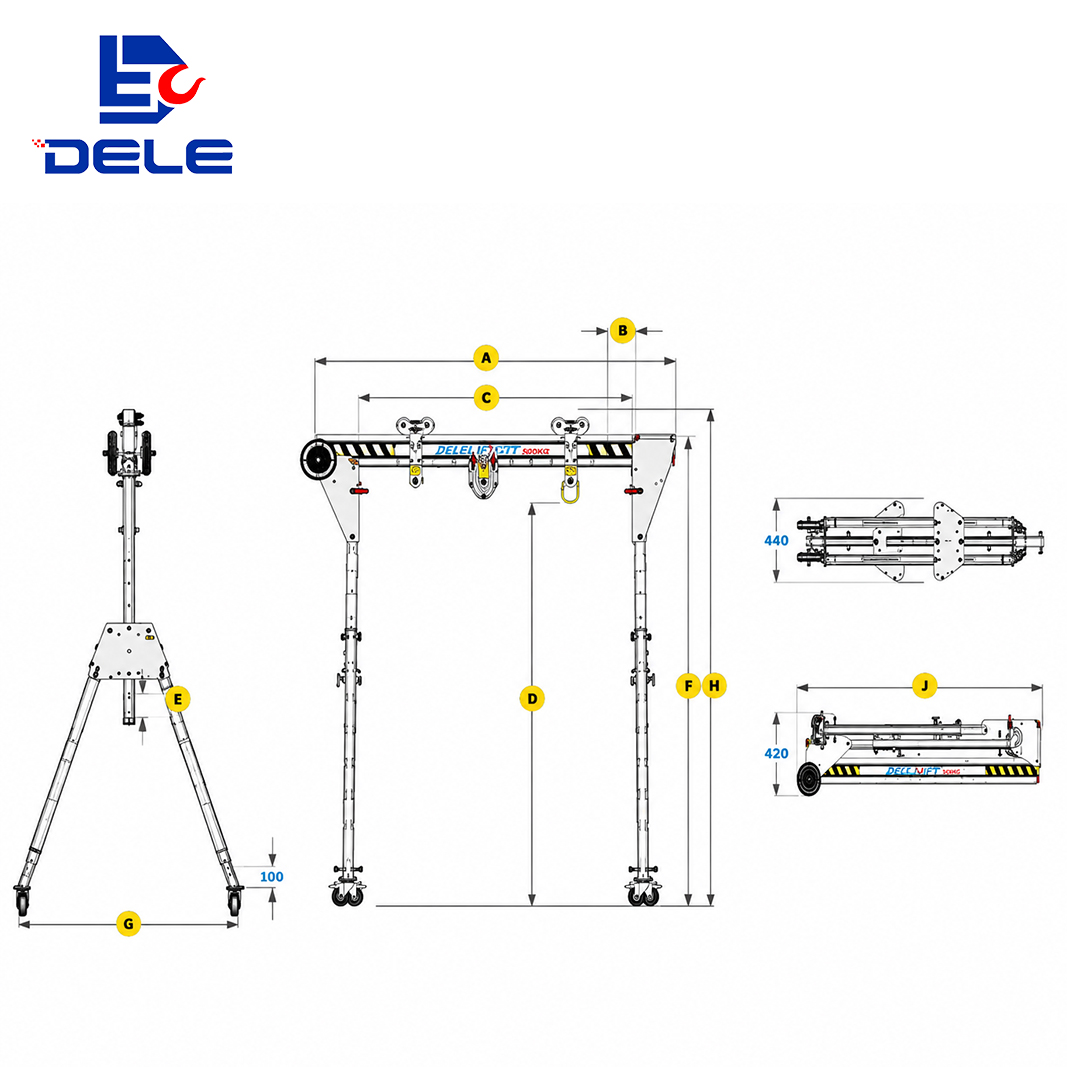

A：Beam length
B：Beam adjustment
C:Clear operating span
D:Height to lifting eye
E:Height increment
F:Height to top of beam
G:Width
H:Height to top of roller

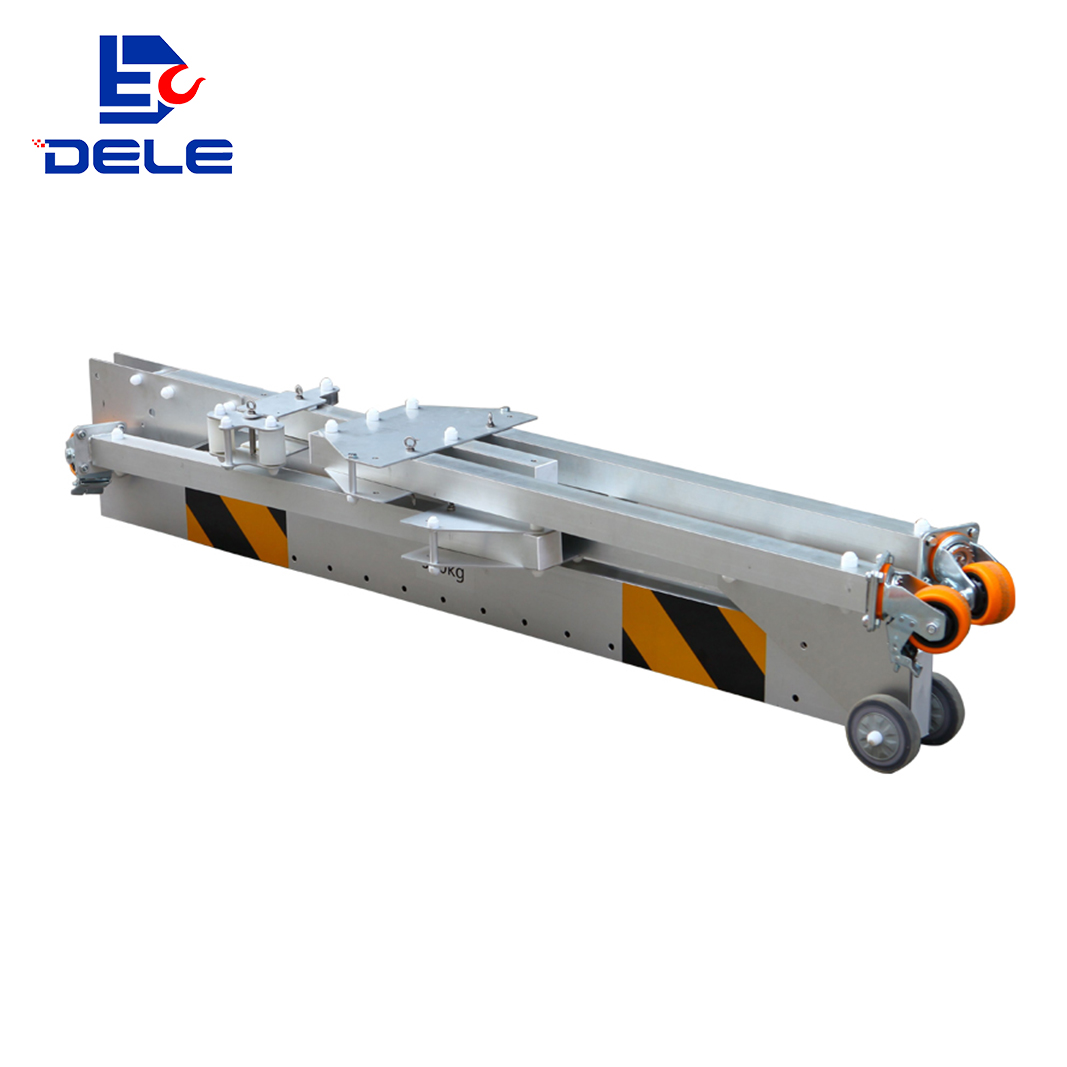

J:Folding dimensions

PORTABLE GANTRY 250-500

Dimensions (mm)															WLL
Model	A Beem Length	B	C Min	C Max	D Min	D Max	E	F Min	F Max	G	H Min	H Max	J	Goods Capacity (kg)	Fall Arrest Capacity No of Person(s）	Personnel Positioning (kg)	Unit Weight(kg)
DLV20	2000	2*200	1100	1500	1672	2172	5*100	1876	2376	1158	2001	2501	2080	500	3	250	33
DLV23	2300	3*200	1200	1800	1672	2172	5*100	1876	2376	1158	2001	2501	2380	400	2	200	35
DLV40	4000	4*200	2700	3500	1672	2172	5*100	1876	2376	1158	2001	2501	4080	250	1	125	40
DLVB20	2000	2*200	1100	1500	1667	2267	6*100	1880	2480	1215	2005	2605	2080	400	2	200	35
DLVB23	2300	3*200	1200	1800	1667	2267	6*100	1880	2480	1215	2005	2605	2380	400	2	200	36
DLVB40	4000	4*200	2700	3500	1667	2267	6*100	1880	2480	1215	2005	2605	4080	250	1	125	41
DLVC20	2000	2*200	1100	1500	2140	3040	9*100	2354	3254	1586	2479	3379	2645	250	1	125	39
DLVC23	2300	3*200	1200	1800	2140	3040	9*100	2354	3254	1586	2479	3379	2380	250	1	125	40
DLVC40	4000	4*200	2700	3500	2140	3040	9*100	2354	3254	1586	2479	3379	4080	250	1	125	45

PORTABLE GANTRY 500-1000

Dimensions (mm)															WLL
Model	A Beem Length	B	C Min	C Max	D Min	D Max	E	F Min	F Max	G	H Min	H Max	J	Goods Capacity (kg)	Fall Arrest Capacity No of Person(s）	Personnel Positioning (kg)	Unit Weight(kg)
DL1V20	2000	2*200	1102	1502	1549	2049	5*100	1822	2322	1242	1904	2404	2077	1000	3	500	45
DL1V30	3000	3*200	1902	2502	1549	2049	5*100	1822	2322	1242	1904	2404	3077	1000	3	500	53
DL1V40	4000	3*200	1902	3502	1549	2049	5*100	1822	2322	1242	1904	2404	4077	50	3	500	58
DLV1B20	2000	2*200	1102	1502	1859	2559	7*100	2061	2761	1440	2143	2843	2200	1000	3	500	49
DLV1B23	3000	3*200	1902	2502	1859	2559	7*100	2061	2761	1440	2143	2843	3077	1000	3	500	54
DLV1B40	4000	3*200	1902	3502	1859	2559	7*100	2061	2761	1440	2143	2843	4077	500	3	500	59
DLV1C20	2000	2*200	598	1050	2099	2999	9*100	2301	3201	1639	2383	3283	2830	1000	3	500	53
DLV1C23	3000	3*200	1417	2017	2099	2999	9*100	2301	3201	1639	2383	3283	3077	1000	3	500	58
DLV1C40	4000	3*200	2385	2985	2099	2999	9*100	2301	3201	1639	2383	3283	4077	500	3	500	62
