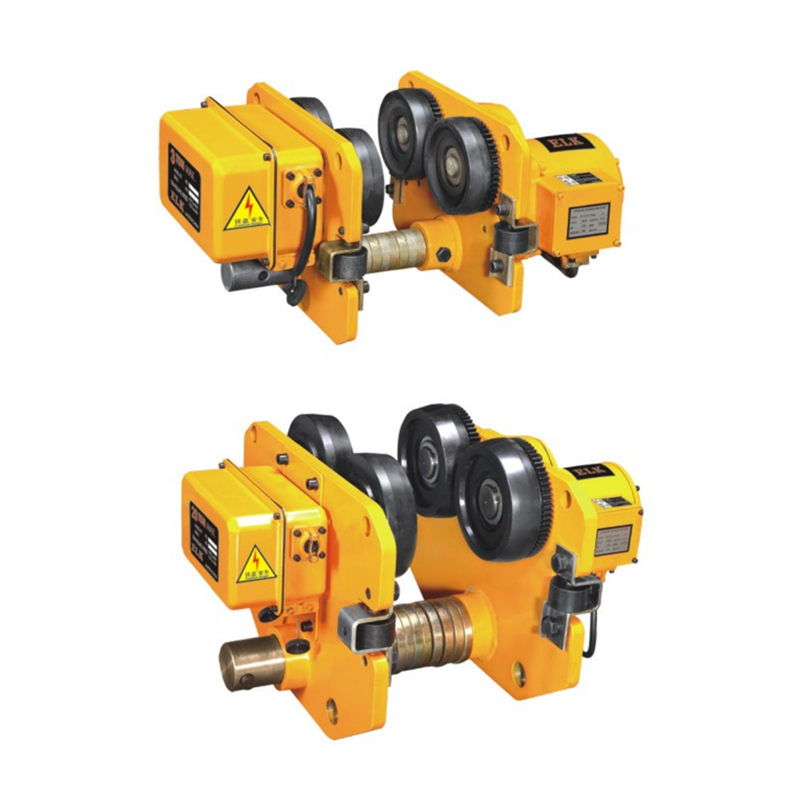

DLET ELECTRIC TROLLEY
●DELELIFT trolley enabling exact positioning or easy traversingof large loads incorporating manual hoists.
●Equipped with asmooth and effortless lifting mechanism.With its easy-to-usecontrols,you can effortlessly adjust the lifting height,allowingfor precise positioning of your load.
●This ensures maximumsafety and efficiency in your lifting operations

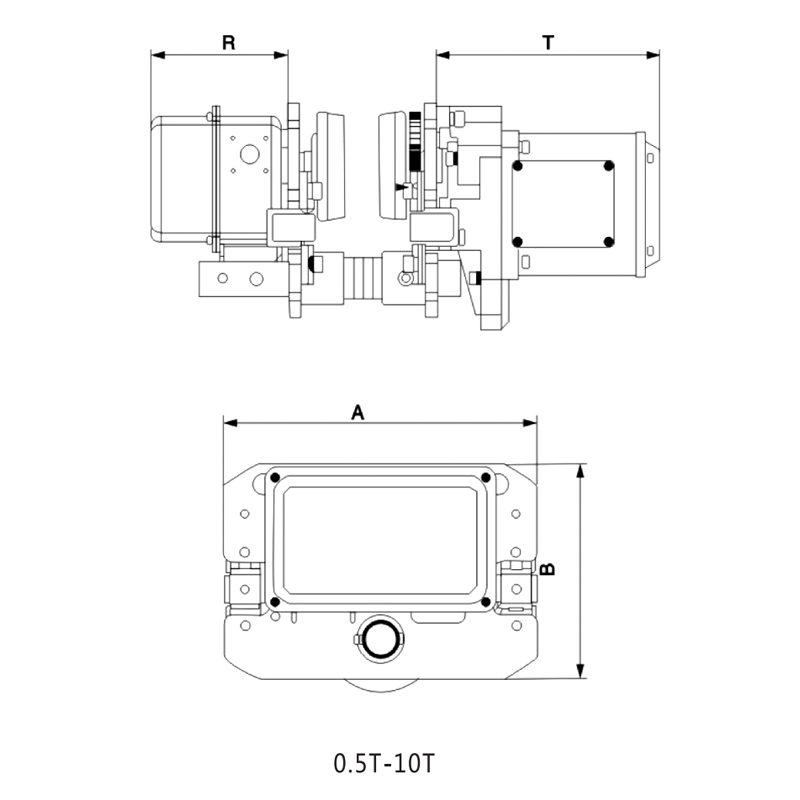

| Model | Capacity (t) | Unit(mm) | Speed 50Hz (m/min) | Motor(kw) | Minimun radius of turn (m) | l-Beam(mm) | |||
| A | B | R | T | ||||||
| DLET-0.5 | 0.5 | 315 | 212 | 142 | 231 | 11&21 | 0.4 | 0.8 | 58-153 |
| DLET-01 | 1 | 315 | 212 | 142 | 231 | 11&21 | 0.4 | 0.8 | 58-153 |
| DLET-02 | 2 | 325 | 220 | 142 | 231 | 11&21 | 0.4 | 0.8 | 82-178 |
| DLET-03 | 3 | 340 | 250 | 142 | 231 | 11&21 | 0.75 | 1.0 | 100-178 |
| DLET-05 | 5 | 400 | 291 | 142 | 231 | 11&21 | 0.75 | 1.8 | 100-178 |
| DLET-7.5 | 7.5 | 400 | 291 | 142 | 231 | 11&21 | 0.75 | 1.8 | 100-178 |
| DLET-10 | 10 | 500 | 370 | 142 | 231 | 11&21 | 0.75 | 2.5 | 150-220 |
