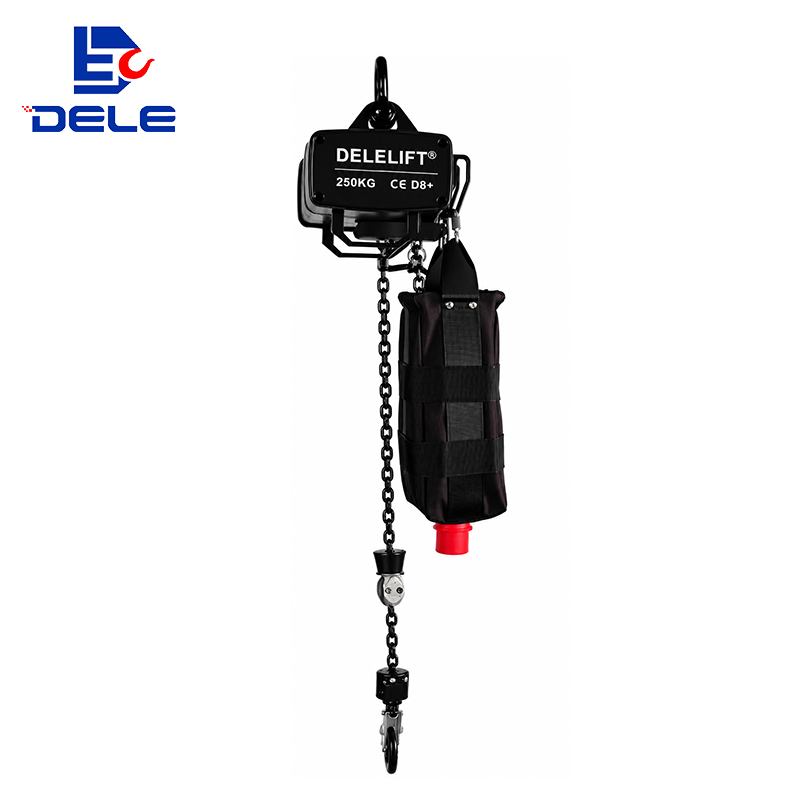

DSNN-S1 250 KG STAGE HOIST


250kg Electric Stage Hoist
●Manufactured in accordance with D8Plus Standard
Based on the load conditions and in combination with the DELELIFT chain traction control system, large-scale projects can be implemented in accordance with the corresponding safety requirements.

●Strictly following the D8Plus standard configuration, a dual independent braking system is equipped, including the service brake and the safety brake.Both have brakes using a DC braking system, and their working principle is based on the static current principle. When the voltage is interrupted, the brakes will automatically initiate the braking action, thus ensuring that the load can be reliably fixed under any working conditions.

●The chain drive system is equipped with an overload anti - slip clutch, which can effectively protect the drive device.

●The DSNN-S1 D8 Pro/ D8+Pro can be provided with an electronic limit function. This function is a unique safety device of DELELIFT. When it reaches the upper or lower limit and touches the limit contact, it can stop in a timely and effective manner to prevent accidents.



ModelDSNN-S1 D8DSNN-S1 D8+DSNN-S1 D8 PRODSNN-S1 D8+ PRO
External dimensions370*185*115370*185*115370*185*115370*185*115
Rated load250KG250KG250KG250KG
Lifting speed4m/min4m/min4m/min4m/min
Safety factor8888
Dead-weight14KG14KG15KG15KG
IP CodeIP66IP66IP66IP66
Rated voltage220V-440V/3P220V-440V/3P220V-440V/3P220V-440V/3P
Rated frequency50Hz/60Hz50Hz/60Hz50Hz/60Hz50Hz/60Hz
Power of motor0.2KW0.2KW0.2KW0.2KW
Work levelM4M4M4M4
Electromagnetic brakeSingle brakeDouble brakesSingle brakeDouble brakes
Travel switchnotnot●●
Overload clutch
protection device		●●●●
ModelABCDEFGK
250KG110 175 174 196 115 27 40 40
