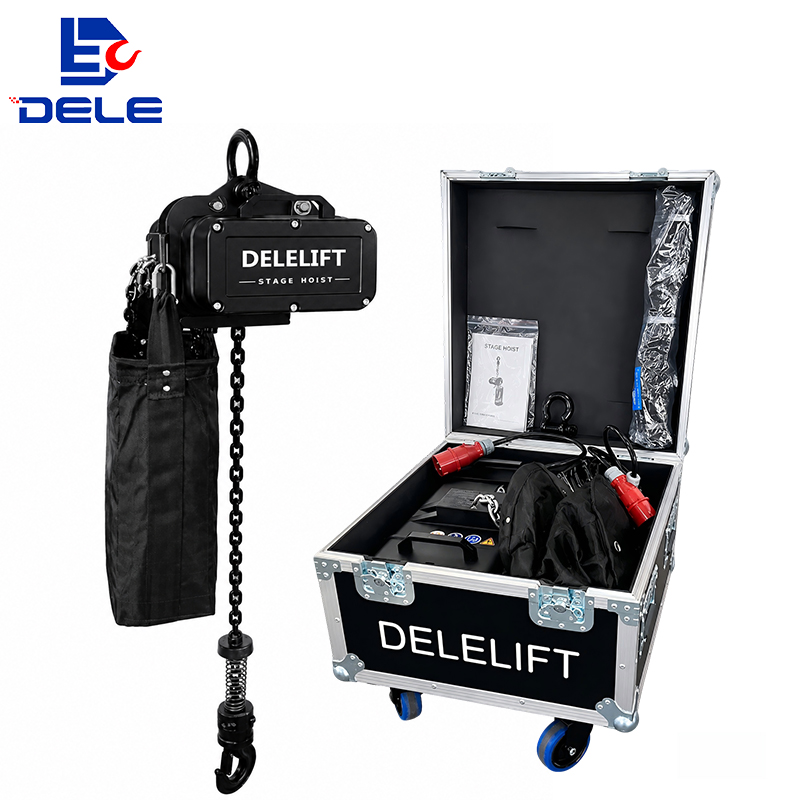

DSH-T3-H STAGE HOIST
●Individual mechanical brake and electromagnetic brake,ensure stage hoist safe during working.
●Overload protection,shut down at 120%SWL.( for option)
●FEC DAT load chain according to EN818-7 standards.Minibreak testing meet 8 times safety factor.
●High Strength Aluminum,Light weight,high strength,corrosion resistance.Reach tolP 66.
●Alloy Steel Forging Hook, lt can be rotated 360° and meet10 times safety factor, has protecting cover.
●5-tooth Load Sprocket,Finish machining by CNC machiningcenter.Suspension type design,convenient maintenance.
●Up and down limit switch.
●Folding handle design, easy for transportation.
Feature
| Model | DSH-T3-H-0.5 | DSH-T3-H-1 | DSH-T3-H-2 | DSH-T3-H-2.5 |
| Safety factor | 8:1 | 8:1 | 8:1 | 8:1 |
| Brake | 2 | 2 | 2 | 2 |
| Lifting speed | 4m/min | 4m/min | 4m/min | 4m/min |
| Noise | ≤65dB | ≤65dB | ≤72dB | ≤72dB |
| Chain | EN818-7φ7.1×21 mm | EN818-7φ7.1×21 mm | EN818-7φ10×30 mm | EN818-7φ11.2×34 mm |
| Limit switch | for option | for option | for option | for option |
| Overload protection | for option | for option | for option | for option |
| Load monitoring | for option | for option | for option | for option |
| Emergency Stopper | for option | for option | for option | for option |
| Hoist size | 426×262×217 mm | 426×262×217mm | 519×352×325mm | 519×352×325mm |
| Flight case | 560×560×530 mm | 560×560x530 mm |
Parameter
| Model | Capacity (t) | Test load (t) | Protection level | Classification FEM/SO | Lifting speed (m/min) | Motor (KW) | Load chain (mm) | Load chain falls | Net weight (KG) | Chain/M (kg) |
| DSH-T3-H-0.5 | 0.5 | 0.625 | IP 66 | 1AM/M4 | 4 | 0.8 | φ7.1*21 | 1 | 30 | 1.07 |
| DSH-T3-H-1 | 1 | 1.25 | IP66 | 1AM/M4 | 4 | 1.0 | φ7.1*21 | 1 | 30.5 | 1.07 |
| DSH-T3-H-2 | 2 | 2.5 | IP66 | 1AM/M4 | 4 | 2.0 | φ10*30 | 1 | 71 | 2.15 |
| DSH-T3-H-2.5 | 2.5 | 3.2 | IP 66 | 1AM/M4 | 4 | 2.0 | Φ11.2*34 | 1 | 73 | 2.65 |
