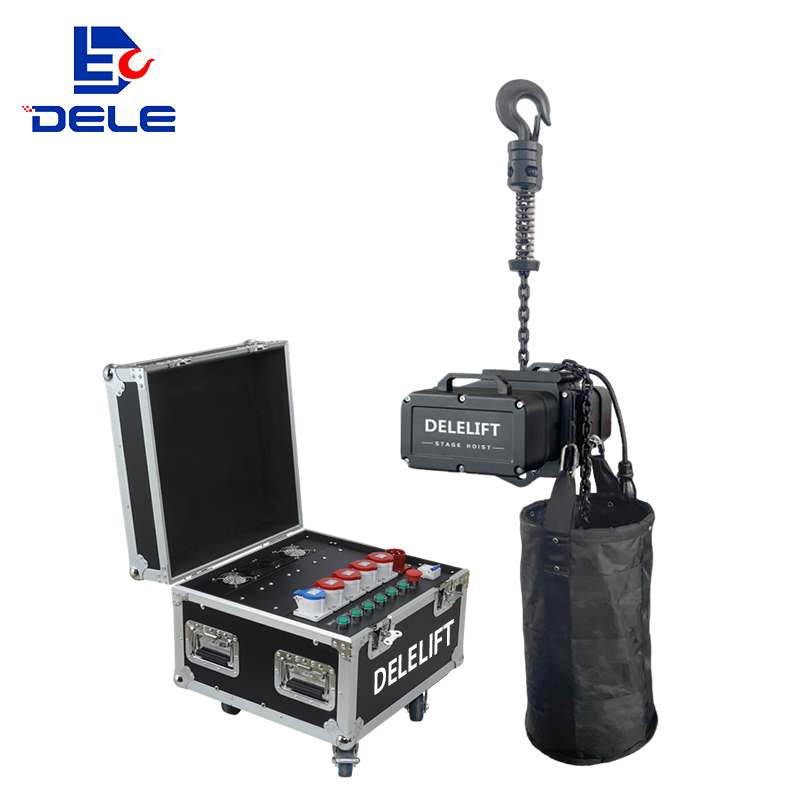

DSH-T1 STAGE HOIST
●Single brake system, electromagnetic brake.
●Overload protection, shut down at 120% SWL.(for option)
●FEC DAT load chain according to EN818-7 standards.Minibreak testing meet 8times safety factor.
●High Strength Aluminum,Light weight, high strength,corrosion resistance. Reach to lP 66.
●Alloy Steel Forging Hook, lt can be rotated 360° and meet10 times safety factor, has protecting cover.
●5-tooth Load Sprocket,Finish machining by CNC machining
●center. Suspension type design,convenient maintenance.
●Up and down limit switch.(for option)
●Folding handle design, easy for transportation.
Feature
| Model | DSH-T1-0.5 | DSH-T1-1 |
| Safety factor | 6:1 | 6:1 |
| Brake | 1 | 1 |
| Lifting speed | 4m/min | 4m/min |
| Noise | ≤65dB | ≤65dB |
| Chain | EN818-7 φ7.1×21 mm | EN818-7φ7.1×21 mm |

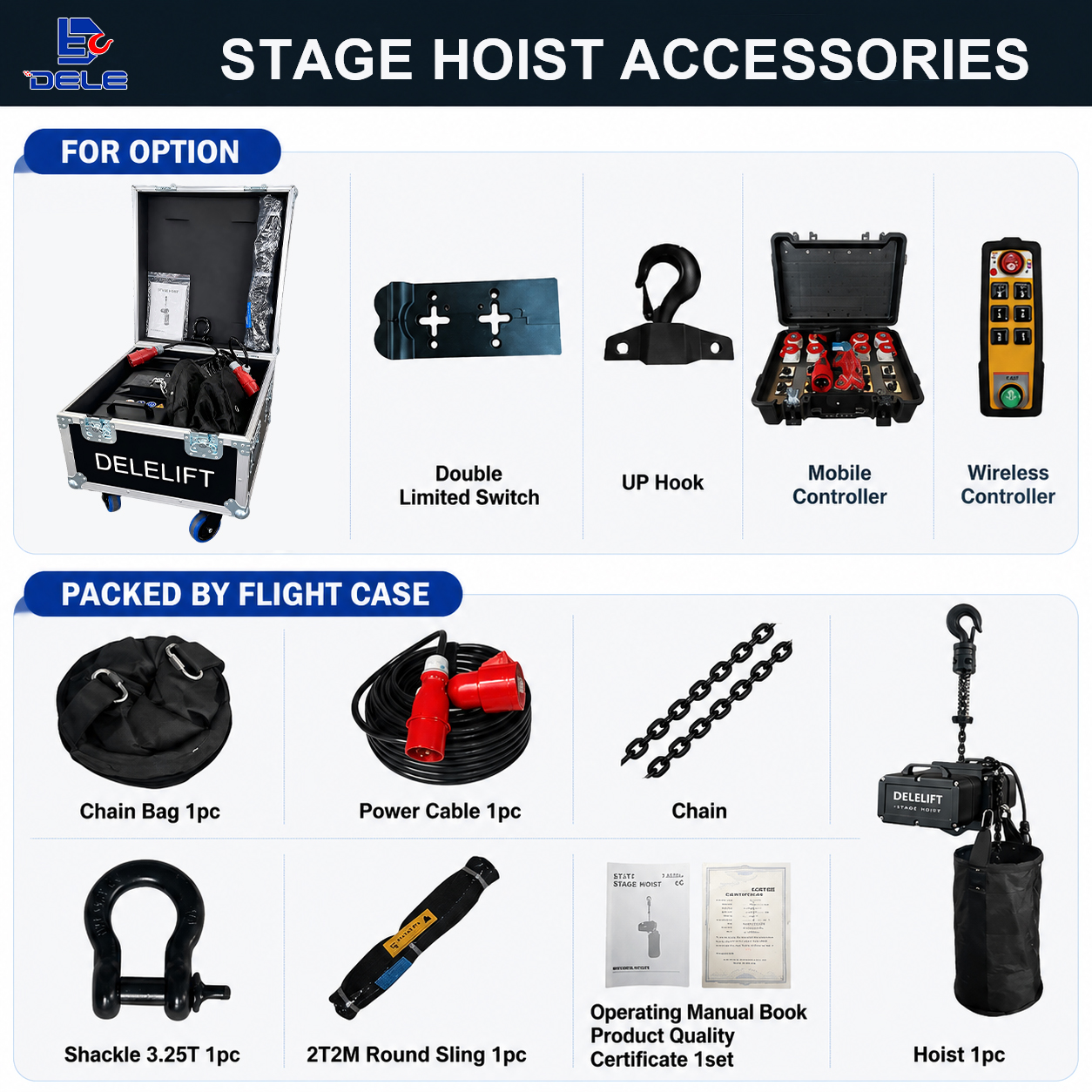

| Limit switch | for option | for option |
| Overload protection | for option | for option |
| Load monitoring | for option | for option |
| Emergency Stopper | for option | for option |
| Hoist size | 368×262×217 mm | 368×262×217 mm |
| Flight case | 560×560×530 mm | 560×560×530 mm |
Parameter
| Model | Capacity (t) | Test load (t) | Protection level | Classification FEM/SO | Lifting speed (m/min) | Motor (KW) | Load chain (mm) | Load chain falls | Net weight (KG) | Chain/M (kg) |
| DSH-T1-0.5 | 0.5 | 0.625 | IP66 | 1AM/M4 | 4 | 1.00 | φ7.1*21 | 1 | 28 | 1.07 |
| DSH-T1-1 | 1 | 1.25 | IP66 | 1AM/M4 | 4 | 1.00 | φ7.1*21 | 1 | 29 | 1.07 |
