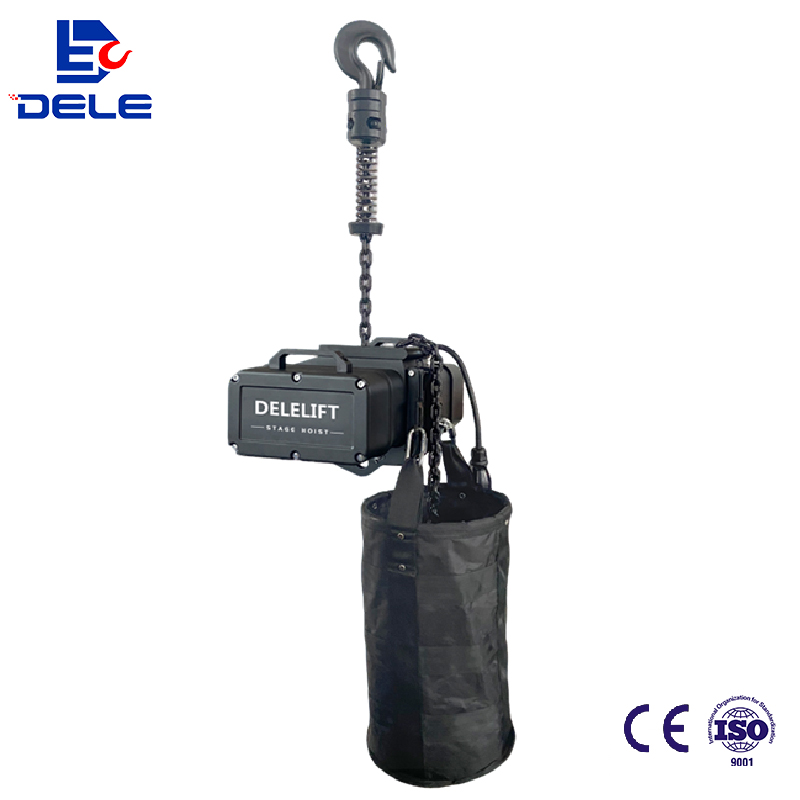

DSH-T2 STAGE HOIST
●Individual mechanical brake and electromagnetic brake,ensure stage hoist safe during working.
●Folding handle design, easy for transportation.
●High Strength Aluminum,Light weight, high strength,corrosion resistance.Reach tolP66.
●Hard chrome-manganese precise Helical gears.Gear caseoil lubed for-life with mute.
●Alloy Steel Forging Hook, lt can be rotated 360° and meet10 times safety factor, has protecting cover.
●5-tooth Load Sprocket, Finish machining by CNC machiningcenter.Suspension type design, convenient maintenance.
●FEC DAT load chain according to EN818-7 standards. Minibreak testing meet 10 times safety factor.
●SlL3 Emergency Stopper
Feature
| Model | DSH-T2-0.5 | DSH-T2-1 |
| Safety factor | 10:1 | 10:1 |
| Brake | 2 | 2 |
| Lifting speed | 1-26 m/min | 1-16 m/min |
| Functional safety certification | SIL3 | SIL3 |
| Noise | ≤65dB | ≤65dB |
| Chain | EN818-7φ6.3×19 mm | EN818-7 Φ7.1×21 mm |
| Limit switch | 2 | 2 |
| Overload protection | yes | yes |
| Load monitoring | yes | yes |
| Emergency Stopper | yes | yes |
| Hoist size | 536×262×217 mm | 536×262×217 mm |
| Flight case | 560×560×530 mm | 560×560×530 mm |
Parameter
| Model | Capacity (t) | Test load (t) | Protection level | Classification FEM/SO | Lifting speed (m/min) | Motor (KW) | Load chain (mm) | Load chain falls | Net weight (KG) | Chain/M (kg) |
| DSH-T2-0.5 | 0.5 | 0.625 | IP 66 | 1AM/M4 | 1-26 | 2.0 | φ6.3*19 | 1 | 35 | 0.86 |
| DSH-T2-1 | 1 | 1.25 | IP66 | 1AM/M4 | 1-16 | 2.0 | φ7.1*21 | 1 | 35 | 1.07 |
