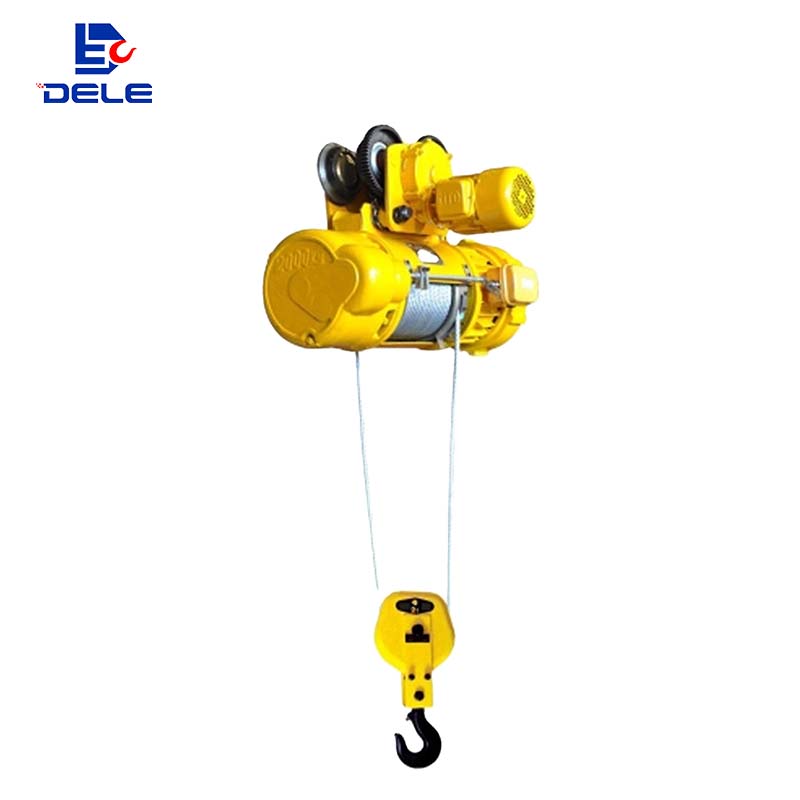

CD1 ELECTRIC HOIST
●The electric wire rope hoist model CD1 and MD1 have the features of compact,light,small-sized shape and smooth operation.it can be used not only in the overhead rails,but also in conjunction with many types of electric or maual creans such as the sigle-girder crane,the double-girder crane the cantilever crane and the gantry crane.the electric hoist model Md1 with double lifting speeds should be used in cases where the hoist model CD1 with sigle speed cannot meet the requirements for fine adjustments during precision operations.
●Electric cable hoist tonnage is 0.5T/1T/2T/3T/5T/10T/16T/20T, its standard wire rope length,6M/9M/12M/18M/24M/30M. It is also divided into CD1 (single speed type) and MD1 (double speed type).The running speed of the electric cable hoists: 0.5T-5T 10T 16T-20T.
●Electric wire rope hoist speed:0.5-5 10T 16-20T.
●Single speed:8M/MIN, Speed:7M/MIN Speed:3.5M/MIN
● Double speed:8/0.8 M/MIN, Speed:7/0.7 M/MIN Speed:3.5/0.35 M/MIN.
●Wire rope electric hoist can be roughly divided into: 1.Reducer 2. Drum unit 3. Lifting motor 4.electric car 5. Tapered brake 6. adjusting nut 7.The guide rope 8.device coupling 9. Hook device 10. control button 11. The hollow 12.shaft housing 13. Gear shaft seal ring 14.gear 15. Gear shaft 16. The inadequacy needle 17.roller bearing, 18.ball bearing cover 19. Vent plug.
| Model | CD1-0.5T | CD1-1T | CD1-2T | CD1-3T | |||||||||||||||||||
| Lifting capacity | (t) | 0.5 | 1 | 2 | 3 | ||||||||||||||||||
| Lifting height | (m) | 6 | 9 | 12 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | 6 | 9 | 12 | 18 | 24 | 30 | |
| Lifting speed | (m/min) | 8 | 8 | 8 | 8 | ||||||||||||||||||
| Running speed | (m/min) | 20(30) | 20(30) | 20(30) | 20(30) | ||||||||||||||||||
| Rope diameter | (mm) | 5 | 7.7 | 11 | 13 | ||||||||||||||||||
| Type of I-Beam（GB706-88) | 16-28b | 16-28b | 20a-32c | 20a-32c | |||||||||||||||||||
| Lifting motor | (Kw) | 0.8 | 1.5 | 3 | 4.5 | ||||||||||||||||||
| Running motor | (Kw) | 0.2 | 0.2 | 0.4 | 0.4 | ||||||||||||||||||
| Voltage | (V) | 380(220-660) | |||||||||||||||||||||
| Frequency | (Hz) | 50/60Hz | |||||||||||||||||||||
| Phase | (ph) | 3 | |||||||||||||||||||||
| Protection Level | IP44 IP54 | ||||||||||||||||||||||
| Working Level | M3 | ||||||||||||||||||||||
| Institution level | 25% | 25% | 25% | 25% | |||||||||||||||||||
| Minimum Turning Radius | (m) | 1 | 1 | 1.8 | 1 | 1 | 1.2 | 1.8 | 2.5 | 3.2 | 1.2 | 1.2 | 1.5 | 2 | 2.8 | 3.5 | 1.2 | 1.2 | 1.5 | 2 | 2.8 | 3.5 | |
| Net Weight | kg | 121 | 125 | 130 | 137 | 145 | 172 | 188 | 204 | 220 | 221 | 232 | 285 | 309 | 332 | 353 | 281 | 297 | 354 | 390 | 420 | 451 | |
| Model | CD1-5T | CD110t | |||||||||||
| Lifting capacity | (t) | 5 | 10 | ||||||||||
| Lifting height | (m) | 6 | 9 | 12 | 18 | 24 | 30 | 9 | 12 | 18 | 24 | 30 | |
| Lifting speed | (m/min) | 8 | 7 | ||||||||||
| Running speed | (m/min) | 20(30) | 20(30) | ||||||||||
| Rope diameter | (mm) | 15.5 | 15.5 | ||||||||||
| Type of I-Beam（GB706-88) | 25a-45c | 32b-63c | |||||||||||
| Lifting motor | (Kw) | 7.5 | 13 | ||||||||||
| Running motor | (Kw) | 0.8 | 0.8×2 | ||||||||||
| Voltage | (V) | 380(220-660) | |||||||||||
| Frequency | (Hz) | 50/60Hz | |||||||||||
| Phase | (ph) | 3 | |||||||||||
| Protection Level | IP44 IP54 | ||||||||||||
| Working Level | M3 | ||||||||||||
| Institution level | 25% | 25% | |||||||||||
| Minimum Turning Radius | (m) | 1.5 | 1.5 | 1.5 | 2.5 | 3 | 4 | 1.5 | 1.5 | 2.5 | 3 | 4 | |
| Net Weight | kg | 473 | 495 | 597 | 646 | 686 | 726 | 1048 | 1098 | 1209 | 1310 | 1411 | |
