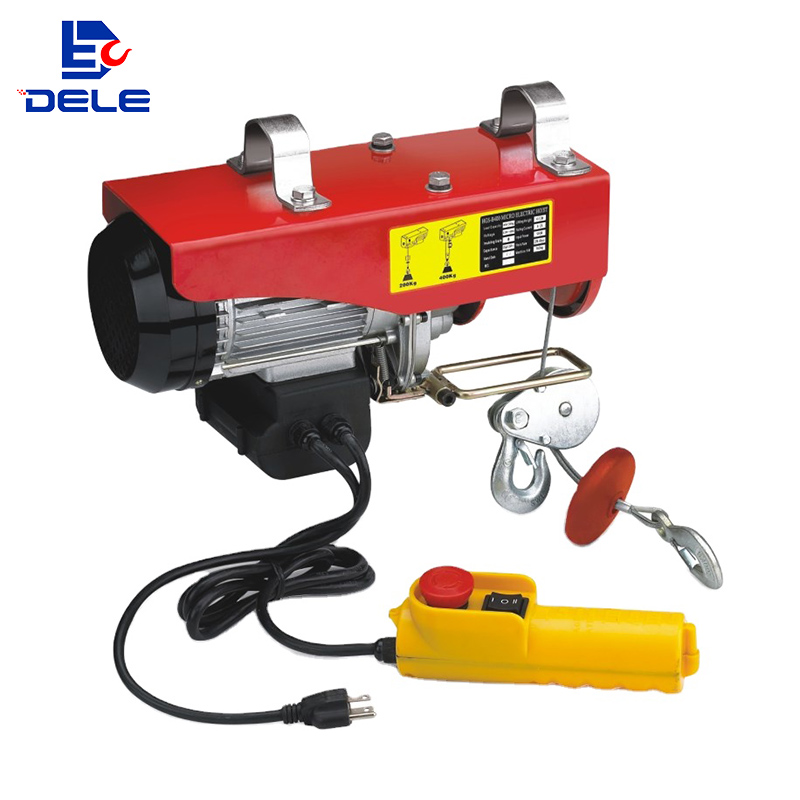

PA MINI ELECTRIC HOIST
FEATURES:
Adopt urgent stop switch and reinforced breaking switch with pos ition limit. Protection class up to IP54. With thermal protection device.
PAPA
| Model | Usage | Rated Volt (V) | Input Power (W) | Rated Capacity(KG) | Lifting Speed (m/min) | Lifting Height (m) | Qty/CTN (PCS) | Packing Size (MM) | G.W/N.W(kg) |
| AC 220/230/240 50/60Hz | 480 | 100 | 10 | 12 | 2 | 470*370*160 | 24/22 | ||
| Double-hook | 200 | 5 | 6 | ||||||
| PA-B250 PA250A | Single-hook | 540 | 125 | 10 | 12 | ||||
| Double-hook | 250 | 5 | 6 | ||||||
| PA-B300 PA300A | Single-hook | 600 | 150 | 10 | 12 | ||||
| Double-hook | 300 | 5 | 6 | ||||||
| PA-B400 PA400A | Single-hook | 950 | 200 | 10 | 12 | 520*450*170 | 36/34 | ||
| Double-hook | 400 | 5 | 6 | ||||||
| PA-B500 PA500A | Single-hook | 1020 | 250 | 10 | 12 | ||||
| Double-hook | 500 | 5 | 6 | ||||||
| PA-B600 PA600A | Single-hook | 1200 | 300 | 8 | 12 | ||||
| Double-hook | 600 | 4 | 6 | ||||||
| PA-B700 PA700A | Single-hook | 1250 | 350 | 8 | 12 | 38/36 | |||
| Double-hook | 700 | 4 | 6 | ||||||
| PA-B800 PA800A | Single-hook | 1300 | 400 | 8 | 12 | ||||
| Double-hook | 800 | 4 | 6 | ||||||
| PA-B990 PA990A | Single-hook | 1600 | 500 | 8 | 12 | 1 | 560*250*350 | 33/32 | |
| Double-hook | 990 | 4 | 6 | ||||||
| PA-B990B PA990B | Single-hook | 1800 | 600 | 8 | 12 | ||||
| Double-hook | 990 | 4 | 6 |
