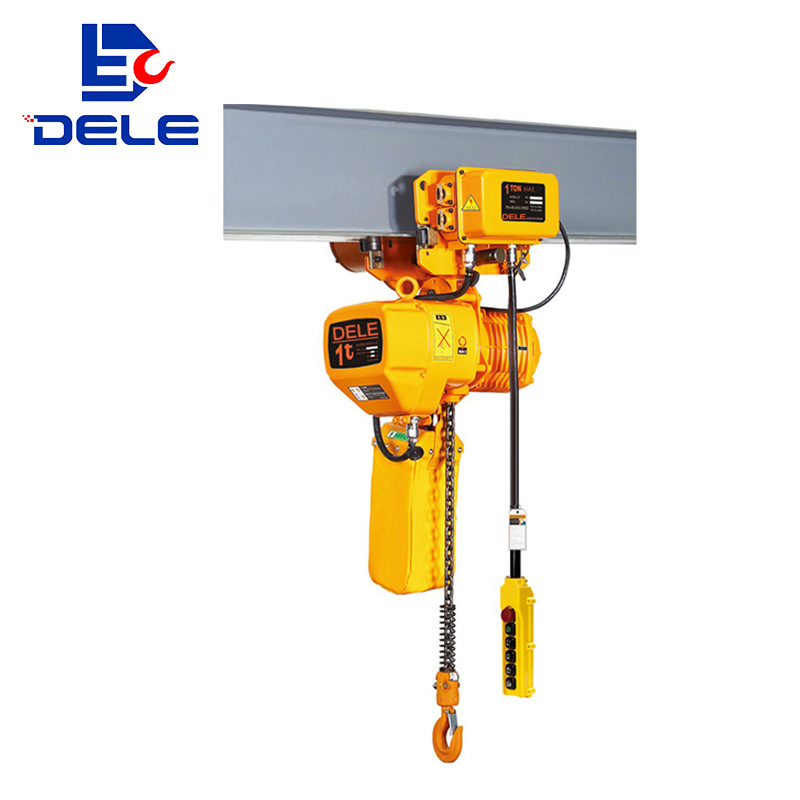

DLHDP ELECTRIC HOIST
500Kg~5Ton HOIST WITH HOOK
●Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat.
●lnverse phase sequence protecting device: lt is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
●Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
●24V&36V device: it is used to prohibit the emergencies from occurring incase of the leakage in the switch.Side magnetic braking device:This deviceshall realize the instant brake in case of the power dump.
●Chain bag: It shall be light, handsome and durable.
●Chain:The chain shali adopt the Japan FEC80 ultra heat-treatable steelalioy chain.
| Type | Capacity(Ton) | Standard Litting Height(m) | Lifting speed (m/min) | Lifting Motor | ||||
| Power (Kw) | Rotation Speed (t/min) | Phases | Voltage | Frequency(Hz/s) | ||||
| DLHDP-00501S | 0.5 | 3 | 6.8 | 0.75 | 1440 | 3 | 200-600 | 50 |
| DLHDP-0101S | 1 | 3 | 6.6 | 1.5 | 1440 | 3 | 200-600 | 50 |
| DLHDP-0102S | 1 | 3 | 3.4 | 0.75 | 1440 | 3 | 200-600 | 50 |
| DLHDP-01501S | 1.5 | 3 | 8.8 | 3.0 | 1440 | 3 | 200-600 | 50 |
| DLHDP-0201S | 2 | 3 | 6.6 | 3.0 | 1440 | 3 | 200-600 | 50 |
| DLHDP-0202S | 2 | 3 | 3.3 | 1.5 | 1440 | 3 | 200-600 | 50 |
| DLHDP-02501S | 2.5 | 3 | 5.4 | 3.0 | 1440 | 3 | 200-600 | 50 |
| DLHDP-0301S | 3 | 3 | 5.4 | 3.0 | 1440 | 3 | 200-600 | 50 |
| DLHDP-0302S | 3 | 3 | 4.4 | 3.0 | 1440 | 3 | 200-600 | 50 |
| DLHDP-0303S | 3 | 3 | 2.2 | 1.5 | 1440 | 3 | 200-600 | 50 |
| DLHDP-0502S | 5 | 3 | 2.7 | 3.0 | 1440 | 3 | 200-600 | 50 |
| Type | Capacity (Ton) | Standard Litting Height(m) | Lifting speed(m/min) | Lifting Motor | ||||
| Power(Kw) | Rotation Speed (t/min) | Phases | Voltage | Frequency(Hz/s) | ||||
| DLHDP-00501SD | 0.5 | 3 | 6.9&2.3 | 0.75&0.25 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-0101SD | 1 | 3 | 6.9&2.3 | 1.5&0.5 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-0102SD | 1 | 3 | 3.3&1.1 | 0.75&0.25 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-01501SD | 1.5 | 3 | 8.9&2.9 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-0201SD | 2 | 3 | 6.9&2.3 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-0202SD | 2 | 3 | 3.3&1.1 | 1.5&0.5 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-02501SD | 2.5 | 3 | 5.4&1.8 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-0301SD | 3 | 3 | 5.4&1.8 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-0302SD | 3 | 3 | 4.5&1.5 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-0303SD | 3 | 3 | 2.3&0.8 | 1.5&0.5 | 2880&960 | 3 | 200-600 | 50 |
| DLHDP-0502SD | 5 | 3 | 2.7&0.9 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 |
