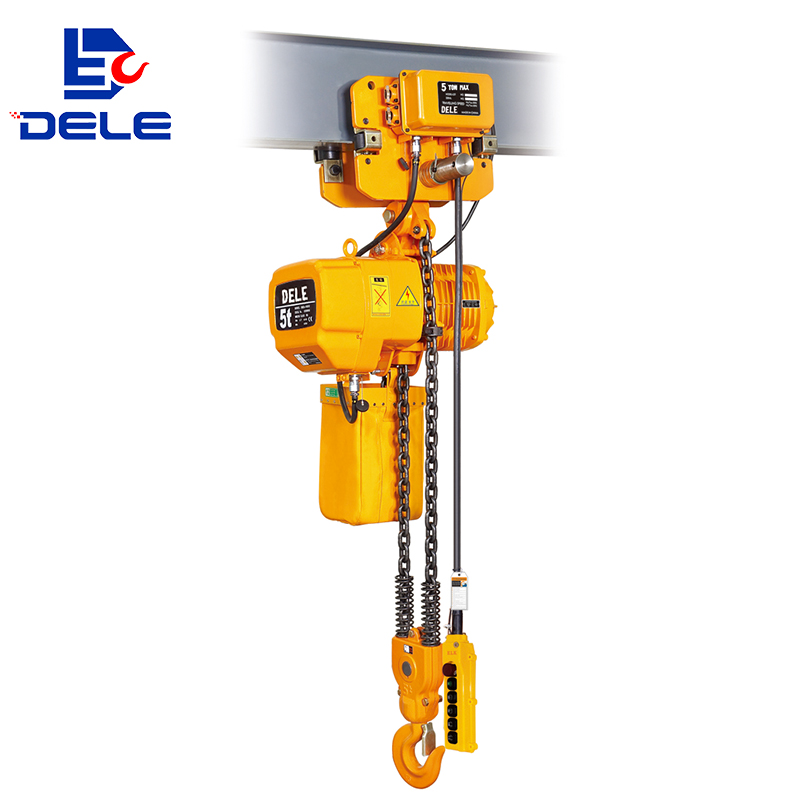

DLEDP ELECTRIC HOIST
500Kg~5Ton HOIST WITH ELECTRIC TROLLEY
Features :
●Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
●lnverse phase sequence protecting device: lt is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
●Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
●24V&36V device: it is used to prohibit the emergencies from occurring incase of the leakage in the switch.Side magnetic braking device:This deviceshall realize the instant brake in case of the power dump.
●Chain bag: It shall be light, handsome and durable.
●Chain:The chain shali adopt the Japan FEC80 ultra heat-treatable steelalioy chain.
| «Technical Parameters | Single speed | ||||||||||
| Type | Capacity (Ton) | Standard Litting Height (m) | Lifting speed (m/min) | Lifting Motor | Trolley Motor | ||||||
| Power(Kw) | Rotation Speed (t/min) | Phases | Voltage | Frequency (Hz/s) | Power(Kw) | Rotation Speed (t/min) | Trolley Speed (m/min) | ||||
| DLEDP-00501S | 0.5 | 3 | 6.8 | 0.75 | 1440 | 3 | 200-600 | 50 | 0.4 | 1440 | 11&21 |
| DLEDP-0101S | 1 | 3 | 6.6 | 1.5 | 1440 | 3 | 200-600 | 50 | 0.4 | 1440 | 11&21 |
| DLEDP-0102S | 1 | 3 | 3.4 | 0.75 | 1440 | 3 | 200-600 | 50 | 0.4 | 1440 | 11&21 |
| DLEDP-01501S | 1.5 | 3 | 8.8 | 3.0 | 1440 | 3 | 200-600 | 50 | 0.4 | 1440 | 11&21 |
| DLEDP-0201S | 2 | 3 | 6.6 | 3.0 | 1440 | 3 | 200-600 | 50 | 0.4 | 1440 | 11&21 |
| DLEDP-0202S | 2 | 3 | 3.3 | 1.5 | 1440 | 3 | 200-600 | 50 | 0.4 | 1440 | 11&21 |
| DLEDP-02501S | 2.5 | 3 | 5.4 | 3.0 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| DLEDP-0301S | 3 | 3 | 5.4 | 3.0 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| DLEDP-0302S | 3 | 3 | 4.4 | 3.0 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| DLEDP-0303S | 3 | 3 | 2.2 | 1.5 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| DLEDP-0502S | 5 | 3 | 2.7 | 3.0 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| Dual speeds | |||||||||||
| Type | Capacity (Ton) | Standard Litting Height(m) | Lifting speed (m/min) | Lifting Motor | Trolley Motor | ||||||
| Power (Kw) | Rotation Speed (t/min) | Phases | Voltage | Frequency (Hz/s) | Power (Kw) | Rotation Speed (t/min) | Trolley Speed (m/min) | ||||
| DLEDP-00501S | 0.5 | 3 | 6.9&2.3 | 0.75&0.25 | 2880&960 | 3 | 200-600 | 50 | 0.4&0.1 | 2880&720 | 5&20 |
| DLEDP-0101S | 1 | 3 | 6.9&2.3 | 1.5&0.5 | 2880&960 | 3 | 200-600 | 50 | 0.4&0.1 | 2880&720 | 5&20 |
| DLEDP-0102S | 1 | 3 | 3.3&1.1 | 0.75&0.25 | 2880&960 | 3 | 200-600 | 50 | 0.4&0.1 | 2880&720 | 5&20 |
| DLEDP-01501S | 1.5 | 3 | 8.9&2.9 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 | 0.4&0.1 | 2880&720 | 5&20 |
| DLEDP-0201S | 2 | 3 | 6.9&2.3 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 | 0.4&0.1 | 2880&720 | 5&20 |
| DLEDP-0202S | 2 | 3 | 3.3&1.1 | 1.5&0.5 | 2880&960 | 3 | 200-600 | 50 | 0.4&0.1 | 2880&720 | 5&20 |
| DLEDP-02501S | 2.5 | 3 | 5.4&1.8 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| DLEDP-0301S | 3 | 3 | 5.4&1.8 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| DLEDP-0302S | 3 | 3 | 4.5&1.5 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| DLEDP-0303S | 3 | 3 | 2.3&0.8 | 1.5&0.5 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| DLEDP-0502S | 5 | 3 | 2.7&0.9 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| Single speed | ||||||||||||||

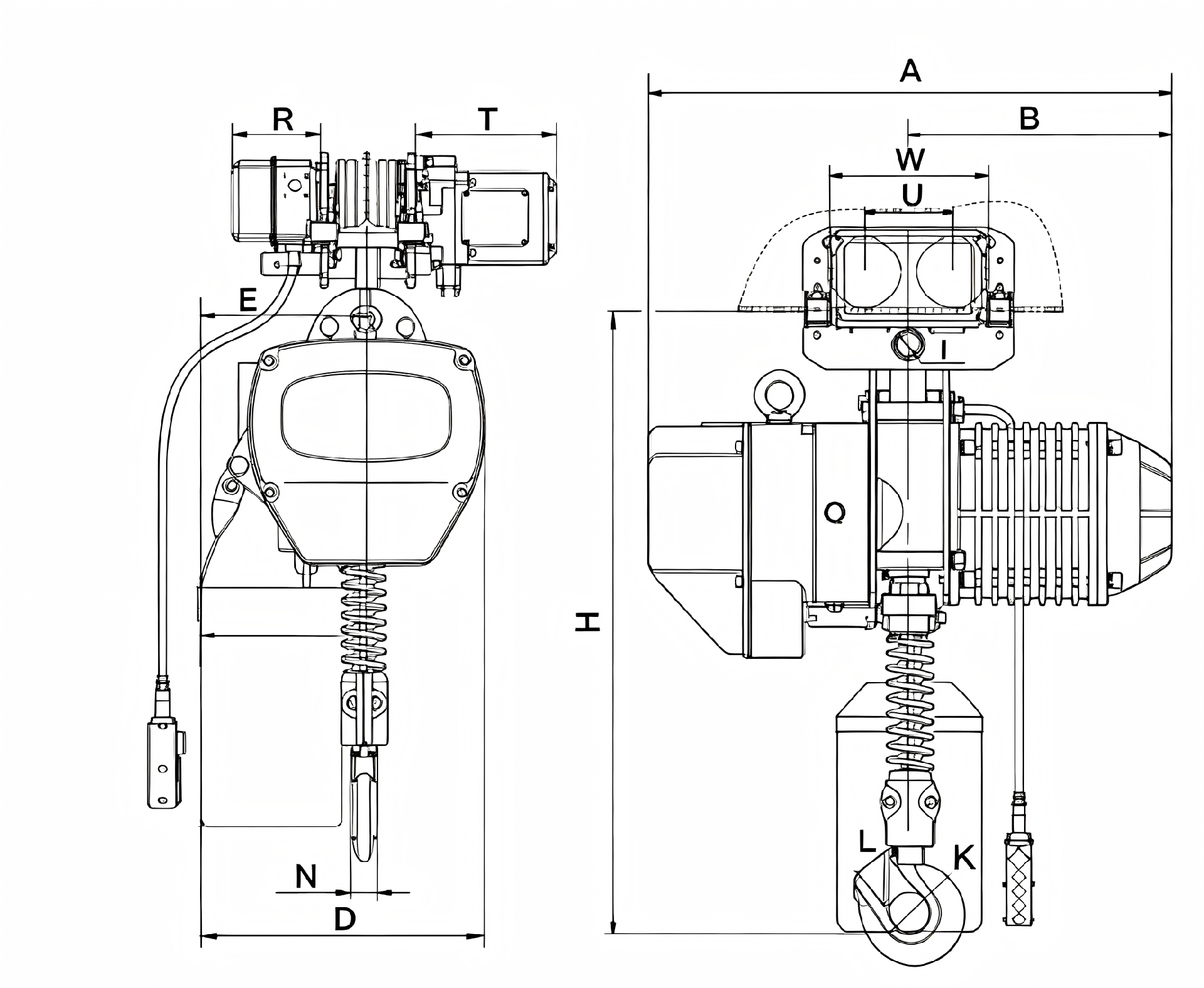

| l-Beam | Unit (mm) | |||||||||||||
| H | A | B | D | E | I | K | L | N | W | U | R | T | Chain | |
| 58-153 | 610 | 455 | 240 | 285 | 165 | Φ31 | Φ34 | 25 | 17 | 206 | 111 | 142 | 231 | Φ6.3 |
| 58-153 | 650 | 520 | 260 | 300 | 176 | Φ31 | Φ42 | 32 | 24 | 206 | 111 | 142 | 231 | Φ7.1 |
| 58-153 | 665 | 455 | 240 | 285 | 165 | Φ31 | Φ42 | 32 | 24 | 206 | 111 | 142 | 231 | Φ6.3 |
| 82-178 | 770 | 615 | 300 | 430 | 265 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 231 | Φ10.0 |
| 82-178 | 770 | 615 | 300 | 430 | 265 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 231 | Φ10.0 |
| 82-178 | 815 | 520 | 260 | 300 | 236 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 231 | Φ7.1 |
| 100-178 | 830 | 615 | 300 | 430 | 265 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 231 | Φ11.2 |
| 100-178 | 830 | 615 | 300 | 430 | 265 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 231 | Φ11.2 |
| 100-178 | 930 | 615 | 300 | 430 | 320 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 231 | Φ10.0 |
| 100-178 | 940 | 520 | 260 | 350 | 205 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 231 | Φ7.1 |
| 100-178 | 1015 | 615 | 300 | 430 | 325 | Φ54 | Φ60 | 48 | 42 | 296 | 156 | 142 | 231 | Φ11.2 |
| Dual speeds | ||||||||||||||
| l-Beam | Unit (mm) | |||||||||||||
| H | A | B | D | E | I | K | L | N | W | U | R | T | Chain | |
| 58-153 | 610 | 545 | 260 | 285 | 165 | Φ31 | Φ34 | 25 | 17 | 206 | 111 | 142 | 276 | Φ6.3 |
| 58-153 | 650 | 582 | 280 | 300 | 176 | Φ31 | Φ42 | 32 | 24 | 206 | 111 | 142 | 276 | Φ7.1 |
| 58-153 | 665 | 545 | 260 | 285 | 165 | Φ31 | Φ42 | 32 | 24 | 206 | 111 | 142 | 276 | Φ6.3 |
| 82-178 | 770 | 670 | 320 | 430 | 265 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 276 | Φ10.0 |
| 82-178 | 770 | 670 | 320 | 430 | 265 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 276 | Φ10.0 |
| 82-178 | 815 | 582 | 280 | 300 | 236 | Φ36 | Φ49 | 40 | 28 | 237 | 127 | 142 | 276 | Φ7.1 |
| 100-178 | 830 | 670 | 320 | 430 | 265 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 315 | Φ11.2 |
| 100-178 | 830 | 670 | 320 | 430 | 265 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 315 | Φ11.2 |
| 100-178 | 930 | 670 | 320 | 430 | 320 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 315 | Φ10.0 |
| 100-178 | 940 | 582 | 280 | 350 | 205 | Φ43 | Φ59 | 48 | 34 | 265 | 140 | 142 | 315 | Φ7.1 |
| 100-178 | 1015 | 670 | 320 | 430 | 325 | Φ54 | Φ60 | 48 | 42 | 296 | 156 | 142 | 315 | Φ11.2 |
