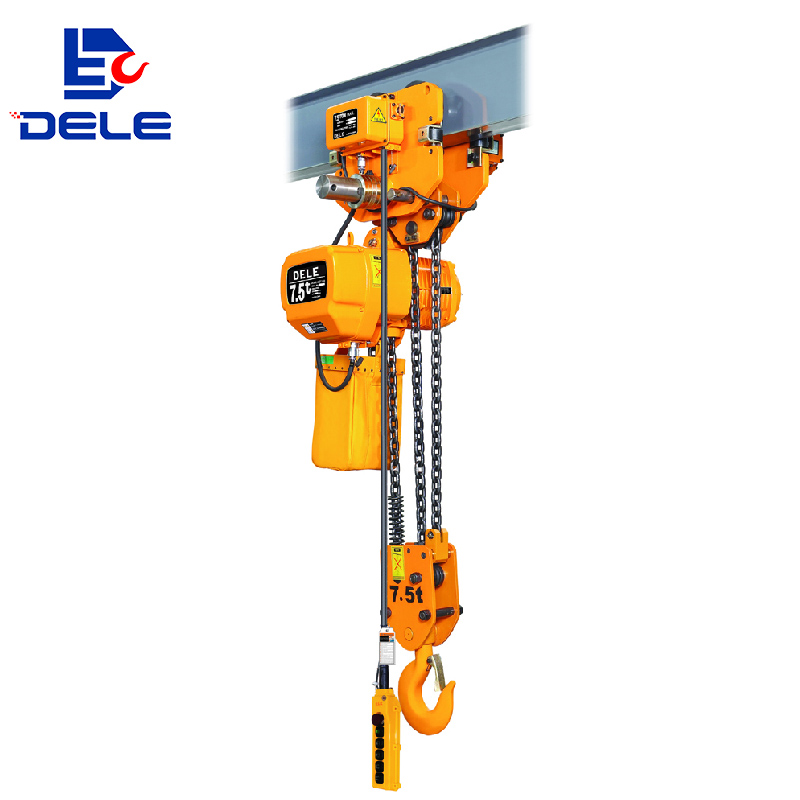

DLEPP ELECTRIC HOIST
7.5TON-25TON HOIST WITH ELECTRIC TROLLEY
●Shell: Light aluminum alloy shell shall be adopted which is light but hard and fit for the use in the terrible work environment with a high heat dissipation rate and all tightness design.
●lnverse phase sequence protecting device: lt is the special electrical installation which control the circuit not to work in case of wiring error in the power supply.
●Limit switch: The limit switch device is installed where the weight is lifted on and off to make the motor to stop automaticallyso as to prohibit the chains from exceeding for safety.
●24V&36V device: it is used to prohibit the emergencies from occurring incase of the leakage in the switch.
●Side magnetic braking device:This deviceshall realize the instant brake in case of the power dump.
●Chain bag: It shall be light, handsome and durable.
●Chain:The chain shali adopt the Japan FEC80 ultra heat-treatable steelalioy chain.
| «Technical Parameters | Single speed | Double speeds | |||||||||
| Model | Capacity (Ton) | Standard Litting Height(m) | Lifting speed(m/min) | Lifting Motor | Trolley Motor | ||||||
| Power(Kw) | Rotation Speed(t/min) | Phases | Voltage | Frequency (Hz/s) | Power(Kw) | Rotation Speed (t/min) | Trolley Speed (m/min) | ||||
| DLEPP-07503S | 7.5 | 3 | 1.8 | 3.0 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| DLEPP-07503SD-SD | 7.5 | 3 | 1.8&0.6 | 3.0&1.0 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| DLEPP-1004S | 10 | 3 | 2.7 | 3.0*2 | 1440 | 3 | 200-600 | 50 | 0.75 | 1440 | 11&21 |
| DLEPP-1004SD-SD | 10 | 3 | 2.7&0.9 | (3.0&1.0)*2 | 2880&960 | 3 | 200-600 | 50 | 0.75&0.18 | 2880&720 | 5&20 |
| DLEPP-1506S | 15 | 3 | 1.8 | 3.0*2 | 1440 | 3 | 200-600 | 50 | 0.75*2 | 1440 | 11 |
| DLEPP-1506SD-SD | 15 | 3 | 1.8&0.6 | (3.0&1.0)*2 | 2880&960 | 3 | 200-600 | 50 | （0.75&0.18）*2 | 2880&720 | 5&20 |
| DLEPP-2008S | 20 | 3 | 1.4 | 3.0*2 | 1440 | 3 | 200-600 | 50 | 0.75*2 | 1440 | 11 |
| DLEPP-2008SD-SD | 20 | 3 | 1.5&0.5 | （3.0&1.0）*2 | 2880&960 | 3 | 200-600 | 50 | （0.75&0.18）*2 | 2880&720 | 5&20 |
| DLEPP-2508S | 25 | 3 | 1.3 | 3.0*2 | 1440 | 3 | 200-600 | 50 | 0.75*2 | 1440 | 11 |
| DLEPP-2508SD-SD | 25 | 3 | 1.2&0.4 | (3.0&1.0)*2 | 2880&960 | 3 | 200-600 | 50 | （0.75&0.18）*2 | 2880&720 | 5&20 |

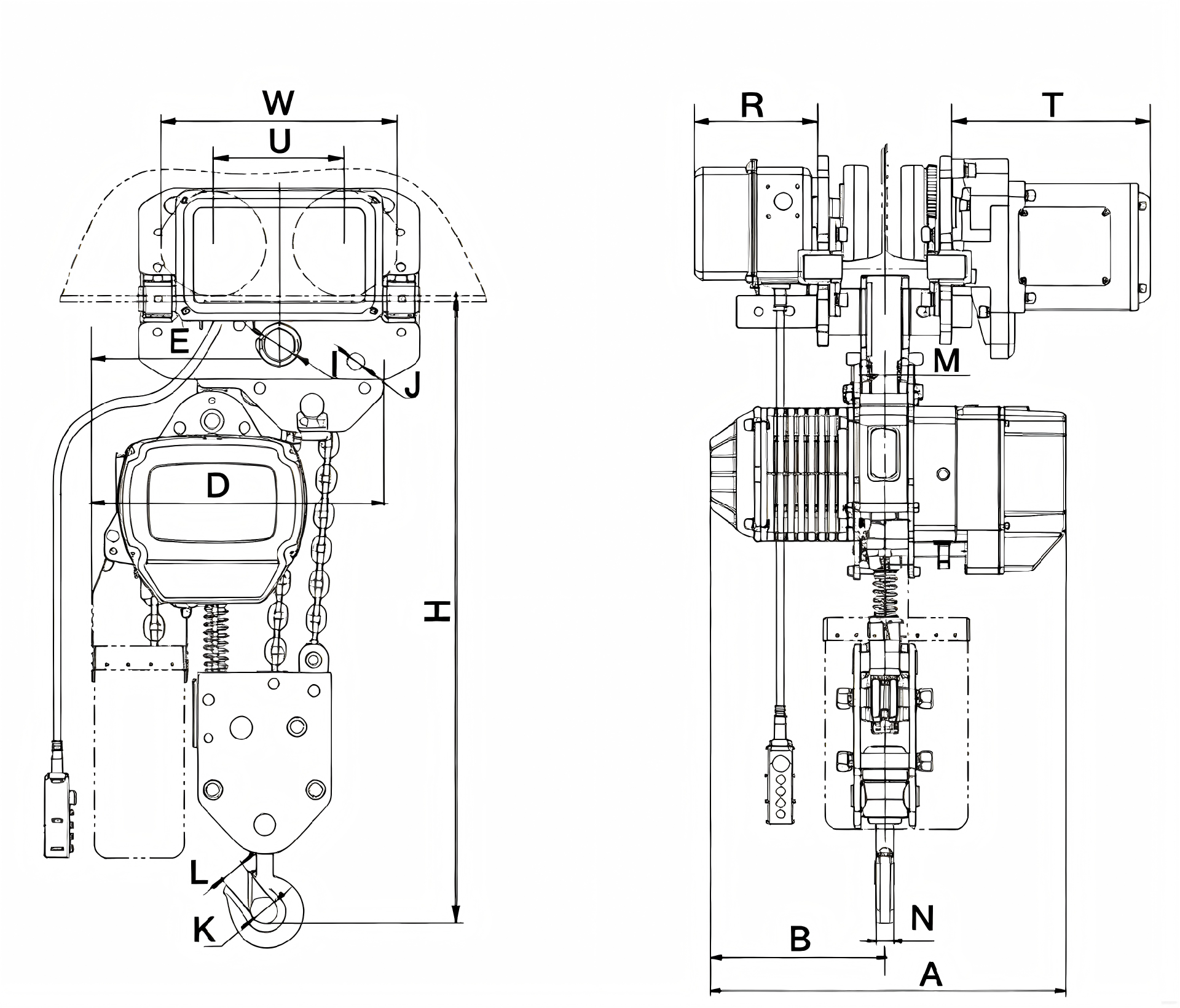

| l-Beam | Unit (mm) | |||||||||||||||
| H | A | B | D | E | I | J | K | L | M | N | W/P | U/Q | R | T | Chain | |
| 100-178 | 1200 | 615 | 295 | 505 | 320 | Φ54 | Φ31 | Φ85 | 65 | 85 | 60 | 295 | 156 | 142 | 231 | Φ11.2 |
| 100-178 | 1200 | 670 | 320 | 505 | 320 | Φ54 | Φ31 | Φ85 | 65 | 85 | 60 | 295 | 156 | 142 | 315 | Φ11.2 |
| 150-220 | 1190 | 630 | 315 | / | 890 | Φ70 | Φ36 | Φ85 | 70 | 85 | 60 | 366 | 191 | 231 | 142 | Φ11.2 |
| 150-220 | 1190 | 700 | 350 | / | 890 | Φ70 | Φ36 | Φ85 | 70 | 85 | 60 | 366 | 191 | 315 | 142 | Φ11.2 |
| 150-220 | 1310 | 630 | 315 | 1070 | 535 | Φ54 | Φ54 | Φ120 | 96 | 90 | 78 | 856 | 560 | 142 | 231 | Φ11.2 |
| 150-220 | 1310 | 700 | 350 | 1070 | 535 | Φ54 | Φ54 | Φ120 | 96 | 90 | 78 | 856 | 560 | 142 | 315 | Φ11.2 |
| 150-220 | 1470 | 630 | 315 | 1320 | 660 | Φ70 | Φ70 | Φ150 | 115 | 94 | 95 | 1106 | 740 | 142 | 231 | Φ11.2 |
| 150-220 | 1470 | 670 | 388 | 1320 | 660 | Φ70 | Φ70 | Φ150 | 115 | 94 | 95 | 1106 | 740 | 142 | 315 | Φ11.2 |
| 150-220 | 1470 | 630 | 315 | 1320 | 660 | Φ70 | Φ70 | Φ150 | 115 | 94 | 95 | 1106 | 740 | 142 | 231 | Φ11.2 |
| 150-220 | 1470 | 670 | 388 | 1320 | 660 | Φ70 | Φ70 | Φ150 | 115 | 94 | 95 | 1106 | 740 | 142 | 315 | Φ11.2 |
